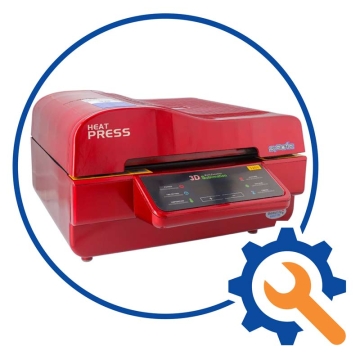

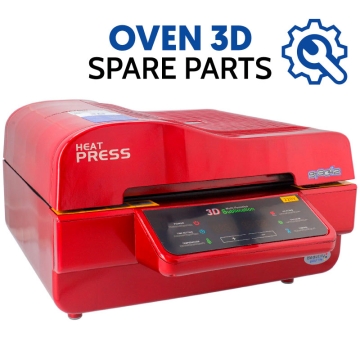

3D sublimation machine for heat transfer printing.
Vacuum system, by membrane or moulds, to provide the necessary pressure for the transfer. You can also transfer without vacuum, only with heat, which requires the use of wraps.
Can sublimate up to 12 mugs (11 oz) at once
Includes 3 silicone wraps, 1 pair of gloves and replacements for the membrane, a resistant hose and a rubber sealing strip
Optional vacuum moulds can be purchased to customise latte cups, beer steins and shot glasses
2 ways of use: (1) vacuum heat, which presses the printed paper onto the object or (2) only heat, which requires the use of wraps
Tray dimensions: 42 x 29 cm (vacuum) and 44 x 31 cm (heat)
Large bottom tray to personalise mugs, tumblers or similar objects
Includes an air filter for vacuum
Pressure gauge with automatic pressure regulation
Digital time and temperature (ºC/ºF) control panel
Sturdy compact structure made of aluminium and iron
CE marking which guarantees that this oven meets the technical requirements of the European Union
THINGS TO KEEP IN MIND
The colour of the oven may vary between maroon, black and silver, depending on the availability
The air filter requires periodic maintenance because it fills with water when printing. The piece must be cleaned and the filter inside must be replaced
The bottom tray sublimates using only heat, so it requires the use of clamps, silicone sheets or shrink bags, depending on the object
Special vacuum moulds can also be used. Just connect the rubber hose to the mould
To use the lower tray you must remove the upper tray and disconnect the vacuum hose (rubber tube)
Items made of plastic or similar materials need a mould or jig to avoid deformation during the sublimation process
https://www.brildor.com/en/3d-sublimation-vacuum-oven-heat-press-replacement-pieces44926Vacuum Oven 42x29 for Sublimation<p><a name="know-more"></a></p>
<h2>More information about the Vacuum Oven 42x29 for Sublimation</h2>
<p> </p>
<p><strong>INDEX</strong></p>
<p>> <a href="#know-more1">Description</a></p>
<p>> <a href="#know-more2">Things to keep in mind</a></p>
<p>> <a href="#know-more6">User manual</a></p>
<p>> <a href="#know-more3">What does this oven include?</a></p>
<p>> <a href="#know-more8">Additional moulds</a></p>
<p>> <a href="#know-more4">Technical details</a></p>
<p>> <a href="#know-more5">How to use the vacuum membrane</a></p>
<p>> <a href="#know-more9">Oven dimensions</a></p>
<p> </p>
<p><a name="know-more1"></a></p>
<p><strong>DESCRIPTION</strong></p>
<ul>
<li>2 ways of use: (1) <strong>vacuum heat</strong>, which presses the printed paper onto the object or (2) <strong>only heat</strong>, which requires the use of wraps<strong><br></strong></li>
<li>Tray dimensions: <span class="azul-negrita">42 x 29 cm</span> (vacuum) and <span class="azul-negrita">44 x 31 cm</span> (heat)</li>
<li>Large bottom tray to personalise mugs, tumblers or similar objects</li>
<li>Includes an air filter for vacuum</li>
<li>Pressure gauge with automatic pressure regulation</li>
<li>Digital time and temperature (ºC/ºF) control panel</li>
<li>Sturdy compact structure made of aluminium and iron</li>
<li>CE marking which guarantees that this oven meets the technical requirements of the European Union</li>
</ul>
<p> </p>
<p><a name="know-more2"></a></p>
<p><strong>THINGS TO KEEP IN MIND</strong></p>
<ul>
<li>The colour of the oven may vary between maroon, black and silver, depending on the availability</li>
<li>The air filter requires <strong>periodic maintenance</strong> because it fills with water when printing. The piece must be cleaned and the filter inside must be replaced</li>
<li>The bottom tray sublimates using only heat, so it requires the use of clamps, silicone sheets or shrink bags, depending on the object</li>
<li>Special vacuum moulds can also be used. Just connect the rubber hose to the mould</li>
<li>To use the lower tray you must remove the upper tray and disconnect the vacuum hose (rubber tube)</li>
<li>Items made of plastic or similar materials need a mould or jig to avoid deformation during the sublimation process</li>
</ul>
<p> </p>
<p><a name="know-more6"></a></p>
<p><strong>USER MANUAL<br></strong></p>
<p><a title="Instructions for the sublimation oven (.pdf - 6.38 MB)" href="https://www.brildor.com/media/upload/downloads/Inslatallation_Operating_Instructions_3D_Sublimation_Oven_EN.pdf" target="_blank" rel="nofollow noopener">Instructions for the sublimation oven (.pdf - 6.38 MB)</a></p>
<p> </p>
<p><a name="know-more3"></a></p>
<p><strong>WHAT DOES THIS OVEN INCLUDE?</strong></p>
<table>
<tbody>
<tr>
<td><span class="azul-negrita">3</span></td>
<td>Silicone mug wrap</td>
</tr>
<tr>
<td><span class="azul-negrita">1</span></td>
<td>Replacement membrane</td>
</tr>
<tr>
<td><span class="azul-negrita">1</span></td>
<td>Replacement vacuum hose</td>
</tr>
<tr>
<td><span class="azul-negrita">1</span></td>
<td>Replacement sealing strip</td>
</tr>
<tr>
<td><span class="azul-negrita">1</span></td>
<td>Pair of protective gloves</td>
</tr>
</tbody>
</table>
<p> </p>
<p><a name="know-more8"></a></p>
<p><strong>ADDITIONAL MOULDS<br></strong></p>
<ul>
<li>Accessories for customising different items with a <strong>vacuum</strong> oven</li>
<li>They have a tube or hooking mechanism to insert the silicone tube into the oven</li>
</ul>
<table>
<tbody>
<tr>
<td style="text-align: center; vertical-align: middle;"><strong>Reference no</strong></td>
<td style="text-align: center; vertical-align: middle;"><strong>Printable item</strong></td>
<td style="text-align: center; vertical-align: middle;"><strong>Dimensions</strong></td>
<td style="text-align: center; vertical-align: middle;"><strong>Material</strong></td>
<td style="text-align: center; vertical-align: middle;"><strong>Notes</strong></td>
</tr>
<tr>
<td style="text-align: center; vertical-align: middle;">032309</td>
<td style="text-align: center; vertical-align: middle;">
<p>Latte mugs and<br>beer steins</p>
</td>
<td style="text-align: center; vertical-align: middle;"><span class="azul-negrita">14.5 x 11 x 17.5 cm</span></td>
<td style="text-align: center; vertical-align: middle;">Blue silicone</td>
<td style="text-align: center; vertical-align: middle;">
<p>Allows you to personalise the handle, base<br>and inside of mugs and steins<br>prepared for sublimation.<br>Silicone lid</p>
</td>
</tr>
<tr>
<td style="text-align: center; vertical-align: middle;">027680</td>
<td style="text-align: center; vertical-align: middle;">7 shot glasses</td>
<td style="text-align: center; vertical-align: middle;"><span class="azul-negrita">13.6 x 7 x 2 cm</span></td>
<td style="text-align: center; vertical-align: middle;">Plastic and blue rubber</td>
<td style="text-align: center; vertical-align: middle;">Glass lid</td>
</tr>
</tbody>
</table>
<p> </p>
<p><a name="know-more4"></a></p>
<p><strong>TECHNICAL DETAILS</strong></p>
<table>
<tbody>
<tr>
<td>Temperature range</td>
<td class="azul-negrita">50-200ºC</td>
</tr>
<tr>
<td>Time range</td>
<td class="azul-negrita">0-20 min</td>
</tr>
<tr>
<td>Power</td>
<td class="azul-negrita">2900 W</td>
</tr>
<tr>
<td>Voltage</td>
<td><span class="azul-negrita">120-220 V</span> / <span class="azul-negrita">50-60 Hz<br></span></td>
</tr>
</tbody>
</table>
<p> </p>
<p><a name="know-more5"></a></p>
<p><strong>HOW TO USE THE VACUUM MEMBRANE</strong></p>
<ul>
<li>Prepare the item for sublimation</li>
<li>Open the oven and lift the membrane by opening the flap</li>
<li>Place the item on the tray and cover it with protective paper to avoid damaging the membrane</li>
<li>Lower the membrane and close it with the flap</li>
<li>Press the vacuum button to shrink the membrane. Check that there is no air left in the printing area</li>
<li>Close the oven and sublimate</li>
<li>Open the oven and lift the membrane</li>
<li>With the help of a protective glove, remove the finished sublimated item</li>
</ul>
<p> </p>
<p><a name="know-more9"></a></p>
<p><strong>OVEN DIMENSIONS</strong></p>
<table>
<tbody>
<tr>
<td><strong>3D oven<br></strong></td>
<td><span class="azul-negrita">47 x 30.5 x 58.5 cm</span></td>
</tr>
<tr>
<td><strong>Top tray</strong></td>
<td><span class="azul-negrita">44 x 30.5 x 2.5 cm</span></td>
</tr>
<tr>
<td><strong>Bottom tray</strong></td>
<td><span class="azul-negrita">44 x 31.5 x 8 cm</span></td>
</tr>
<tr>
<td><strong>Clamp</strong></td>
<td><span class="azul-negrita">21 x 13 cm</span></td>
</tr>
<tr>
<td><strong>Oven weight</strong></td>
<td><span class="azul-negrita">24 kg</span></td>
</tr>
</tbody>
</table>
<p> </p>
