€229.00
VAT not included
/ Each Unit

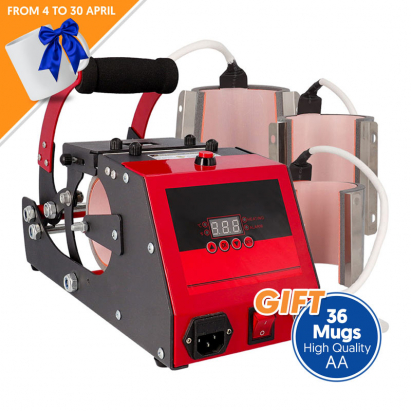

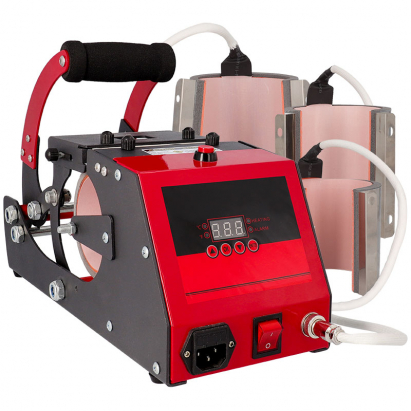

4-in-1 Mug Press Brildor XH-T4
Transfer press with 4 interchangeable heating elements for customising cylindrical and conical items such as mugs, glasses, bottles, jugs...
Manual opening and closing
Includes 4 interchangeable heating elements: 3 cylindrical and 1 conical
Digital time and temperature controller with acoustic alarm
More information
Availability:
Immediate:
6 units Expected entries:
28/11/24:
8 units 22/12/24:
4 units 25/02/25:
10 units
Our availability is not enough?
Let us know how much you need
I WANT MORE
More information about the 4-in-1 Mug Press Brildor XH-T4
INDEX
Press
> Description
> Things to keep in mind
> Manual
> Technical data
> Press dimensions
Heating elements
> Description
> Technical data
> Warranty
BRILDOR XH-T4 4-IN-1 MUG PRESS
DESCRIPTION
Programmable idle temperature that keeps the heating element at a preset temperature between presses
Temperature change button to switch from preheating mode to idle mode
Screw with thread that stops at the base of the mug to easily centre it in the heating element
Manual pressure adjustment via wheel
Very sturdy metal structure
CE and RoHs certification in compliance with EU quality and safety standards
Small and portable, ideal for small workspaces
THINGS TO KEEP IN MIND
This press is only compatible with XH-T4 heating elements. Installing other types of heating elements in this press may cause irreparable damage
MANUAL
4-in-1 Mug Press Instructions Manual XH-T4 (.pdf - 0.353 MB)
TECHNICAL DATA
Model Brildor XH-T4
Type of press Manual/Mugs
Controller Digital Pid
Voltage (V) 220
Power (W) 320
Temperature range (ºC / ºF) 0-232 / 0-450
Timer (s) 0 -999
PRESS DIMENSIONS
Press (cm) 16 x 24.5 x 36
Packaging (cm) 21 x 23 x 41.5
Press weight (kg) 4.5
Gross weight (kg) 5
INTERCHANGEABLE HEATING ELEMENTS
DESCRIPTION
Heating elements with silicone pad interior to adapt and not damage the material's surface
3rd generation male connectors
These heating elements are only compatible with the Brildor XH-T4 mug press. Installing these heating elements in other heat presses may cause irreparable damage
TECHNICAL DATA
Shape Type A B Maximum diameter Minimum diameter Weight Ref. example of use
Cylindrical
6 oz 18.5 11.6 Ø7.5 Ø6.5 353 924644
Cylindrical
10 oz 20.5 9.5 Ø8 Ø7 303 943649
Cylindrical
11 oz 23 11.5 Ø8.5 Ø7.5 334 919477
Shape Type A B C Maximum diameter Minimum diameter Weight Ref. example
Conical
12 oz
17
12
23.5
Top:Ø6
Top:Ø5.5
367
928052
Measurements and usage suggestions are indicative. Testing is recommended
WARRANTY
Press: 1 year
Heating elements: 3 months
The period starts from the invoice date.
More Information
Ref.
041294
Billable Weight (kg)
5.5000
Brand
Brildor
Power (W)
320
