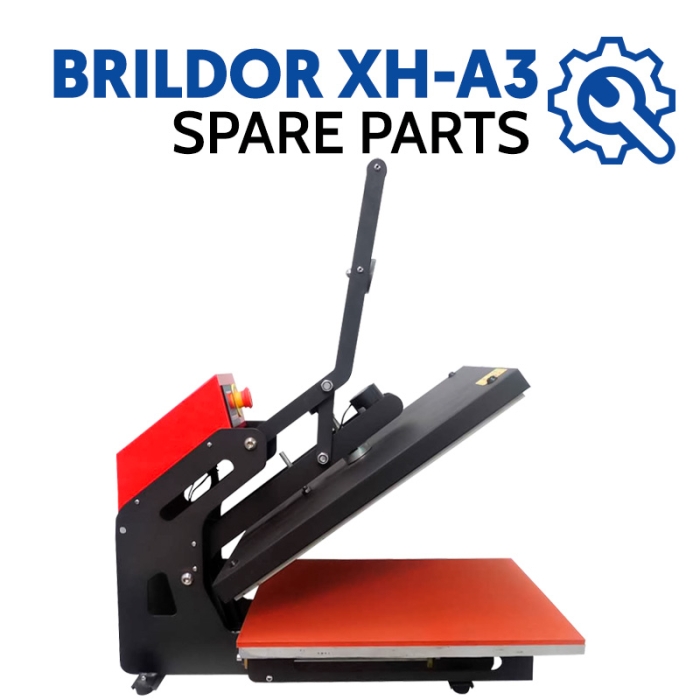

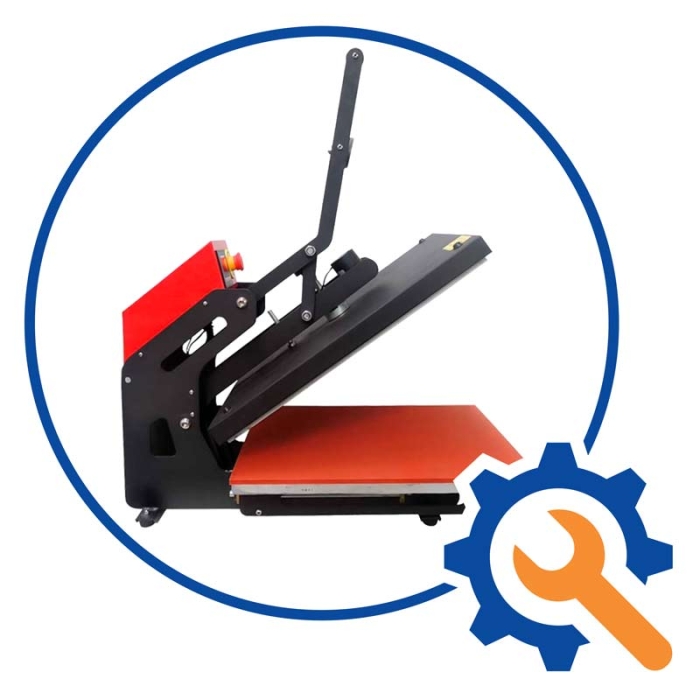

Replacements for Brildor XH-A3 Magnetic Presses
Accessories and spare parts for the Brildor XH-A3 magnetic transfer presses of 38 x 38 cm and 40 x 50 cm, now discontinued (Ref. 032584, Ref. 032585).
More information
Our availability is not enough?
Let us know how much you need
I WANT MORE
More information about the Accessories and Replacements for Brildor XH-A3 Magnetic Presses
INDEX
> Description of the spare parts
> Exploded view
> Warranty
DESCRIPTION OF THE SPARE PARTS
Interchangeable plates
- Made of cast aluminium
- Silicone pad
- To adapt the plates, unscrew the adapter and screw the plate to the press using the same screws
| Reference |
Type |
Metal Base (cm)
|
Base + Pad (cm)
|
| 036186 |
Flat |
12 x 12 x 2
|
12 x 12 x 3
|
| 036187 |
Flat |
18 x 38 x 2
|
18 x 38 x 3
|
| 036188 |
Flat |
12 x 45 x 2
|
12 x 45 x 3
|
| 036189 |
Flat |
30 x 35 x 2
|
30 x 35 x 3
|
| 036190 |
Shoes |
14 x 34 x 2
|
14 x 34 x 3
|
Proximity sensor
Ref. 034638
Dimensions: 15 x 63.5 cm
Shock absorber
Ref. 038131
Metal piece. Dimensions: Ø3 x 27.5 cm
Emergency stop button
Ref. 035287
Made with high-quality silicone. Dimensions: 45 x 32.5 cm.
Electromagnet
Ref. 048761
Measurements: Ø5 x 3.5 cm
Cable: 103 cm
EXPLODED VIEW
Brildor XH-A3 magnetic presses manual
WARRANTY
Spare parts: 3 months
Press: 1 year
The period starts from the invoice date.
