Hot air oven for sublimation. Customise all types of products, including curved ones like plates or shin guards. Optional vacuum system for making heat transfers with a pressure membrane.
Compact and lightweight, easily transportable
Suction pump and membrane included in the vacuum system

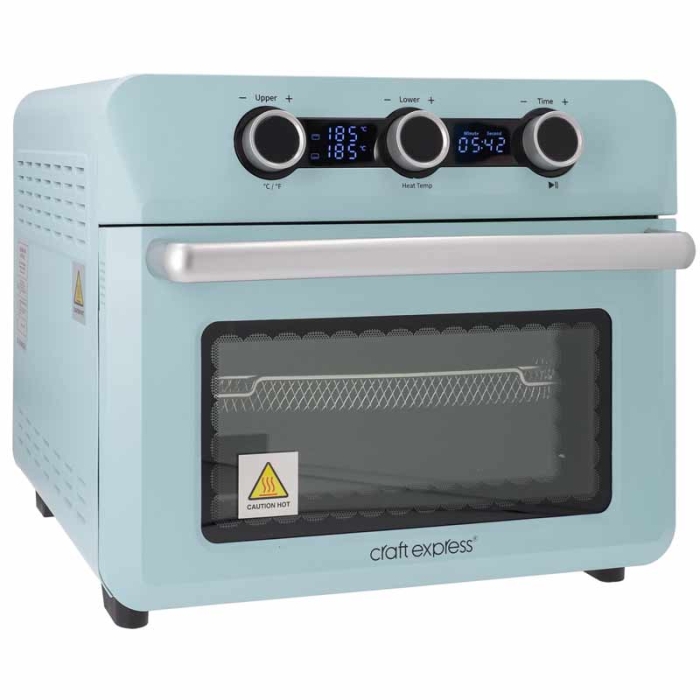

https://www.brildor.com/en/air-vacuum-sublimation-oven-craft-express-25l53171Air/Vacuum Sublimation Oven - Craft Express 25L <p><a name="know-more"></a></p>
<h2>More information about the Air/Vacuum Sublimation Oven - Craft Express 25L</h2>
<p> </p>
<p><strong>INDEX</strong></p>
<p>> <a href="#know-more1">Craft Express 25L Oven</a></p>
<p>> <a href="#know-more0">Things to keep in mind</a></p>
<p>> <a href="#know-more6">What does the Craft Express 25L Oven include?</a></p>
<p>> <a href="#know-more2">Vacuum system</a></p>
<p>> <a href="#know-more0">What does the vacuum system include?</a></p>
<p>> <a href="#know-more5">User manual</a></p>
<p>> <a href="#know-more3">Control panel usage instructions</a></p>
<p>> <a href="#know-more7">Vacuum system installation instructions</a></p>
<p>> <a href="#know-more4">Technical data</a></p>
<p> </p>
<p class="enlace"><a id="know-more1"></a> </p>

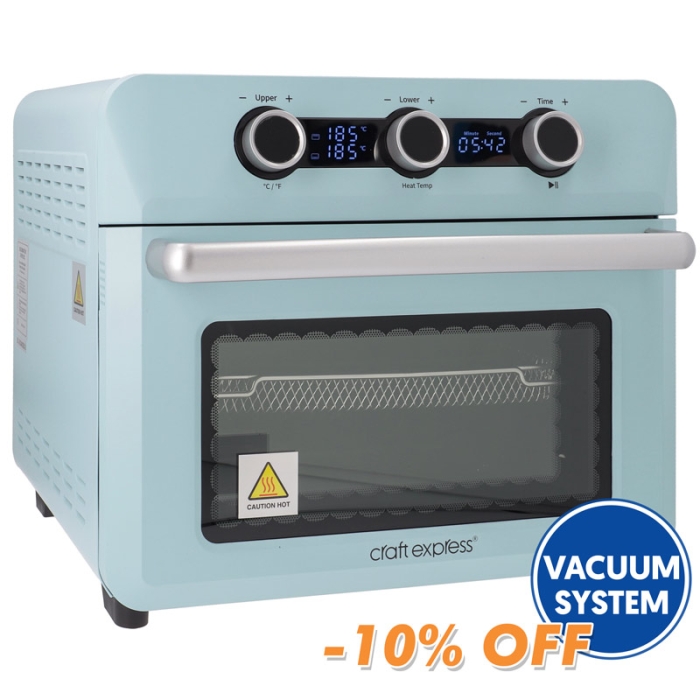

<p><strong>CRAFT EXPRESS 25L OVEN<br></strong></p>
<ul>
<li><strong>2 usage modes:</strong> perform transfers with heat only or combine vacuum and heat with available accessories:<br>
<ul>
<li>Heat: uses hot air ventilation along with shrink bags or wraps for sublimation</li>
<li>Vacuum and heat: by extracting air with the pump, the membrane presses the paper and conforms to the object's curves</li>
</ul>
</li>
<li><strong>360º air circulation system:</strong> 4 heating tubes and a fan ensure even heat distribution and quick heating time</li>
<li><strong>Digital control panel:</strong> easily adjust time and temperature by turning the knobs. <a href="#know-more3">See the usage instructions</a> to learn how to use it</li>
<li><strong>Double tempered glass window:</strong> allows you to observe the sublimation progress without opening the oven</li>
<li><strong>Sturdy and stable structure:</strong> with rubber feet to prevent sliding and protect the surface from possible scratches</li>
<li><strong>Capacity:</strong> sublimates up to 4 <span class="azul-negrita">11 oz</span> mugs at once. Allows customisation from mugs to tall glasses, bottles, and thermoses by adjusting the tray height</li>
<li><strong>Warranty:</strong> 1 year for manufacturing defects</li>
<li><strong>CE certification:</strong> ensures this oven meets the technical requirements demanded in the European Union</li>
<li><strong>IEC Class I protection:</strong> ensures electrical safety through grounding and protection against electric shocks</li>
</ul>
<p> </p>
<p class="enlace"><a id="know-more0"></a> </p>
<p><strong>THINGS TO KEEP IN MIND</strong></p>
<ul>
<li>The oven must be connected to a socket with grounding protection and a voltage stabiliser</li>
<li>Between processes, you can leave the air running to maintain the oven's temperature and reduce working time</li>
<li>It is recommended to set the same temperature for the oven's lower and upper tubes</li>
</ul>
<p> </p>
<p class="enlace"><a id="know-more0"></a> </p>
<p><strong>WHAT DOES THE CRAFT EXPRESS 25L OVEN INCLUDE?<br></strong></p>
<table>
<tbody>
<tr>
<td><span class="azul-negrita">1</span></td>
<td>Metal tray</td>
</tr>
<tr>
<td><span class="azul-negrita">1</span></td>
<td>Lower tray for collecting residues</td>
</tr>
<tr>
<td><span class="azul-negrita">1</span></td>
<td>Oven mitt</td>
</tr>
<tr>
<td><span class="azul-negrita">1</span></td>
<td>User manual</td>
</tr>
</tbody>
</table>
<p> </p>
<p class="enlace"><a id="know-more2"></a> </p>
<p><strong>VACUUM SYSTEM<br></strong></p>
<ul>
<li>Additional accessory consisting of a tray with membrane and air suction pump</li>
<li>Installed by drilling the back of the oven with a drill and connecting the tube to the pump. <a href="#know-more7">See installation instructions</a></li>
<li>Can be easily removed to use the oven with heat function only</li>
<li>Ideal for customising curved products such as shin guards, phone cases, decorative plates, photo panels...</li>
</ul>
<p> </p>
<p class="enlace"><a id="know-more6"></a> </p>
<p><strong>WHAT DOES THE VACUUM SYSTEM INCLUDE?<br></strong></p>
<table>
<tbody>
<tr>
<td><span class="azul-negrita">1</span></td>
<td>Metal base for the tray</td>
</tr>
<tr>
<td><span class="azul-negrita">1</span></td>
<td>Tray with membrane</td>
</tr>
<tr>
<td><span class="azul-negrita">1</span></td>
<td>Air suction pump</td>
</tr>
<tr>
<td><span class="azul-negrita">1<br></span></td>
<td>Paper template for installation</td>
</tr>
<tr>
<td><span class="azul-negrita">1<br></span></td>
<td><span class="azul-negrita">13 mm</span> drill bit + wrench</td>
</tr>
<tr>
<td><span class="azul-negrita">1<br></span></td>
<td>Paper punch</td>
</tr>
<tr>
<td><span class="azul-negrita">1<br></span></td>
<td>Suction valve for oven</td>
</tr>
<tr>
<td><span class="azul-negrita">2<br></span></td>
<td>Suction tubes or hoses</td>
</tr>
<tr>
<td><span class="azul-negrita">1<br></span></td>
<td>Air filter</td>
</tr>
<tr>
<td><span class="azul-negrita">2<br></span></td>
<td>Silicone rings for the tray edges</td>
</tr>
<tr>
<td><span class="azul-negrita">2<br></span></td>
<td>Large size cloths</td>
</tr>
<tr>
<td><span class="azul-negrita">1<br></span></td>
<td>Small size cloth</td>
</tr>
<tr>
<td><span class="azul-negrita">1<br></span></td>
<td>Silicone sheet</td>
</tr>
<tr>
<td><span class="azul-negrita">1<br></span></td>
<td>Clamp for the suction valve</td>
</tr>
<tr>
<td><span class="azul-negrita">1<br></span></td>
<td>Screwdriver</td>
</tr>
<tr>
<td><span class="azul-negrita">2<br></span></td>
<td>Rubber plugs</td>
</tr>
<tr>
<td><span class="azul-negrita">1</span></td>
<td>User manual</td>
</tr>
</tbody>
</table>
<p> </p>
<p class="enlace"><a id="know-more5"></a> </p>
<p><strong>USER MANUAL</strong></p>
<p><a href="https://tinyurl.com/282ev4qn" target="_blank" rel="noopener">Elite 25L Craft Express Sublimation Oven Manual (.pdf - 0.23 MB)</a></p>
<p> </p>
<p class="enlace"><a id="know-more3"></a> </p>
<p><strong>CONTROL PANEL USAGE INSTRUCTIONS</strong></p>
<ul>
<li>Turn the oven on or off by holding the <span class="azul-negrita">3</span><strong><span class="azul-negrita"> seconds</span> </strong>the "<strong>Time/Play pause</strong>" knob</li>
<li>Adjust the temperature of the upper tubes by turning the "<strong>Upper</strong>" knob and the temperature of the lower tubes by turning the "<strong>Lower</strong>" knob</li>
<li>Change the temperature units by holding the "<strong>°C / °F</strong>" knob for <span class="azul-negrita">3 seconds</span></li>
<li>Adjust the sublimation time by turning the "<strong>Time</strong>" knob</li>
<li>After setting the parameters, press the "<strong>Time/Play pause</strong>" knob to start heating the oven</li>
<li>The heating indicator will flash while heating</li>
<li>It will emit a sound alert when it reaches the set temperature and will start a <span class="azul-negrita">5-second</span> countdown</li>
<li>It will sound again when the sublimation process is complete</li>
<li>Check the oven temperature during heating by holding the "<strong>Lower/Heat Temp</strong>" knob</li>
<li>You can stop the heating process and countdown by pressing the "<strong>Time/Play pause</strong>" knob</li>
</ul>
<p> </p>
<p class="enlace"><a id="know-more7"></a> </p>
<p><strong>VACUUM SYSTEM INSTALLATION INSTRUCTIONS<br></strong></p>
<ol>
<li>Align the paper template on the back of the oven and mark the centre with a permanent marker</li>
<li>Place the <span class="azul-negrita">13 mm</span> drill bit in your drill and make a hole at the mark</li>
<li>Insert the suction valve into the hole</li>
<li>Secure the suction hose with a clamp, using the screwdriver</li>
<li>Connect the vacuum pump hose and the hose from the back of the oven using the filter</li>
</ol>
<p> </p>
<p class="enlace"><a id="know-more0"></a> </p>
<p><strong>TECHNICAL DATA<br></strong></p>
<table>
<tbody>
<tr>
<td colspan="2"><strong>CRAFT EXPRESS 25L OVEN</strong><span class="azul-negrita"><br></span></td>
</tr>
<tr>
<td><strong>Voltage (V)</strong></td>
<td><span class="azul-negrita">220, 50/60 Hz</span></td>
</tr>
<tr>
<td><strong>Power (W)</strong></td>
<td><span class="azul-negrita">1600</span></td>
</tr>
<tr>
<td><strong>Time range (min)</strong></td>
<td><span class="azul-negrita">1 - 60</span></td>
</tr>
<tr>
<td><strong>Temperature range (°C | °F)</strong></td>
<td><span class="azul-negrita">60 - 230º</span> |<span class="azul-negrita"> 140 - 446º</span></td>
</tr>
<tr>
<td><strong>Capacity (L)</strong></td>
<td><span class="azul-negrita">25<br></span></td>
</tr>
<tr>
<td colspan="2"><strong>DIMENSIONS</strong><span class="azul-negrita"><br></span></td>
</tr>
<tr>
<td><strong>Oven (cm)<br></strong></td>
<td><span class="azul-negrita">43 x 41.3 x 35.8<br></span></td>
</tr>
<tr>
<td><strong>Oven interior (cm)<br></strong></td>
<td><span class="azul-negrita">33.5 x 31 x 19.5<br></span></td>
</tr>
<tr>
<td><strong>Tray (cm)<br></strong></td>
<td><span class="azul-negrita">33.5 x 31 x 3.5<br></span></td>
</tr>
<tr>
<td><strong>Packaging (cm)<br></strong></td>
<td><span class="azul-negrita">51 x 47 x 44<br></span></td>
</tr>
<tr>
<td><strong>Net weight (kg)<br></strong></td>
<td><span class="azul-negrita">8.6<br></span></td>
</tr>
<tr>
<td><strong>Gross weight (kg)<br></strong></td>
<td><span class="azul-negrita">11.3<br></span></td>
</tr>
<tr>
<td colspan="2"><strong>VACUUM SYSTEM</strong><span class="azul-negrita"><br></span></td>
</tr>
<tr>
<td><strong>Voltage (V)<br></strong></td>
<td><strong><span class="azul-negrita">220, 50-60 HZ</span><br></strong></td>
</tr>
<tr>
<td><strong>Power (W)</strong></td>
<td><strong><span class="azul-negrita">80 ± 5%</span><br></strong></td>
</tr>
<tr>
<td colspan="2"><strong>DIMENSIONS</strong><strong><br></strong></td>
</tr>
<tr>
<td><strong>Suction pump (cm)<br></strong></td>
<td><strong><span class="azul-negrita">20 x 13.5 x 18.5</span><br></strong></td>
</tr>
<tr>
<td><strong>Vacuum tray (cm)<br></strong></td>
<td><span class="azul-negrita"><strong>33.5 x 30 x 4.5</strong></span></td>
</tr>
<tr>
<td><strong>Tray base (cm)<br></strong></td>
<td><strong><span class="azul-negrita">25.5 x 32 x 7.5</span><br></strong></td>
</tr>
<tr>
<td><strong>Packaging (cm)<br></strong></td>
<td><strong><span class="azul-negrita">38 x 35.5 x 29<br></span></strong></td>
</tr>
<tr>
<td><strong>Suction pump weight (kg)<br></strong></td>
<td><strong><span class="azul-negrita">3.16<br></span></strong></td>
</tr>
<tr>
<td><strong>Vacuum tray weight (kg)<br></strong></td>
<td><strong><span class="azul-negrita">2.36<br></span></strong></td>
</tr>
<tr>
<td><strong>Gross weight (kg)<br></strong></td>
<td><strong><span class="azul-negrita">8.49<br></span></strong></td>
</tr>
</tbody>
</table>https://www.brildor.com/media/catalog/product/h/o/horno-sublimaci_n-25l-craft-express-y-accesorios-d1_1.jpg290instock0290000https://www.brildor.com/media/catalog/product/h/o/horno-sublimaci_n-25l-craft-express-y-accesorios-d1_1.jpg20392255802604026145428864885549451524845315553270/Heat Presses/Heat Presses/Heat Presses & Ovens/Sublimation Ovens/Heat Presses/Heat Presses & Ovens2024-11-19T08:08:17+0000
