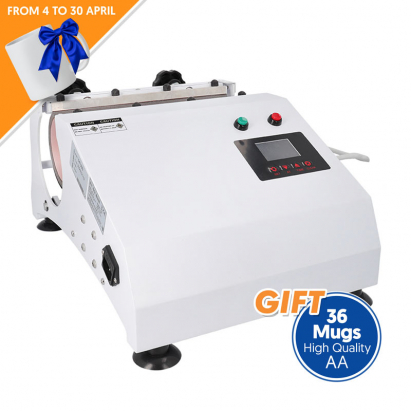

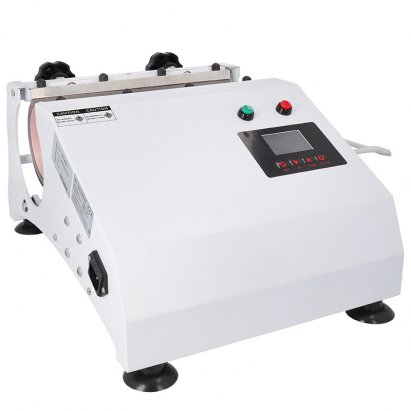

Automatic Press for Cylindrical Objects Brildor XH-T300

Transfer press for customising cylindrical objects up to 27 cm in length.

Automatic opening and closing
Includes a long cylindrical heater of 11 oz, which can be replaced with others that you can purchase separately
Digital time and temperature controller with an acoustic alarm

More information

Availability:

Shown on each product

XH-T300 Press Ref: 041299

Automatic Heat Press for Cylindrical Objects Brildor XH-T300

€349.00 VAT not included / Each Unit

Availability Immediate: 13 units
Expected entries:
28/11/24: 6 units

Cylindrical resistance 2.5oz Ref: 041300

Cylindrical Resistance 2.5oz for Brildor XH Mug Press

€57.50 VAT not included / Each Unit

Availability Immediate: 4 units

Cylindrical resistance 6-9oz Ref: 041301

Cylindrical Resistance 6-9oz for Brildor XH Mug Press

€57.50 VAT not included / Each Unit

Availability Immediate: 3 units
Expected entries:
22/12/24: 10 units

Cylindrical resistance 11oz Ref: 049120

Cylindrical Resistance 11oz for XH-T4 Mug Press

€39.90 VAT not included / Each Unit

Availability Immediate: 0 units
Expected entries:
28/11/24: 2 units
22/12/24: 2 units

Cylindrical resistance 15oz Ref: 041302

Cylindrical Resistance 15oz for Brildor XH Mug Press

€62.90 VAT not included / Each Unit

Availability Immediate: 5 units

Conical resistance 12oz Ref: 041303

Conical Resistance 12oz for Brildor XH Mug Press

€45.89 VAT not included / Each Unit

Availability Immediate: 1 units
Expected entries:
28/11/24: 1 units

Conical resistance 17oz Ref: 041304

Conical Resistance 17oz for Brildor XH Mug Press

€45.89 VAT not included / Each Unit

Availability Immediate: 4 units
Expected entries:
28/11/24: 6 units

View Price

VAT not included

Skip to the end of the images gallery

Skip to the beginning of the images gallery

More information about the Automatic Press for Cylindrical Objects Brildor XH-T300

INDEX

> Description

> Things to keep in mind

> Manual

> Precautions

> Technical data

> Interchangeable heating elements

> Heat press dimensions

> Included heating element dimensions

> Optional heating element dimensions

> Warranty

DESCRIPTION

Pressure adjustment via 2 adjustable wheels up to 3 cm for more specific application values
Sturdy structure with suction cups on the base
CE and Rohs certification in compliance with EU quality and safety standards

THINGS TO KEEP IN MIND

To customise cylindrical mugs of 11 oz, it is recommended to use the heating element Ref. 049120

MANUAL

Instruction Manual for Brildor XH-T300 Automatic Heat Press for Cylindrical Objects (.pdf - 0.655 MB)

PRECAUTIONS

Check the voltage before using the machine
Keep children away from the heat press
Turn off the machine when not in use
Avoid touching the heating element when it is hot
Avoid placing products that are not suitable for the heating element
Set the temperature to a maximum of 232 ºC. Exceeding this temperature may cause overheating
Maintain the heat press by applying lubricating oil to the machine joints
The heat press has a ground connection. It is recommended to use a safety plug to divert any excessive current discharge

TECHNICAL DATA

Model	Brildor XH-T300
Type of heat press	Automatic/Cylindrical objects
Voltage (V)	220
Power (W)	600
Temperature range (ºC)	0-232
Time range (s)	0-999

INTERCHANGEABLE HEATING ELEMENTS

The standard heating element is 11 oz and is 27 cm long. Other sizes are optional and purchased separately
3rd generation male connector
Easily interchangeable. Simply tighten or loosen the screws manually
Wide and dense heat conductor with fine granulation. Ensures fast and even heat transmission
Interior with silicone pad to adapt and not damage the surface of the object
Only compatible with Brildor XH series heat presses. Installing these heating elements in other machines may cause malfunctions or even irreparable damage
Made of high-quality material

HEAT PRESS DIMENSIONS

Heat press (cm)	31 x 21 x 44
Packaging (cm)	39 x 28 x 56
Heat press weight (kg)	11.5
Gross weight (kg)	13

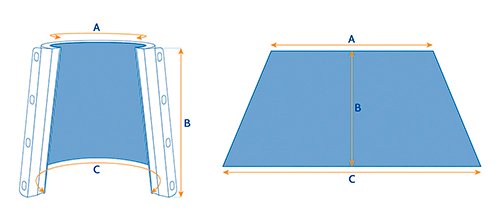

INCLUDED HEATING ELEMENT DIMENSIONS

Cylindrical heating elements

Shape	Capacity (oz)	A (cm)	B (cm)	Weight (g)
Cylindrical (long)	11	23	27	867

OPTIONAL HEATING ELEMENT DIMENSIONS

Cylindrical heating elements

Reference	Shape	Capacity (oz)	A (cm)	B (cm)	Weight (g)
041300	Cylindrical	2.5	14.5	27	609
041301	Cylindrical	6-9	20.5	27	814
049120	Cylindrical (short)	11	23	11.5	334
041302	Cylindrical	15	23.5	11	924

Conical heating element

Reference	Shape	Capacity (oz)	A (cm)	B (cm)	C (cm)	Weight (g)
041303	Conical	12	17	12	23.5	367
041304	Conical	17	17	16	24	483

WARRANTY

Heat press: 1 year
Heating elements: 3 months

The period starts from the invoice date.

Additional Information

More Information
Ref.	949202
Brand	Brildor
Power (W)	600
Pressure regulation	Manual
Opening	Automatic
Closing	Automatic
