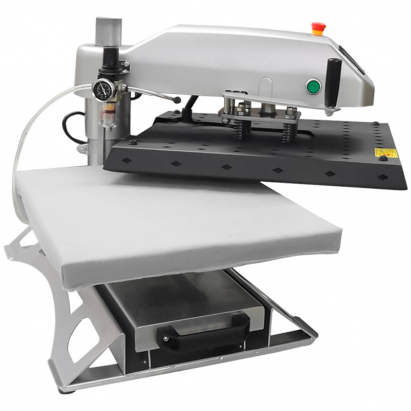

https://www.brildor.com/en/automatic-swing-away-heat-press-slide-out-drawer-brildor-xh-b1-223026Automatic Swing Away Heat Press with Slide Out Drawer - XH-B1.2<p class="enlace"><a id="know-more"></a> </p>
<h2>More information about the XH-B1.2 automatic swing away heat press with slide out drawer</h2>
<p> </p>
<p><strong>INDEX</strong></p>
<p>> <a href="#know-more1">Description</a></p>
<p>> <a href="#know-more2">Compressor</a></p>
<p>> <a href="#know-more4">Technical details</a></p>
<p>> <a href="#know-more5">Dimensions</a></p>
<p> </p>
<p class="enlace"><a id="know-more1"></a> </p>
<p><strong>DESCRIPTION<br></strong></p>
<ul>
<li>Both platens are the same size</li>
<li>Control panel with LCD screen to set temperature and time</li>
<li>Features start timer</li>
<li>Auto-off feature by pressing 2 buttons</li>
<li>Automatic opening with timer and beeper sound</li>
<li>The pressure can be adjusted by a pressure gauge on the top of the shaft</li>
<li>The upper part of the heating plate has a protective casing to prevent burns</li>
<li>Teflon-coated heating plate to prevent sticking and even temperature and pressure distribution</li>
<li>Sturdy structure, made of highly resistant materials</li>
<li>CE labelled</li>
<li>Emergency stop button on the front</li>
</ul>
<p> </p>
<p> </p>
<p class="enlace"><a id="know-more2"></a> </p>
<p><strong>COMPRESSOR<br></strong></p>
<p>Must be used with a 24 litre air compressor. For higher production levels we recommend a 50 litre or larger compressor.</p>
<p> </p>
<p class="enlace"><a id="know-more4"></a> </p>
<p><strong>TECHNICAL DETAILS <br></strong></p>
<table>
<tbody>
<tr>
<td><strong>Press model</strong></td>
<td>XH-B1.2</td>
</tr>
<tr>
<td><strong>Press type</strong></td>
<td>Pneumatic/Swing-away</td>
</tr>
<tr>
<td><strong>Platen type</strong></td>
<td>Slide-out</td>
</tr>
<tr>
<td><strong>Control panel</strong></td>
<td>LCD display</td>
</tr>
<tr>
<td><strong>Plates dimensions</strong></td>
<td><span class="azul-negrita">40 x 50 cm<br></span></td>
</tr>
<tr>
<td><strong>Timer</strong></td>
<td><span class="azul-negrita">0-999 s</span></td>
</tr>
<tr>
<td><strong>Max. temperature</strong></td>
<td><span class="azul-negrita">245ºC</span></td>
</tr>
<tr>
<td><strong>Max. working height</strong></td>
<td><span class="azul-negrita">5.3 cm</span></td>
</tr>
<tr>
<td><strong>Voltage</strong></td>
<td><span class="azul-negrita">110/220 V</span></td>
</tr>
<tr>
<td><strong>Power</strong></td>
<td><span class="azul-negrita">2200 W<br></span></td>
</tr>
</tbody>
</table>
<p> </p>
<p class="enlace"><a id="know-more5"></a> </p>
<p><strong>DIMENSIONS<br></strong></p>
<table>
<tbody>
<tr>
<td><strong>Packaging</strong></td>
<td><span class="azul-negrita">82 x 50 x 55 cm</span></td>
</tr>
<tr>
<td><strong>Gross weight</strong></td>
<td><span class="azul-negrita">67 kg</span></td>
</tr>
</tbody>
</table>https://www.brildor.com/media/catalog/product/p/l/plancha-brildor-xh-b1-2.jpg995instock0995000https://www.brildor.com/media/catalog/product/p/l/plancha-brildor-xh-b1-2.jpg164911967622955241304890952484/Heat Presses/Heat Presses/Swing Away Heat Presses2021-07-24T06:10:53+0000
