€1,245.00
VAT not included
/ Each Unit

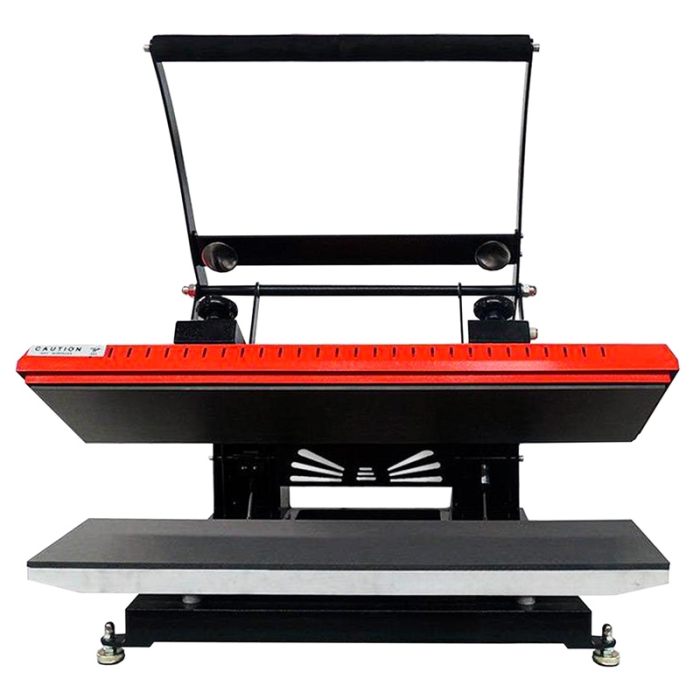

Brildor Heat Press for Ribbons 100x25cm
Electromagnetic heat press with an elongated base plate for thermal transfers on lanyards, ribbons, scarves, ties, belts...
- Manual closing and automatic opening by electromagnet
- Customise items up to 1 m in length
- Base plate dimensions: 100 x 25 cm
More information
Availability:
Immediate:
2 unitsExpected entries:
24/12/24:
5 units25/02/25:
1 units
Our availability is not enough?
Let us know how much you need
I WANT MORE
More information about the Brildor Heat Press for Ribbons 100x25cm
INDEX
> Description
> Technical data
> Press dimensions
DESCRIPTION
- Semi-automatic. Automatic opening system with electromagnetic lock
- Lever with wide and ergonomic handle for manual closing
- Control panel with screen to set temperature and time
- Base plate with silicone pad for uniform distribution of pressure and temperature
- Metal legs with rubber feet to keep it stable
- Manual pressure adjustment with 2 wheels
- Robust structure with anti-burn cover
- CE certification of conformity with the EU
TECHNICAL DATA
| Type of press |
Electromagnetic/Sandwich |
| Type of base plate |
Fixed |
Operation
|
Electromagnet |
| Controller |
Digital LCD screen |
Base plate dimensions (cm)
|
100 x 25
|
Voltage (V/V)
|
110 / 220
|
Power (W/W)
|
2200 / 2400
|
Amperage (A/A)
|
11 / 20
|
Frequency (Hz/Hz)
|
50 / 60
|
Timer (s)
|
0-999
|
Temperature range (ºC / ºF)
|
0-225 / 0-437
|
Temperature accuracy (% / ºF)
|
±5 / ±10
|
PRESS DIMENSIONS
Press (cm)
|
104.3 x 78.8 x 45.5
|
Packaging (cm)
|
120 x 95 x 61
|
Net weight (Kg)
|
92
|
More Information
| Ref. |
033941 |
| Net Weight (kg) |
92.000 |
| Billable Weight (kg) |
101.2000 |
| Brand |
Brildor |
| Print area (cm) |
100 x 25 |
| Power (W) |
2200 / 2400 |
| Pressure regulation |
Manual |
| Opening |
Electromagnetic |
| Closing |
Manual |
