€489.00
VAT not included
/ Each Unit

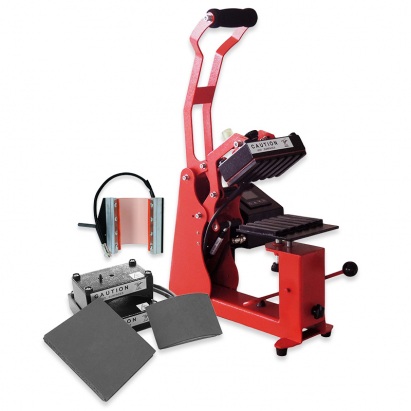

Brildor Mini 4-in-1 Combo Press
Small and lightweight heat press with interchangeable accessories, specially designed for customisation work on small surfaces such as mugs, pens, mouse pads, caps...
The price of the heat press includes these 4 accessories:
Heating element for 10-11oz mugs
Flat plate 15x15
Curved plate for caps 15x8
Base mould for 6 pens
Replacement plates and heating elements can be purchased separately in Related Products .
More information
Availability:
Immediate:
3 units Expected entries:
24/12/24:
1 units 25/02/25:
1 units
Our availability is not enough?
Let us know how much you need
I WANT MORE
More information about the Brildor Mini 4-in-1 Combo Heat Press
INDEX
> Description
> Downloads
> Accessories
> Technical Data
> Heat Press Dimensions
> Accessory Dimensions
DESCRIPTION
Digital temperature and time controller with touch screen and piece counter
Lever or arm with ergonomic handle for opening and closing
Manual pressure adjustment via screw
Hydraulic spring or shock absorber for smooth and safe opening and closing
Compact and easy to move
Durable metal structure
CE certification: complies with EU quality and safety standards
DOWNLOADS
ACCESSORIES
Easy to manually interchange without the use of tools
The bottom of the flat plate and the curved plate includes a silicone pad for even distribution of pressure and temperature
The pen customisation accessory is covered on both sides with a rubber pad
TECHNICAL DATA
Heat Press Model Brildor 4-in-1
Type of Heat Press Manual/Combo
Type of Plate Interchangeable
Controller Digital LCD screen model GY-10
Maximum thickness for flat plate pressing (cm) 1.3
Pad thickness (cm) 1
Opening angle (º) 45
Voltage (V / V) 120 / 220
Power (W) 350
Frequency (Hz / Hz) 50 /60 - Current 6A
Timer (s) 0-999
Temperature range (ºC) 0-225
Temperature accuracy (ºC) ±5
Heating time to 200 ºC (min) ±5
Spring/Shock Absorber (kg / cm) 20 / Ø1.5 x 16.4
HEAT PRESS DIMENSIONS
Heat Press (cm) 27 x 68.5 x 46
Packaging (cm) 58.5 x 56.5 x 47
Net weight (kg) 17.92
ACCESSORY DIMENSIONS
Mug heater 10-11 oz (cm) Ø7.5 - Ø9.5 x 13
Flat plate (cm) 15 x 15
Cap accessory (curved plate) (cm) 15 x 8
Pen base-mould (cm) 15 x 10
More Information
Ref.
037596
Net Weight (kg)
17.9200
Gross Weight (kg)
21.0700
Billable Weight (kg)
23.1800
Print area (cm)
15 x 15
Power (W)
350
Pressure regulation
Manual
Opening
Manual
Closing
Manual
