€2,495.00
VAT not included
/ Each Unit

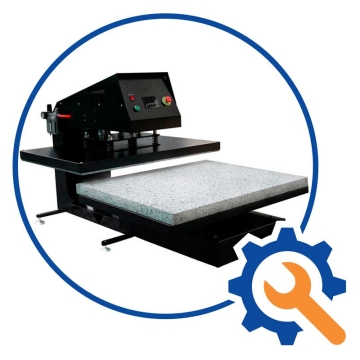

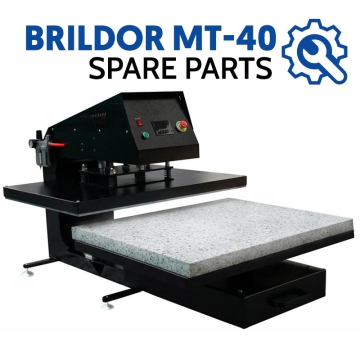

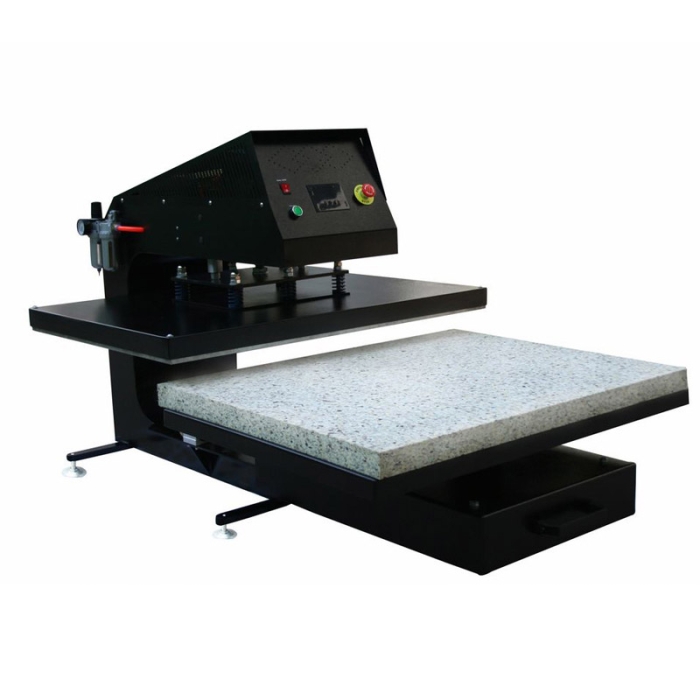

Brildor MT-40 Pneumatic Press with Removable Base Plate 100x80cm
Automatic press for large format textile and rigid material printing via thermal transfer.
Automatic closing and opening by pneumatic actuation
Removable base plate to prevent burns
Base plate dimensions: 100 x 80 cm
Requires compressor, not included.
More information
Availability:
Immediate: 2 units
Our availability is not enough?
Let us know how much you need
I WANT MORE
More information about the Brildor MT-40 Pneumatic Press with Removable Base Plate 100x80cm
INDEX
> Description
> Things to keep in mind
> Manual
> Technical Data
DESCRIPTION
Control panel with screen for programming temperature and pressing time
Automatic closure with dual-button safety feature
Base plate with recycled cotton pad for even distribution of pressure and temperature
Adjustable pressure via manometer
Emergency stop button on the front
Metal legs with suction cups to keep the machine stable
Robust structure made with durable materials
THINGS TO KEEP IN MIND
Plug not included. Requires a three-phase electrical installation. The griddle must be fitted with a plug compatible with the socket where it is to be connected
MANUAL
Brildor MT-40 Heat Press Instructions Manual
TECHNICAL DATA
Heat Press Model Brildor MT-40
Type of Heat Press Pneumatic/Vertical
Type of Base Plate Removable
Control Panel LCD Screen
Base Plate Dimensions (cm) 100 x 80
Maximum Thickness to Press (cm) 2
Maximum Pressure (bar) 10
Voltage (V) 380
Power (W) 7500
Plug Three-phase
Timer (s) 0-999
Temperature Range (ºC/ºF) 0-225 / 0-437
Temperature Accuracy (ºC) ± 5
Compressor Flow Rate Required (l/min) 200
More Information
Ref.
032343
Gross Weight (kg)
340
Billable Weight (kg)
374.0000
Brand
Brildor
Print area (cm)
100 x 80
Power (W)
7500
Pressure regulation
Gauge
Opening
Pneumatic
Closing
Pneumatic
