3D Heat Transfer Vinyl - 3D DuoFlex - Chemica

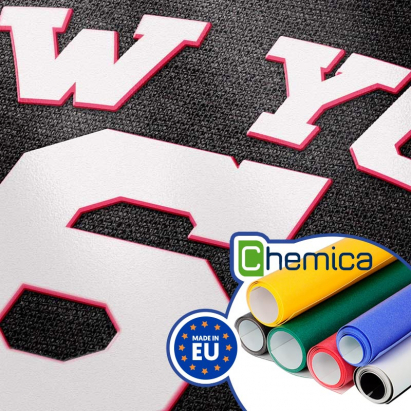

Double layer heat transfer film for creating embossed designs with coloured outlines. When heat is applied, the base layer expands slightly over the other to form the edge of the design.

  • Made of 460 μ thick polyurethane in a matte finish
  • Applies on cotton, polyester, acrylic and cotton-polyester blends
  • Sales units: 1 m roll, 25 cm wide, and 10 m roll, 50 cm wide

More information

Availability:
Shown on each product
Reward Points
Get free € to redeem on your next order by buying these products. Discover the Brildor Loyalty Program Get free € to redeem on your next order by buying these products. Discover the Brildor Loyalty Program

More information about the 3D Heat Transfer Vinyl - 3D DuoFlex - Chemica



INDEX

> Description

> Things to keep in mind

> Technical characteristics

> Transfer parameters

> Application instructions

> Technical details

> Weights

> Washing recommendations

> Storage recommendations

> Data sheet



DESCRIPTION

3D DUOFLEX is a 3D effect double-coloured PU (polyurethane) film for transferring your designs on fabrics without water-repellent treatment.

  • The inside of the design is white and the outline of the chosen colour, except for the Black/White vinyl, where the design will have a white border and a black inside
  • The liner is a self-adhesive PET (polyester) film that acts as a carrier sheet
  • Made in France by Chemica



THINGS TO KEEP IN MIND

  • The outline of the vinyl can be thickened by increasing the pressing time (60 seconds max.)
  • Wait at least 24 hours before the first wash



TECHNICAL CHARACTERISTICS

Vinyl Two-colour polyurethane
Thickness (µ) 460
Support or liner PET film (non-adhesive)
Includes transporter Yes
Fabrics Polyester, cotton, acrylic and cotton-polyester blend
Cutting blade for vinyl cutter 60º
Blockout(*) Yes
Discard Cold

(*) Prevents the colour of the textile from transferring to the vinyl during its application



TRANSFER PARAMETERS

  • Knife blade: 60º
  • Temperature: 165ºC
  • Time: 20 seconds
  • Pressure: 2.5 - 3.0 bar [medium pressure]



APPLICATION INSTRUCTIONS

  • Place the vinyl with the coloured side upwards in the cutting plotter. That is, the non-white side, except for the Black/White vinyl, which must be placed with the white side facing upwards
  • Cut the design in mirror image
  • Weed out your excess vinyl
  • Preheat the press to 165ºC
  • Place the garment on the press and pre-press for 4-5 seconds to remove wrinkles and moisture from the fabric
  • Position the vinyl over the garment and cover with protective paper
  • Press for 20 seconds, medium pressure. The longer you press, the thicker the outline of the vinyl will become
  • Cool peel the liner



TECHNICAL DETAILS

Composition Average thickness Carrier material
Polyurethane 460 μ Non-adhesive clear polyester



WEIGHTS

Roll 25 x 1 50 x 10
Weight (kg) 0.15 3.5



WASHING RECOMMENDATIONS

Washing Washing recommendation
40ºC max.
Inside out



STORAGE RECOMMENDATIONS

Storage life Temperature Lightning Position
Up to 1 year Dry room (15-30ºC) Away from sunlight Vertical



DATA SHEET

Data sheet 3D Duoflex (.pdf - 0.36 MB)
