Heat press with a removable base plate for customising textiles and rigid items through sublimation, transfer, vinyl, DTF...
Gift
With the purchase of this press, you will receive completely free:
INDEX
> Features
> What does this heat press include?
> How to choose the right resistance?
> Bottle resistance measurements
> Additional cylindrical resistance measurements
> Additional conical resistance measurements
> Shin guard accessory measurements
> Warranty
FEATURES
THINGS TO KEEP IN MIND
USER MANUAL
Combo Craft Express 8 in 1 Heat Press User Manual (.pdf - 1.13 MB).
WHAT DOES THIS HEAT PRESS INCLUDE?
1 | Non-slip pad |
1 | User manual |
1 | Flat heat plate 23 x 30 cm |
1 | Flat heat plate 15 x 20 cm |
1 | Heat plate for plates Ø15.5 cm |
1 | Heat plate for plates Ø12.2 cm |
1 | Bottle resistance 30 oz |
1 | Pen heat plate and base plate |
1 | Cap heat plate and base plate |
1 | Flask heat plate and base plate |
NOTE 1: The pen accessory allows you to personalize up to 10 units of 0.7 x 1 cm each.
NOTE 2: The flask accessory is suitable for units up to 9.7 x 13 cm.
BOTTLE RESISTANCE MEASUREMENTS (INCLUDED IN THE HEAT PRESS)
Measurements are provided by the manufacturer as a guide. For more information, you can refer to this video tutorial: How to choose the right resistance?
Capacity (oz) |
A (cm) |
B (cm) |
Max. Diameter (cm) |
Min. Diameter (cm) |
30 oz |
23 |
27 |
Ø8.8 |
Ø7.2 |
NOTE 1: If the cylindrical object you want to print has a slightly smaller diameter than the resistance, you can use silicone sheets to increase the diameter (see Related Products).
NOTE 2: It is recommended to perform tests with your object before starting production.
NOTE 3: Do not heat or maintain a high temperature without an object inside, as the resistance may deteriorate in areas that are not in contact with the object during heat transfer. To avoid this, always use objects that match the length of the resistance.
ADDITIONAL CYLINDRICAL RESISTANCE MEASUREMENTS
Ref. | Capacity (oz) |
A (cm) |
B (cm) |
Max. Diameter (cm) |
Min. Diameter (cm) |
054519 | 3 | 13.5 | 8 | Ø5.8 | Ø4.8 |
054516 | 10 | 20.5 | 13 | Ø8.1 | Ø6.5 |
054512 | 11 | 23 | 13 | Ø8.7 | Ø7.2 |
055054 | 12 | 23 | 9 | * | * |
054520 | 20/17 | 19 | 27 | Ø7.1 | Ø6 |
* Information not provided by the manufacturer.

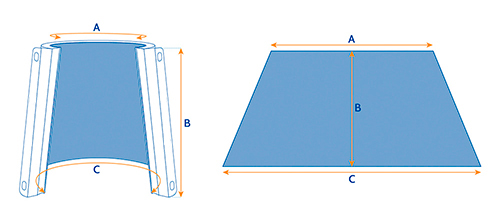

ADDITIONAL CONICAL RESISTANCE MEASUREMENTS
Ref. | Capacity (oz) |
A (cm) |
B (cm) |
C (cm) |
Max. Diameter (cm) |
Min. Diameter (cm) |
055055 | 3 | 8.5 | 12 | 11.5 | Top: * Bottom: * |
Top: * Bottom: * |
055052 | 12 | 17 | 12 | 26 | Top: Ø7 Bottom: Ø10 |
Top: Ø6 Bottom: Ø8.8 |
055053 | 17 | 14.5 | 16.5 | 23.5 | Top: Ø6.4 Bottom: Ø8.8 |
Top: Ø5.5 Bottom: Ø8 |
* Information not provided by the manufacturer.
SHIN GUARD ACCESSORY
SHIN GUARD ACCESSORY MEASUREMENTS
Base plate (cm) |
16.5 x 23 x 4.9 |
Heat plate (cm) |
18.8 x 21.8 x 6.9 |
Cable length (cm) |
28 |
Weight (kg) |
3.03 |

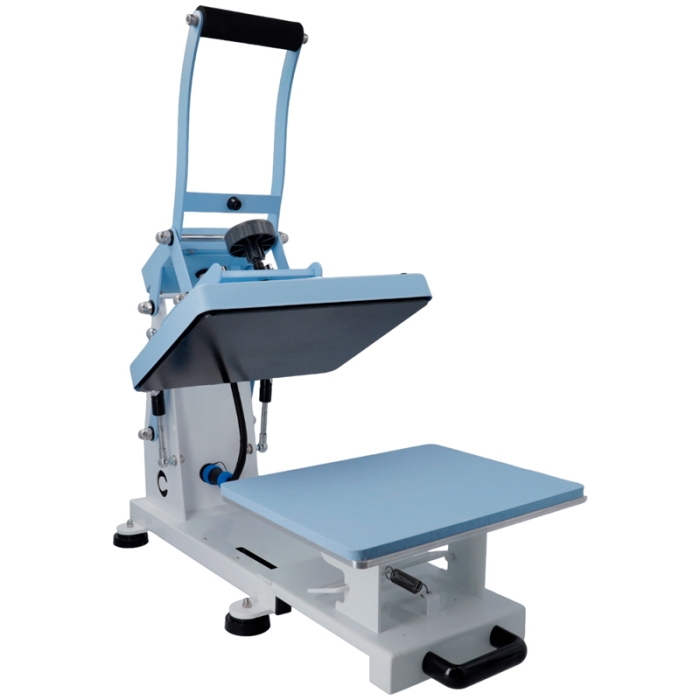

TECHNICAL DATA
Model |
Combo Craft Express 8 in 1 |
Type |
Manual | Swing-away |
Type of base plate | Removable | Interchangeable |
Controller | Digital display with touch buttons |
Pad thickness (cm) |
1 |
Temperature range (ºC | ºF) |
0 - 250 | 0 - 482 |
Time range (s) | 0 - 999 |
Power (W) | 1000 |
Voltage (V | Hz) | 220 | 50~60 |
Closed heat press (cm) | 48 x 31 x 42 |
Packaging (cm) | 59 x 48 x 56.5 |
Net weight (kg) | 36 |
Gross weight (kg) | 38 |
WARRANTY
The warranty period starts from the date of invoice.
