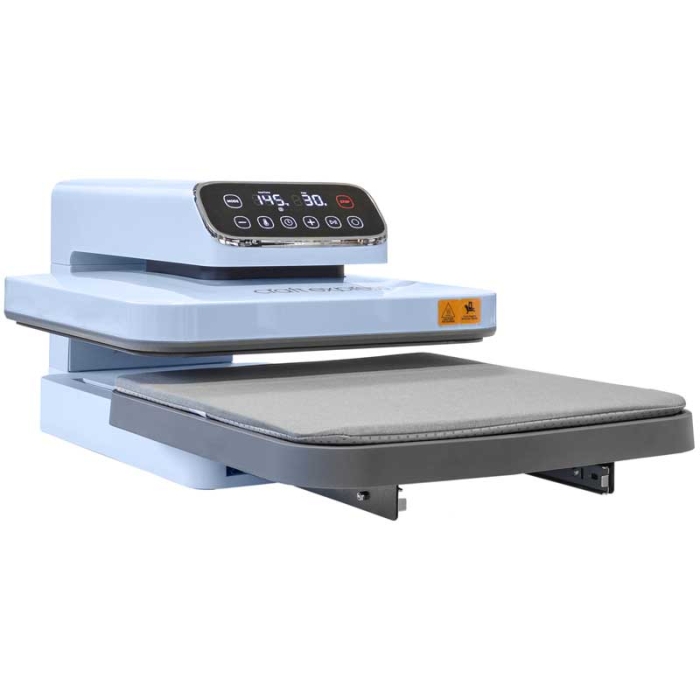

Multiple applications: suitable for any heat customisation technique: sublimation, DTF, vinyl, transfer...
Modern design: perfect for working and displaying in shops or fairs in view of the customer
Touch screen: large control panel for programming temperature, time, programs...
4 preset programs: with different temperatures and times modifiable according to use
Custom Presets: possibility to register up to 2 additional temperature and time settings
Saves established settings: repeats the last parameters for the next pressing
Automatic lowering: when activated, the heat plate will automatically lower when the base plate is inserted and start pressing
Removable base plate: facilitates material loading and prevents burns
Automatic pressure adjustment: adjusts according to the material to be printed. Additionally, it ensures uniform heat transfer across the entire surface
Foam pad: allows for even heat distribution. Non-slip base to prevent movement. Easily removable
Sound alerts: the press emits a sound alert when the pressing process is complete
Automatic shut-off: after 30 min of inactivity
Certification: CE compliant with the EU
Warranty: 3 years for manufacturing defects from the invoice date
TIPS AND ADVICE
It is possible to cure the film of DTF with this press:
Place the film on the base plate
Set only the temperature. The heat plate will remain at a height of 23 mm from the base plate (with pad)
To measure the curing time do not use the press timer (do not activate). If you do, the heat plate will fully lower. Use a manual timer to measure the curing duration (see Related Products)
Once the time is up, remove the base plate and take out the film
WHAT DOES THIS PRESS INCLUDE?
1
Foam pad 38 x 38 cm
1
Teflon sheet 40 x 50 cm
1
Pair of thermal gloves
1
User manual
CONTROL PANEL
Power on/off button: play icon. To turn off the machine, hold the button for 3 seconds
Start button: manual mode to activate pressing. The heat plate will lower and begin pressing
Stop button: stops the machine and raises the heat plate in case of emergency
Temperature button: temperature adjustment. Holding it down switches between ºC and ºF and vice versa
Time button: time adjustment
+ / - buttons: increase and decrease temperature and time
Preset programs button (MODE): includes 4 different preset time and temperature settings. Pressing it cycles through the modes. The A and B icons belong to the custom programs
Automatic mode button: allows pressing to start automatically when the base plate is inserted
PRESET AND CUSTOMISABLE PROGRAMS
2 custom programs (Icons A B)
Allows you to preset and save 2 different temperature and time configurations.
4 preset configurations
By pressing the programs button, you can choose from 4 pre-established temperature and time configurations. Each time you press the programs button, a pre-established time and temperature will appear along with a number, indicating the program you are in (1, 2, 3, or 4):
https://www.brildor.com/en/craft-express-automatic-heat-press-38x38cm53541Craft Express Automatic Heat Press 38x38cm<p class="enlace"><a id="know-more"></a> </p>
<h2>More information about the Craft Express Automatic Transfer Press 38x38cm</h2>
<p> </p>
<p><strong>INDEX</strong></p>
<p>> <a href="#know-more1">Description</a></p>
<p>> <a href="#know-more2">Tips and Advice</a></p>
<p>> <a href="#know-more3">What does this press include?</a></p>
<p>> <a href="#know-more4">Control Panel</a></p>
<p>> <a href="#know-more5">Preset / Customisable Programs</a></p>
<p>> <a href="#know-more8">User Manual</a></p>
<p>> <a href="#know-more6">Technical Data</a></p>
<p>> <a href="#know-more7">Dimensions</a></p>
<p> </p>
<p class="enlace"><a id="know-more1"></a> </p>
<p><strong>DESCRIPTION</strong></p>
<ul>
<li><strong>Multiple applications</strong>: suitable for any heat customisation technique: <span class="azul-brildor-negrita">sublimation</span>, <span class="azul-brildor-negrita">DTF</span>, <span class="azul-brildor-negrita">vinyl</span>, <span class="azul-brildor-negrita">transfer</span>...</li>
<li><strong>Modern design</strong>: perfect for working and displaying in shops or fairs in view of the customer</li>
<li><strong>Touch screen</strong>: large control panel for programming temperature, time, programs...</li>
<li><strong>4 preset programs</strong>: with different temperatures and times modifiable according to use</li>
<li><strong><em>Custom Presets</em>: </strong>possibility to register up to 2 additional temperature and time settings</li>
<li><strong>Saves established settings</strong>: repeats the last parameters for the next pressing</li>
<li><strong>Automatic lowering</strong>: when activated, the heat plate will automatically lower when the base plate is inserted and start pressing</li>
<li><strong>Removable base plate</strong>: facilitates material loading and prevents burns</li>
<li><strong>Automatic pressure adjustment</strong>: adjusts according to the material to be printed. Additionally, it ensures uniform heat transfer across the entire surface</li>
<li><strong>Foam pad</strong>: allows for even heat distribution. Non-slip base to prevent movement. Easily removable</li>
<li><strong>Sound alerts</strong>: the press emits a sound alert when the pressing process is complete</li>
<li><strong>Automatic shut-off:</strong> after <span class="azul-negrita">30 min</span> of inactivity</li>
<li><strong>Certification</strong>: CE compliant with the EU</li>
<li><strong>Warranty: </strong>3 years for manufacturing defects from the invoice date</li>
</ul>
<p> </p>
<p class="enlace"><a id="know-more2"></a> </p>
<p><strong>TIPS AND ADVICE</strong></p>
<ul>
<li>It is possible to <strong>cure the film</strong> of <span class="azul-brildor-negrita">DTF </span>with this press:
<ul>
<li>Place the film on the base plate</li>
<li>Set only the temperature. The heat plate will remain at a height of <span class="azul-negrita">23 mm</span> from the base plate (with pad)</li>
<li>To measure the curing time <strong>do not use</strong> the press timer (do not activate). If you do, the heat plate will fully lower. Use a manual timer to measure the curing duration (see <strong>Related Products)</strong></li>
<li>Once the time is up, remove the base plate and take out the film</li>
</ul>
</li>
</ul>
<p> </p>
<p class="enlace"><a id="know-more3"></a> </p>
<p><strong>WHAT DOES THIS PRESS INCLUDE?</strong></p>
<table>
<tbody>
<tr>
<td style="text-align: right;"><span class="azul-negrita">1</span></td>
<td>Foam pad <span class="azul-negrita">38 x 38 cm</span></td>
</tr>
<tr>
<td style="text-align: right;"><span class="azul-negrita">1</span></td>
<td>Teflon sheet <span class="azul-negrita">40 x 50 cm</span></td>
</tr>
<tr>
<td style="text-align: right;"><span class="azul-negrita">1</span></td>
<td>Pair of thermal gloves</td>
</tr>
<tr>
<td style="text-align: right;"><span class="azul-negrita">1</span></td>
<td>User manual</td>
</tr>
</tbody>
</table>
<p> </p>
<p class="enlace"><a id="know-more4"></a> </p>
<p><strong>CONTROL PANEL</strong></p>
<ul>
<li><strong>Power on/off button</strong>: <em>play</em> icon. To turn off the machine, hold the button for <span class="azul-negrita">3 seconds</span></li>
<li><strong>Start button</strong>: manual mode to activate pressing. The heat plate will lower and begin pressing</li>
<li><strong>Stop button</strong>: stops the machine and raises the heat plate in case of emergency</li>
<li><strong>Temperature button</strong>: temperature adjustment. Holding it down switches between <span class="azul-negrita">ºC</span> and <span class="azul-negrita">ºF</span> and vice versa</li>
<li><strong>Time button</strong>: time adjustment</li>
<li><strong>+ / - buttons</strong>: increase and decrease temperature and time</li>
<li><strong>Preset programs button (MODE)</strong>: includes 4 different preset time and temperature settings. Pressing it cycles through the modes. The <strong>A</strong> and <strong>B</strong> icons belong to the custom programs</li>
<li><strong>Automatic mode button</strong>: allows pressing to start automatically when the base plate is inserted</li>
</ul>
<p> </p>
<p class="enlace"><a id="know-more5"></a> </p>
<p><strong>PRESET AND CUSTOMISABLE PROGRAMS<br></strong></p>
<p><strong>2 custom programs (Icons A B)</strong></p>
<p>Allows you to preset and save 2 different temperature and time configurations.</p>
<p><strong>4 preset configurations</strong></p>
<p>By pressing the programs button, you can choose from 4 pre-established temperature and time configurations. Each time you press the programs button, a pre-established time and temperature will appear along with a number, indicating the program you are in (1, 2, 3, or 4):</p>
<table>
<tbody>
<tr>
<td style="text-align: center;"><strong>Program</strong></td>
<td style="text-align: center;"><strong>Temperature<br>(ºC | ºF)<br></strong></td>
<td style="text-align: center;"><strong>Time<br>(s)<br></strong></td>
</tr>
<tr>
<td style="text-align: center;">1</td>
<td style="text-align: center;"><span class="azul-negrita">160 </span>| <span class="azul-negrita">320</span></td>
<td style="text-align: center;"><span class="azul-negrita">20</span></td>
</tr>
<tr>
<td style="text-align: center;">2</td>
<td style="text-align: center;"><span class="azul-negrita">190 </span>|<span class="azul-negrita"> 374</span></td>
<td style="text-align: center;"><span class="azul-negrita">80</span></td>
</tr>
<tr>
<td style="text-align: center;">3</td>
<td style="text-align: center;"><span class="azul-negrita">190 </span>|<span class="azul-negrita"> 374</span></td>
<td style="text-align: center;"><span class="azul-negrita">120</span></td>
</tr>
<tr>
<td style="text-align: center;">4</td>
<td style="text-align: center;"><span class="azul-negrita">190 </span>|<span class="azul-negrita"> 374</span></td>
<td style="text-align: center;"><span class="azul-negrita">480</span></td>
</tr>
</tbody>
</table>
<p> </p>
<p class="enlace"><a id="know-more8"></a> </p>
<p><strong>USER MANUAL</strong></p>
<p><a href="https://tinyurl.com/296ah5zr" target="_blank" rel="noopener">Craft Express Transfer Press Manual (.pdf - 0.7MB)</a></p>
<p> </p>
<p class="enlace"><a id="know-more6"></a> </p>
<p><strong>TECHNICAL DATA <br></strong></p>
<table>
<tbody>
<tr>
<td><strong>Model<br></strong></td>
<td>Autopress Max Flat Press Edition</td>
</tr>
<tr>
<td><strong>Type of press</strong></td>
<td>Automatic/Vertical</td>
</tr>
<tr>
<td><strong>Type of base plate<br></strong></td>
<td>Removable</td>
</tr>
<tr>
<td><strong>Control panel</strong></td>
<td>Digital touch screen</td>
</tr>
<tr>
<td><strong>Dimensions of heat and base plates (cm) <br></strong></td>
<td><span class="azul-negrita">38 x 38</span></td>
</tr>
<tr>
<td><strong>Maximum thickness to press (cm | inches)<br></strong></td>
<td><span class="azul-negrita">2 </span>|<span class="azul-negrita"> 78</span></td>
</tr>
<tr>
<td><strong>Pad thickness (mm)<br></strong></td>
<td><span class="azul-negrita">13</span></td>
</tr>
<tr>
<td><strong>Maximum temperature (ºC | ºF)<br></strong></td>
<td><span class="azul-negrita">205</span> | <span class="azul-negrita">401</span></td>
</tr>
<tr>
<td><strong>Timer (s)<br></strong></td>
<td><span class="azul-negrita">1</span> - <span class="azul-negrita">999</span></td>
</tr>
<tr>
<td><strong>Voltage (V)<br></strong></td>
<td><span class="azul-negrita">230</span></td>
</tr>
<tr>
<td><strong>Power (W)<br></strong></td>
<td><span class="azul-negrita">1200<br></span></td>
</tr>
</tbody>
</table>
<p> </p>
<p class="enlace"><a id="know-more7"></a> </p>
<p><strong>DIMENSIONS<br></strong></p>
<table>
<tbody>
<tr>
<td><strong>Closed press (cm)<br></strong></td>
<td><span class="azul-negrita">39 x 27 x 50</span></td>
</tr>
<tr>
<td><strong>Press with<br>base plate extended (cm)<br></strong></td>
<td><span class="azul-negrita">39 x 27 x 84</span></td>
</tr>
<tr>
<td><strong>Max. height of heat plate<br>without pad (mm)<br></strong></td>
<td><span class="azul-negrita">38</span></td>
</tr>
<tr>
<td><strong>Max. height of heat plate<br>with pad (mm)</strong></td>
<td><span class="azul-negrita">23</span></td>
</tr>
<tr>
<td><strong>Pad (cm)<br></strong></td>
<td><span class="azul-negrita">38 x 38 x 1.3</span></td>
</tr>
<tr>
<td><strong>Packaging (cm)<br></strong></td>
<td><span class="azul-negrita">47 x 35 x 57</span></td>
</tr>
<tr>
<td><strong>Gross weight (kg)<br></strong></td>
<td><span class="azul-negrita">21</span></td>
</tr>
</tbody>
</table>https://www.brildor.com/media/catalog/product/p/l/plancha-transfer-autom_tica-craft-express-38x38cm-d12.jpg249.99instock0249.99000https://www.brildor.com/media/catalog/product/p/l/plancha-transfer-autom_tica-craft-express-38x38cm-d12.jpg202012295542385501405058353748/Heat Presses/Heat Presses/Heat Presses & Ovens/Automatic Heat Presses/Heat Presses/Heat Presses & Ovens/Offers2025-02-07T11:43:53+0000
