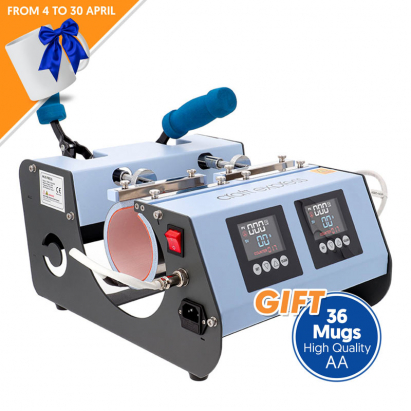

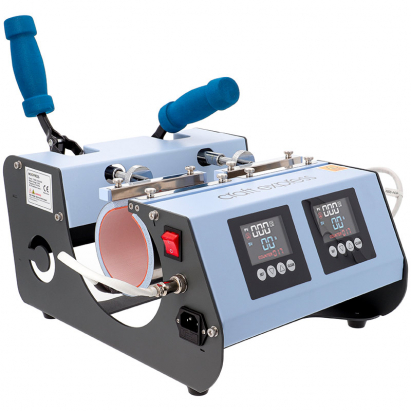

Sturdy and compact structure: small and light. Easy to move around
Dual station: to personalise 2 different products at the same time with the 9 and 11 oz heating elements
Full print: Cylindrical objects without handles such as tumblers, jars or bottles. This is because the heating elements close completely.
Dual control panel: independent, for setting the transfer time and temperature on each station
Ergonomic handles: padded with rubber buffers for a smoother opening and closing
High-quality heating elements: fast and even heat transfer due to the conductive wire covering the entire surface of the heating element
Easy installation of heating element using thread screws. They can be fitted and removed manually, no tools required
RoHs-certified: in compliance with CE regulations
THINGS TO KEEP IN MIND
The timer must be activated manually by pressing the "clear" button. When the pressing time is over, the "out 2" will light up on the control panel. The timer must be deactivated manually by pressing the "clear" button"
The 30 oz heating element takes up the 2 stations but can be connected to either of them. For it to work, you must use the control panel of the chosen station
To personalise the entire surface of an object, it is recommended to press it twice. After pressing it once, turn the item slightly and without removing it from the press, press it again for another 30 seconds at the same temperature
SAFETY PRECAUTIONS
Check the voltage before switching on the press
For your safety, make sure that the plug is earthed
Switch off the machine when not in use
Keep children away from the machine
Avoid touching the heating element when hot
Do not put any product not suitable for the heating element of the press
After 1.5 hours of use, it is recommended to switch off the press for 20 minutes
To increase the lifetime of the press, it is recommended to let it cool down with a mug inside
Do not heat or maintain at a high temperature without an object inside. If you want to print objects much smaller than the mug heater, place 2 or more mug wraps inside the heating element at the same time
Measurements with indicative character indicated by the manufacturer. It is recommended to perform tests with the element before starting production.
Element
Reference
Shape
Capacity (oz)
A (cm)
B (cm)
Max opening (cm)
Min opening (cm)
Weight (g)
Included with the press
Cylindrical
9
19
13
Ø7,3
Ø6,3
370
Included with the press
Cylindrical
11
23
13
Ø8,7
Ø7,2
502
Included with the press
Cylindrical
30
23
27
Ø8,8
Ø7,2
1048
054519
Cylindrical
3
13,5
8
Ø5,8
Ø4,8
232
054516
Cylindrical
10
20,5
13
Ø8,1
Ø6,5
455
055054
Cylindrical
12
23
9
*
*
403
054520
Cylindrical
20/17
19
27
Ø7,1
Ø6
882
* Information not provided by the manufacturer.
*If the cylindrical object is slightly smaller than the diameter of the heating element, you can use silicone sheets to thicken the diameter (see Related Products).

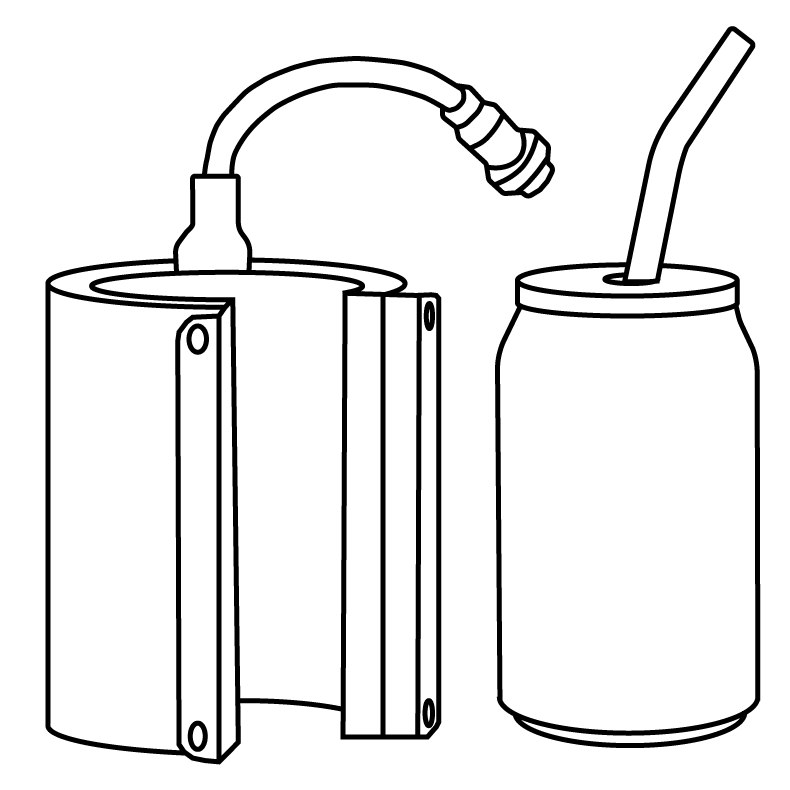

CONICAL ELEMENT MEASUREMENTS
Measurements with indicative character indicated by the manufacturer. It is recommended to perform tests with the element before starting production.
Element
Reference
Shape
Capacity (oz)
A (cm)
B (cm)
C (cm)
Diameter max (cm)
Diameter min (cm)
Weight (g)
055055
Conical
3
8,5
12
11,5
Top: * Bottom: *
Top: * Bottom: *
273
055052
Conical
12
17
12
26
Top: Ø7 Bottom: Ø10
Top: Ø6 Bottom: Ø8,8
446
055053
Conical
17
14,5
16,5
23,5
Top:Ø6,4 Bottom: Ø8,8
Top: Ø5,5 Bottom: Ø8
556
* Information not provided by the manufacturer.
WARRANTY
Heat press: 1 year
Heating element: 3 months
The warranty period starts from the date mentioned on the invoice of purchase.
