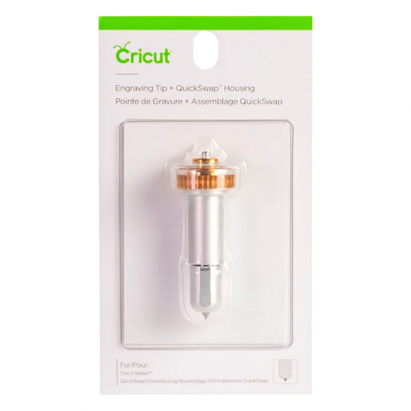

Cricut Engraving Tip + QuickSwap™ Housing

More information about the Cricut Engraving Tip with QuickSwap™ Housing

• The tip marked with the number 41 is only compatible with Cricut Maker vinyl cutters, and can only be used with this tool holder.
• No calibration required.
• Make sure you choose the right cutting mat for the material you want to engrave.
• The engraving function is available on Design Space® iOS and Android versions.

HOW TO CHANGE QUICKSWAP TIPS?

• Press and hold the plunger on top of the housing until the tip is released.
• Gently remove the tip from the tool holder.
• While pressing the plunger, align flat areas on the new tip with the housing's flat sides.
• Slide the tip into place.
• Ensure the tip is firmly clamped.
• Release the plunger to secure the tip.
• Drop the housing into clamp “B”.

RECOMMENDATIONS

• Do not press on the plunger to prevent the tip from coming out.
• The engraving tip is sharp and must be handled carefully.
• To minimise wear on the tip when engraving, the housing will be raised and rotate for a few seconds at regular intervals.
• Be careful when handling engraved materials. Small fragments of the material may have come off. You can remove them with a lint roller or with a piece of adhesive tape.
• If you observe irregularities on the edges after engraving, remove them with a polishing cloth or sandpaper (360-600 grit). We recommend you to try this on the back of the material beforehand, to make sure that it will not be scratched by this procedure.
• Use compressed air or a soft cloth to remove any engraving residue that may have fallen into the vinyl cutter. Always wipe towards the outside of the machine.
• Before engraving leather, smooth its surface with a dry sponge. This will soften its fibres, giving you better results.
