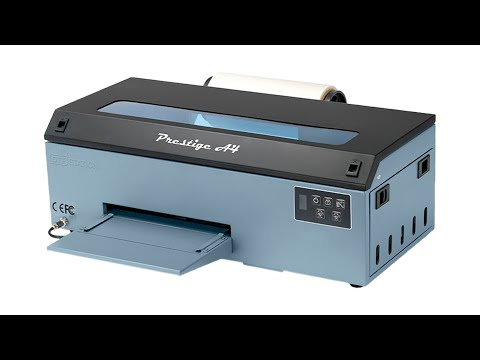

Versatility: prints films in roll format up to 20 cm wide, as well as A4 sheets. It transfers the design onto the film and stores it as a screen printing transfer
Optimized design: allows access to the interior of the printer, simplifying maintenance and repairs
Compact: small and lightweight desktop printer, suitable for limited workspaces
Easy to install, use, and maintain: equipped with all the features for DTF (Direct Transfer to Film) customization
Recirculation system: prevents white ink from damaging the printhead. The white ink tank has a mechanism to agitate it, and the dampers include a microfilter and membrane to move it
Printing heat base: improves color layer fixation, preventing inks from mixing
Film guides: prevent film displacement during ejection
Flat output tray: its height matches the film output to prevent the printhead from touching it, avoiding ink mixing or displacement
Dual-purpose roll holder: serves as a film feeder for both roll and sheet formats
Digital display: with temperature and ambient humidity indicators, as well as printing base temperature
Top cover window: allows checking the print quality during the process
DigiRIP DTF Station software: provides full control over the image, allowing for high-quality prints in a simple and intuitive way
Warranty:1 year for machine and components defects. The printhead and residual ink pump are excluded and have a 3-month warranty, provided that proper maintenance has been performed
Scan the QR code you will receive with your equipment to access all the installation, usage, and maintenance material for this printer. The link will allow you to download instructions, manuals, colour profiles, and even tutorial videos
SPECIFICATIONS
Printer Printhead
Epson L805
Compatible Operating System
Windows XP/7/10/11
Ink System
Refillable tanks
Mainboard
Epson
Software
DigiRIP DTF Station
Printing Width (cm)
21
Printing Resolution (dpi)
2880 x 1440
Printing Speed (A4 sheet)
1440 dpi/5 min
Ink Consumption (ml x m2)
5
Voltage (V)
220
Machine Dimensions (cm)
58 x 56 x 20
Packaging Dimensions (cm)
81 x 56 x 32
Net Weight (kg)
13
Gross Weight (kg)
15.2
MAINTENANCE RECOMMENDATIONS
The following maintenance actions must be performed to ensure proper operation of your machine. You can consult the videos for more information.
Start of Day
End of Day
Weekly
As Needed
Agitate white ink
✔
✗
✗
✗
Clean printhead
✔
✗
✗
✗
Nozzle check
✔
✗
✗
✗
Clean around the printhead
✗
✔
✗
✗
Clean wiper
✗
✔
✗
✗
Clean capping
✗
✔
✗
✗
Moisten the capping station with cleaning solution
✗
✔
✗
✗
Empty residual ink tank
✗
✗
✔
✔
Clean encoder strip
✗
✗
✔
✔
Clean feed rollers
✗
✗
✔
✔
Agitate inks
✗
✗
✔
✗
Clean ink tank
✗
✗
✗
✔
Pull the drain line
✗
✗
✗
✔
INSTRUCTIONS AND PARAMETERS FOR APPLYING THE DTF TECHNIQUE
The following instructions are for guidance purposes only. They may vary depending on the condition of the equipment and materials used. It is recommended to perform preliminary tests before starting production.
STEP 1. FILM PREPARATION
Check that the ambient temperature is 20-30 °C and the humidity is above 50%
Print the design on the film in mirror mode. Include a white layer at the end
Carefully remove the film from the printer tray, without touching the ink
Preheat the transfer press to 165 °C(*)
Sprinkle DTF powder onto the printed design on the film. Store the remaining powder in a container to prevent moisture
Place the film on the base of the transfer press and lower the upper plate until it is 3-4 cm above the film, without touching it
Cure the film for 2 minutes. Check that the powder has melted and formed a film
(*) If you do not want to apply the design to the fabric immediately, you must cure the powder at a temperature of 190 °C for 8-10 minutes. This will allow the film to become a screen printing transfer that can be applied at a later time.
STEP 2. APPLYING THE DESIGN
If the fabric is cotton, pre-press it at 165 °C. If it is polyester, pre-pressing is not necessary
Place the film on the garment
Press at 165 °C with medium-high pressure for 15 seconds if the fabric is cotton
Press at 140 °C with medium-high pressure for 50 seconds if the fabric is polyester or a polyester-cotton blend
Remove the garment from the transfer press and let it cool down
https://www.brildor.com/en/dtf-printer-prestige-a4-digirip-savings-pack51175DTF Printer Prestige A4 DigiRIP - Savings Pack<h2>More information about the DTF Printer Prestige A4 DigiRIP</h2>
<p> </p>
<p><strong>INDEX</strong></p>
<p>> <a href="#know-more1">Features</a></p>
<p>> <a href="#know-more2">What's included in the savings pack?</a></p>
<p>> <a href="#know-more3">Things to keep in mind</a></p>
<p>> <a href="#know-more5">User manual</a></p>
<p>> <a href="#know-more8">Support material</a></p>
<p>> <a href="#know-more4">Specifications</a></p>
<p>> <a href="#know-more7">Maintenance recommendations</a></p>
<p>> <a href="#know-more9">Instructions and parameters for applying the DTF technique</a></p>
<p>> <a href="#know-more6">Related posts</a></p>
<p> </p>
<p class="enlace"><a id="know-more1"></a> </p>
<p><strong>FEATURES OF THE DTF PRESTIGE A4 PRINTER</strong></p>
<ul>
<li><strong>Versatility:</strong> prints films in roll format up to <span class="azul-negrita">20 cm</span> wide, as well as A4 sheets. It transfers the design onto the film and stores it as a screen printing transfer</li>
<li><strong>Optimized design:</strong> allows access to the interior of the printer, simplifying maintenance and repairs</li>
<li><strong>Compact:</strong> small and lightweight desktop printer, suitable for limited workspaces</li>
<li><strong>Easy to install, use, and maintain:</strong> equipped with all the features for DTF (Direct Transfer to Film) customization</li>
<li><strong>Recirculation system:</strong> prevents white ink from damaging the printhead. The white ink tank has a mechanism to agitate it, and the dampers include a microfilter and membrane to move it</li>
<li><strong>Printing heat base:</strong> improves color layer fixation, preventing inks from mixing</li>
<li><strong>Film guides:</strong> prevent film displacement during ejection</li>
<li><strong>Flat output tray:</strong> its height matches the film output to prevent the printhead from touching it, avoiding ink mixing or displacement</li>
<li><strong>Dual-purpose roll holder:</strong> serves as a film feeder for both roll and sheet formats</li>
<li><strong>Digital display:</strong> with temperature and ambient humidity indicators, as well as printing base temperature</li>
<li><strong>Top cover window:</strong> allows checking the print quality during the process</li>
<li><strong>DigiRIP DTF Station software:</strong> provides full control over the image, allowing for high-quality prints in a simple and intuitive way</li>
<li><strong>Warranty:</strong> <strong>1 year</strong> for machine and components defects. The printhead and residual ink pump are excluded and have a <strong>3-month</strong> warranty, provided that proper maintenance has been performed</li>
</ul>
<p> </p>
<p class="enlace"><a id="know-more2"></a> </p>

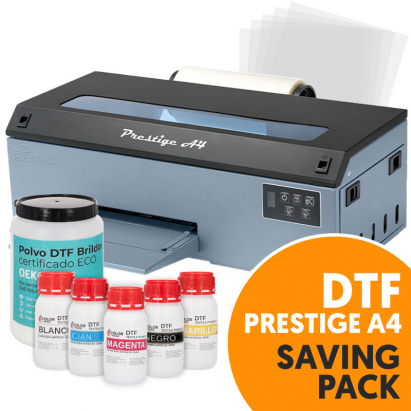

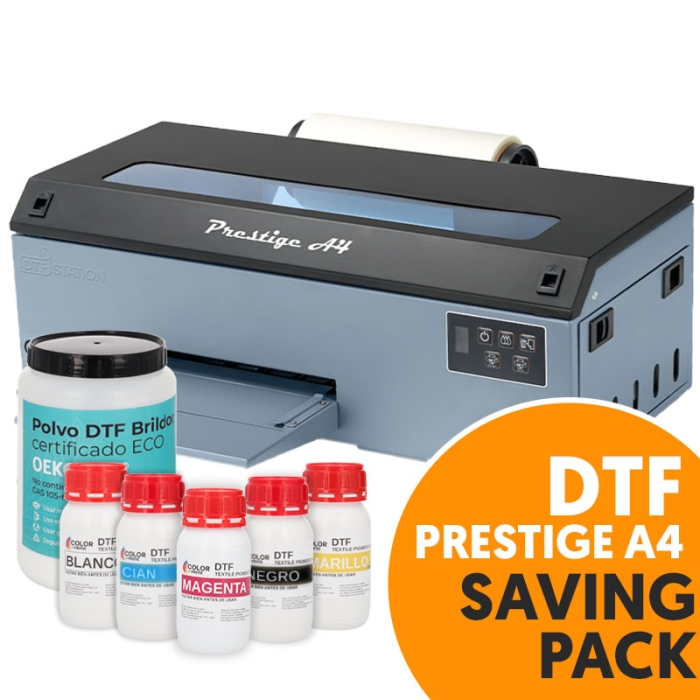

<p><strong>WHAT'S INCLUDED IN THE SAVINGS PACK?</strong></p>
