High ink load layer: ensures high-quality prints with vivid, sharp and intense colours
Instant peel: the film is removed immediately after ironing, saving time
High-speed ironing: requires only a few seconds for thermal transfer
High ink absorption capacity: minimises or eliminates bleeding and ink displacement on the film surface
Translucent: allows you to see the design from both sides of the film
High-quality finishes: matte designs with a soft touch
Versatile: suitable for all types of garments, regardless of material or colour
Unrestricted transfers: apply the film with any transfer press that suits your needs
THINGS TO KEEP IN MIND
Single-use film
Peeling must be done immediately after ironing. If it cools down, the transfer will not be done correctly
The non-printable side has a slight shine and is smooth. If you print on this side by mistake, you can remove the ink using kitchen paper or a napkin
The film may yellow due to heat during curing, without affecting the white or colours of the design
TIPS AND ADVICE
Use gloves to avoid stains, as fingerprints can affect print quality. The film can easily get dirty
You can use any transfer press to apply the film, but for long-lasting transfers, we recommend using presses with precise temperature, pressure, and time settings
TECHNICAL DATA
Material
Translucent PET film
Finish
Matte
Thickness (μ)
83
Curing temperature (ºC)*
125
Transfer temperature (ºC) and time (s) *
130-140 10 to 15
*Values are indicative. We recommend conducting preliminary tests to make necessary adjustments before starting production.
APPLICATION INSTRUCTIONS
Print the design in mirror mode
Apply the DTF powder, remove the excess, and cure it
Cut the excess DTF film
Pre-iron the garment for a few seconds to remove any wrinkles and moisture
Place the film on the garment
Iron following the application parameters specified in the table

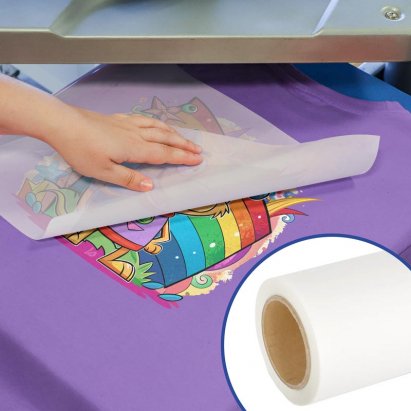

Peel the film immediately, continuously without pulling from above
Iron the garment again for 5 seconds using protective paper to improve the finish and durability
STORAGE RECOMMENDATIONS
Store in a cool, dry place
Avoid direct sunlight exposure
Place on clean, flat surfaces when handling
Keep the storage area clean and dust-free
Do not compress the films
Handle with gloves
WASHING RECOMMENDATIONS
Wash at low temperature
Do not use bleach or fabric softeners
Preferably air dry
If ironing is necessary, do it inside out and at low temperature
