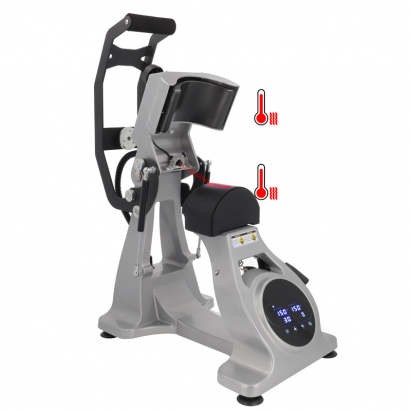

Heat press with a double heat plate and laser alignment for customising caps. Applies heat with both plates for quick and even transfers, even on thick fabrics.
Manual closure and automatic opening by electromagnet
Heat plate dimensions: 18 x 9.5 cm
Standard pad included. Additional pads can be purchased for pressing caps of different shapes
Multiple applications: customise a variety of caps and hats by sublimation, transfer, vinyl... Easily apply embroidered patches, multiple layers of vinyl together, etc.
Dual heat plate: upper and lower, with independent temperature adjustment. Allows better adhesion of heat-activated adhesives in vinyl and thick patches, applying heat from below activates the adhesive and fixes it from above. Reduces temperatures and application times
Semiautomatic: magnetic transfer press with automatic opening and manual closing with electromagnetic locking
Precise alignment: integrated laser pointer to position the design before pressing without wasting time. Additionally, you can slide the lower plate inward to easily centre it with the upper plate
Silicone pad included: standard shape for printing the front panel of 5-panel caps, hats...
Programmable temperature and time: control panel with touch screen to adjust parameters
Adjustable pressure: allows regulation of pressure depending on the thickness and type of surface to be printed. Adjusted via the top wheel
Easy to use: includes a manual lever to tension the cap and facilitate its customisation
Uniform distribution of pressure and temperature: with the silicone cover of the lower heat plate. Interchangeable cover with standard shape, allows pressing a wide variety of cap models
Stable metal structure: with suction cups for securing to the worktable
Press count: allows tracking of work pace
Includes 2 protective silicone sheets: to place over the design before transfer
CE Certification: complies with EU quality and safety standards
PADS AND THEIR USES
Silicone that keeps the cap firm during printing
Easy to exchange, removed from the lower plate without tools
Included with the press
Standard shape designed to fit various types of caps or hats
5-panel caps, visor caps, bucket hats...
Ref. 056109 purchased separately
Rounded and elongated top shape, suitable for caps with a central seam on the front
Suitable for 6-panel caps like trucker, camper, baseball, hip-hop, cycling...
Ref. 056108 purchased separately
Adapts to the seam at the top tip of the front panel of caps
For 2 to 5-panel retro caps, snapbacks, golf, vintage...
THINGS TO KEEP IN MIND
The press has 2 temperature adjustment panels (1 for each heat plate) and 1 timer. Once the programmed time is completed, the press opens automatically
https://www.brildor.com/en/dual-heated-hat-press-magnetic-xh-cp1-152527Dual Heated Hat Press Magnetic XH-CP1.1<p><a name="know-more"></a></p>
<h2>More information about the Dual Heated Hat Press Magnetic XH-CP1.1</h2>
<p> </p>
<p><strong>INDEX</strong></p>
<p>> <a href="#know-more1">Description</a></p>
<p>> <a href="#know-more2">Pads and their uses</a></p>
<p>> <a href="#know-more3">Things to keep in mind</a></p>
<p>> <a href="#know-more4">User manual</a></p>
<p>> <a href="#know-more5">Technical data</a></p>
<p> </p>
<p><a name="know-more1"></a></p>
<p><strong>DESCRIPTION</strong></p>
<ul>
<li><strong>Multiple applications: </strong>customise a variety of caps and hats by <span class="azul-brildor-negrita">sublimation</span>, <span class="azul-brildor-negrita">transfer</span>, <span class="azul-brildor-negrita">vinyl</span>... Easily apply embroidered patches, multiple layers of vinyl together, etc.</li>
<li><strong>Dual heat plate:</strong> upper and lower, with independent temperature adjustment. Allows better adhesion of heat-activated adhesives in vinyl and thick patches, applying heat from below activates the adhesive and fixes it from above. Reduces temperatures and application times</li>
<li><strong>Semiautomatic:</strong> magnetic transfer press with automatic opening and manual closing with electromagnetic locking</li>
<li><strong>Precise alignment: </strong>integrated laser pointer to position the design before pressing without wasting time. Additionally, you can slide the lower plate inward to easily centre it with the upper plate</li>
<li><strong>Silicone pad included:</strong> standard shape for printing the front panel of 5-panel caps, hats...</li>
<li><strong>Programmable temperature and time: </strong>control panel with touch screen to adjust parameters</li>
<li><strong>Adjustable pressure:</strong> allows regulation of pressure depending on the thickness and type of surface to be printed. Adjusted via the top wheel</li>
<li><strong>Easy to use:</strong> includes a manual lever to tension the cap and facilitate its customisation</li>
<li><strong>Uniform distribution of pressure and temperature:</strong> with the silicone cover of the lower heat plate. Interchangeable cover with standard shape, allows pressing a wide variety of cap models</li>
<li><strong>Stable metal structure:</strong> with suction cups for securing to the worktable</li>
<li><strong>Press count:</strong> allows tracking of work pace</li>
<li><strong>Includes 2 protective silicone sheets:</strong> to place over the design before transfer</li>
<li><strong>CE Certification:</strong> complies with EU quality and safety standards</li>
</ul>
<p> </p>
<p><a name="know-more2"></a></p>
<p><strong>PADS AND THEIR USES</strong></p>
<ul>
<li>Silicone that keeps the cap firm during printing</li>
<li>Easy to exchange, removed from the lower plate without tools</li>
</ul>
<table>
<tbody>
<tr>
<td><img src="{{media url="wysiwyg/Plancha/plancha-gorras-magneticXH-CP1-d33.jpg"}}" alt="Cap pad dual transfer press Magnetic XH-CP1.1" width="150" height="150"></td>
<td><img src="{{media url="wysiwyg/Plancha/plancha-gorras-magneticXH-CP1-d30.jpg"}}" alt="Cap pad dual transfer press Magnetic XH-CP1.1" width="150" height="150"></td>
<td>
<ul>

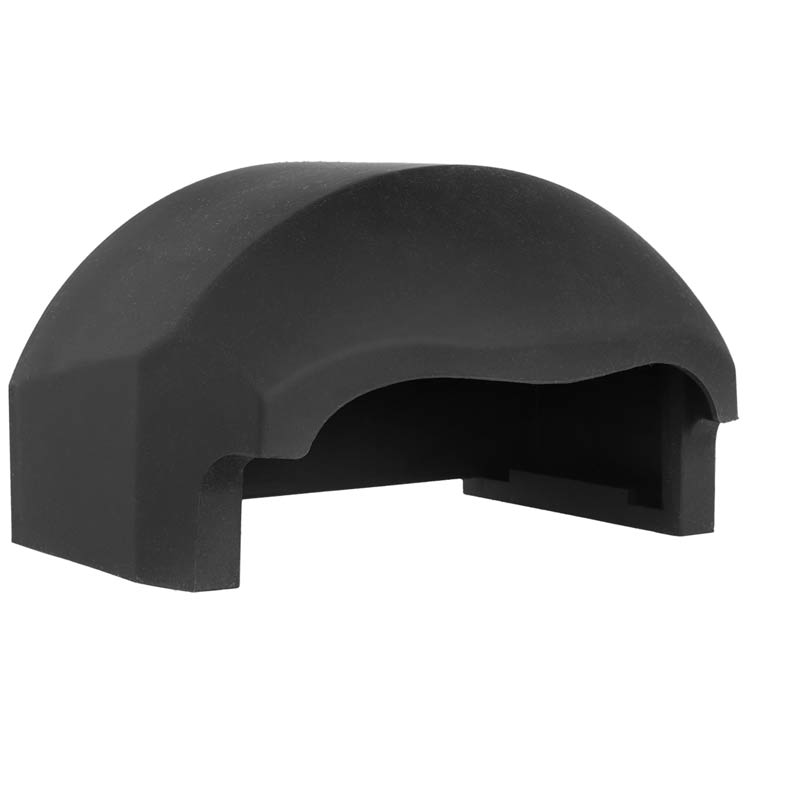

<li>Included with the press</li>
<li>Standard shape designed to fit various types of caps or hats</li>
<li>5-panel caps, visor caps, bucket hats...</li>
</ul>
</td>
</tr>
<tr>
<td>
<p style="text-align: center;"><img src="{{media url="wysiwyg/Plancha/plancha-gorras-magneticXH-CP1-d32.jpg"}}" alt="Cap pad dual transfer press Magnetic XH-CP1.1" width="150" height="150"><strong><br></strong></p>
</td>
<td><img src="{{media url="wysiwyg/Plancha/plancha-gorras-magneticXH-CP1-d29.jpg"}}" alt="Cap pad dual transfer press Magnetic XH-CP1.1" width="150" height="150"></td>
<td>
<ul>
<li>Ref. 056109 purchased separately</li>
<li>Rounded and elongated top shape, suitable for caps with a central seam on the front</li>
<li>Suitable for 6-panel caps like trucker, camper, baseball, hip-hop, cycling...</li>
</ul>
</td>
</tr>
<tr>
<td style="text-align: center;"><img src="{{media url="wysiwyg/Plancha/plancha-gorras-magneticXH-CP1-d31.jpg"}}" alt="Cap pad dual transfer press Magnetic XH-CP1.1" width="150" height="150"><strong><br></strong></td>
<td><img src="{{media url="wysiwyg/Plancha/plancha-gorras-magneticXH-CP1-d28.jpg"}}" alt="Cap pad dual transfer press Magnetic XH-CP1.1" width="150" height="150"></td>
<td>
<ul>

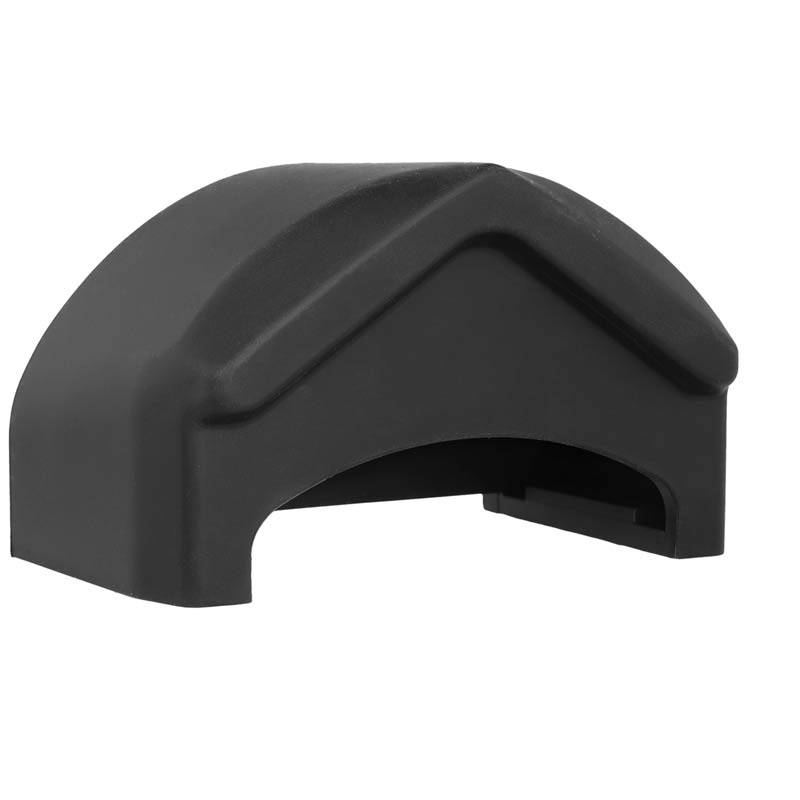

<li>Ref. 056108 purchased separately</li>
<li>Adapts to the seam at the top tip of the front panel of caps</li>
<li>For 2 to 5-panel retro caps, snapbacks, golf, vintage...</li>
</ul>
</td>
</tr>
</tbody>
</table>
<p> </p>
<p><a name="know-more3"></a></p>
<p><strong>THINGS TO KEEP IN MIND</strong></p>
<ul>
<li>The press has 2 temperature adjustment panels (1 for each heat plate) and 1 timer. Once the programmed time is completed, the press opens automatically</li>
</ul>
<p> </p>
<p><a name="know-more4"></a></p>
<p><strong>USE MANUAL</strong></p>
<p><a href="https://tinyurl.com/29sq3f5e" target="_blank" rel="noopener">Magnetic XH-CP1.1 Hat Press (.pdf - 1.61 MB)</a></p>
<p> </p>
<p><a name="know-more5"></a></p>
<p><strong>TECHNICAL DATA</strong></p>
<table>
<tbody>
<tr>
<td><strong>Press model</strong></td>
<td>Magnetic XH-CP1.1</td>
</tr>
<tr>
<td><strong>Type of press</strong></td>
<td>Electromagnetic/Caps</td>
</tr>
<tr>
<td><strong>Type of base plate</strong></td>
<td>Fixed / Heated</td>
</tr>
<tr>
<td><strong>Operation</strong></td>
<td>Electromagnet</td>
</tr>
<tr>
<td><strong>Controller</strong></td>
<td>Digital LCD screen</td>
</tr>
<tr>
<td><strong>Heat plate dimensions (cm)</strong></td>
<td><span class="azul-negrita">18.5 x 9.5</span></td>
</tr>
<tr>
<td><strong>Maximum thickness (cm)</strong></td>
<td><span class="azul-negrita">≤1</span></td>
</tr>
<tr>
<td><strong>Maximum pressure (kg)</strong></td>
<td><span class="azul-negrita">250</span></td>
</tr>
<tr>
<td><strong>Temperature range for both plates (ºC | ºF)<br></strong></td>
<td><span class="azul-negrita">0-210 | 0-410<br></span></td>
</tr>
<tr>
<td><strong>Temperature accuracy (ºC | ºF)<br></strong></td>
<td><span class="azul-negrita">±2 </span>|<span class="azul-negrita"> ±4<br></span></td>
</tr>
<tr>
<td><strong>Timer (s)<br></strong></td>
<td><span class="azul-negrita">0-300<br></span></td>
</tr>
<tr>
<td><strong>Voltage (V)<br></strong></td>
<td><span class="azul-negrita">110 </span>|<span class="azul-negrita"> 220<br></span></td>
</tr>
<tr>
<td><strong>Power (W)<br></strong></td>
<td><span class="azul-negrita">600<br></span></td>
</tr>
<tr>
<td><strong>Maximum opening<br></strong></td>
<td><span class="azul-negrita">80º<br></span></td>
</tr>
<tr>
<td><strong>Open press dimensions (cm)<br></strong></td>
<td><span class="azul-negrita">49 x 72 x 30<br></span></td>
</tr>
<tr>
<td><strong>Closed press dimensions (cm)</strong></td>
<td><span class="azul-negrita">49.7 x 48.5 x 30<br></span></td>
</tr>
<tr>
<td><strong>Packaging (cm)</strong></td>
<td><span class="azul-negrita">60.5 x 58.5 x 38.3<br></span></td>
</tr>
<tr>
<td><strong>Net weight (kg)</strong></td>
<td><span class="azul-negrita">20<br></span></td>
</tr>
<tr>
<td><strong>Gross weight (kg)</strong></td>
<td><span class="azul-negrita">23<br></span></td>
</tr>
</tbody>
</table>https://www.brildor.com/media/catalog/product/p/l/plancha-gorras-magneticxh-cp1-d22.jpg595instock0595000https://www.brildor.com/media/catalog/product/p/l/plancha-gorras-magneticxh-cp1-d22.jpg16506204954288652185/Heat Presses/Heat Presses/Heat Presses & Ovens/Cap Heat Presses/Heat Presses/Heat Presses & Ovens2024-08-26T06:51:07+0000
