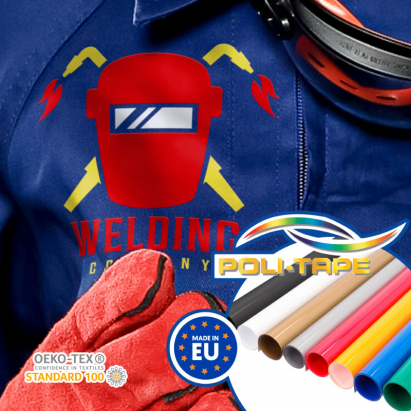

Flame Retardant Textile Vinyl - Poli-Flex Flame Retardant by Poli-Tape
Vinyl with fire-retardant properties suitable for application on garments that require fire safety.
Eco-friendly polyurethane sheet with a matte finish and thickness of 95 μ
Suitable for cotton, polyester, polyester-cotton, and polyester-acrylic textiles
Complies with EN ISO 4589-2 standard ensuring fire protection
Sales unit: roll of 1 m , 5 m and 25 m with a width of 50 cm
More information
Our availability is not enough?
Let us know how much you need
I WANT MORE
More information about the Flame Retardant Textile Vinyl - Poli-Flex Flame Retardant by Poli-Tape
INDEX
> Description
> Things to keep in mind
> Colour equivalence table
> Technical characteristics
> Transfer parameters
> Application instructions
> Wash resistance
> Cross-cutting service
> Weights
> Colour chart
> Technical data sheet
DESCRIPTION
Poli-Flex Flame Retardant 670 FR is a PU film (polyurethane) for fire safety.
Not suitable for nylon fabrics or water-repellent impregnated fabrics
The carrier or liner is a self-adhesive PET film (polyester) that acts as a transporter
The 25-metre roll has a cardboard core of Ø7.5 cm
The raw materials used are eco-friendly, containing no PVC, plasticisers or heavy metals, and are certified according to Oeko-Tex Standard 100
Manufactured in Germany by Poli-Tape
THINGS TO KEEP IN MIND
Can be cut with any plotter. It is recommended to use a 45º blade
COLOUR EQUIVALENCE TABLE
Find the Pantone, HEX, RGB, CMYK, and RAL equivalences:
Poli-Flex Flame Retardant Colour Equivalence Table (.pdf - 0.57 MB)
TECHNICAL CHARACTERISTICS
Vinyl Eco-friendly polyurethane
Thickness (μ) 95
Carrier/Liner PET film
Includes transporter Yes
Fabrics Polyester, cotton, cotton-polyester blends, and polyester-acrylic
Plotter cutting blade 45º
Laser cutting Yes
Weeding Hot/Warm
TRANSFER PARAMETERS
Temperature: 160 ºC
Pressure: 2.5 - 3.0 bar [medium pressure]
Time: 15 seconds
Pre-pressing the garment: 160 ºC , 4-5 seconds
APPLICATION INSTRUCTIONS
Cut the design in mirror mode with a cutting plotter
Remove excess vinyl (weeding)
Heat the press to 160 ºC
Place the garment on the press and pre-press for 4-5 seconds to remove wrinkles and moisture from the textile
Place the vinyl on the garment
Press with medium pressure for 15 seconds
Remove the liner while hot
WASH RESISTANCE
Wash inside out at a maximum temperature of 60 ºC
Only use colour or mild detergents
Suitable for tumble drying
CROSS-CUTTING SERVICE
If the formats we offer do not fully meet your needs, you can request custom cuts.
In the product sheet of the Cross-Cutting Service , we explain more details. This service is contracted and paid for separately. It is only applicable to the purchase of complete 25-metre rolls.
WEIGHTS
Roll (m) 1 5 25
Outer diameter (cm) -
-
Ø11.5
Weight (kg) 0.148 0.74 3.98
COLOUR CHART
Poli-Flex Flame Retardant Colour Chart (.pdf - 0.88 MB)
TECHNICAL DATA SHEET
We have adapted the formats to our customers' needs, and they may not match those listed in the following technical data sheet, prepared by the manufacturer.
Poli-Flex Flame Retardant Technical Data Sheet (.pdf - 0.035 MB)
