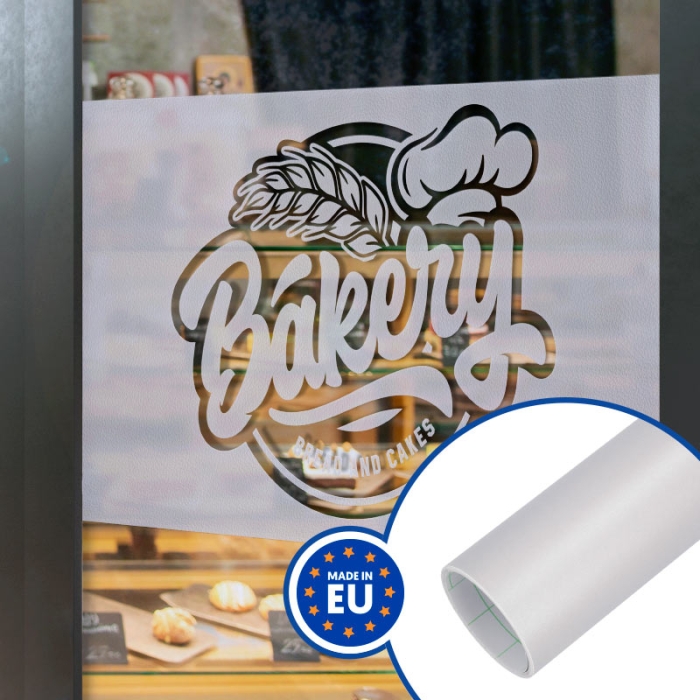

VACIDO4 is a translucent PVC film for glass labelling while preserving light entry.
Easy application. It is cut with a plotter, weeded, and manually adhered to the glass
Suitable for all types of glass
UV protection
The 50-metre roll has a cardboard core of Ø7.5 cm
Manufactured in Spain by Concreat
THINGS TO KEEP IN MIND
For complex or detailed designs, it may be useful to use a transfer tape, which you can find in Related Products
You can use a squeegee to adhere it to the glass and avoid air bubbles
The glass surface must be clean, free of dust, grease, or any other contaminants
If cutting with a plotter, it is recommended to apply a pressure of 100-110 gf
TECHNICAL DATA
Vinyl (µ)
Calendered PVC of 90
Weight (g/m2)
140 ±10%
Adhesive (µ)
Solvent of 30
Liner (µ)
Siliconised paper (PEK) of 140
Outdoor durability (years)
5
Thermal resistance (ºC)
Between -10 and 60
APPLICATION INSTRUCTIONS
Clean the glass. You can use an alcohol-based cleaner to remove grease
Cut the vinyl with a plotter
Weed the excess vinyl (weeding operation)
Gradually remove the liner while adhering the vinyl to the glass with the help of a squeegee. Spraying a little water can help reposition it more easily if needed
