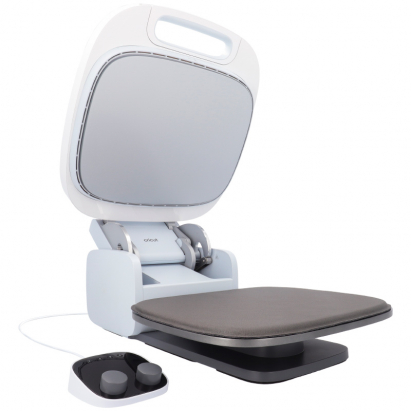

Heat Press - Cricut Autopress

More information about the Cricut Autopress

INDEX

> Description

> Things to keep in mind

> What does this press include?

> User guide

> Print area template

> Instructions for use

> Technical details

DESCRIPTION

• Suitable for any personalisation technique that requires heat transfer: sublimation printing, transfer, vinyl, DTF printing...
• Zero Effort closing system which allows you to lower the heating plate with just 2 fingers and activate it by pressing the handle

• Control pod with 4 numbered buttons with preset temperature and time settings. You can edit and save your own settings using the dials
• Side lock switch that keeps the press closed when not in use. It must be pressed to open the press
• Wide opening angle up to 62º
• Auto-off: turns off automatically after 13 min of inactivity
• Ceramic-coated heat plate
• Includes a silicone pressing mat with a non-slip base for the platen. Prevents the item to be personalised from moving, protects the platen and eliminates humidity
• Made of sturdy steel with a special plastic casing that does not burn when touched
• Takes only 8 min to reach the maximum temperature
• Can be set in Fahrenheit (ºF) or Celsius (ºC)
• CE marking guarantees that this machine meets the technical requirements of the European Union
• Warranty: 3 years against manufacturing defects

THINGS TO KEEP IN MIND

• Although it is suitable for the DTF technique, it is not suitable for DTF transfer film curing. This is because the pressure adjustment is done automatically, making it impossible to adjust the height
• The heating plate is slightly smaller than the platen
• To save time and temperature setting you must modify the preset setting and press the chosen numbered button for 3 seconds
• Before using it for the first time, you must activate the press and the control pod in Design Space by connecting it to your computer
• The timer activates when pressing the handle of the press
• The red light indicates that the control pod is not connected or that the press is locked

WHAT DOES THIS PRESS INCLUDE?

USER GUIDE

• User manual Cricut Autopress (.pdf - 0.20 MB)

PRINT AREA TEMPLATE

To make it easier for you, we have provided the following template with the maximum print area of the plate. To see the layers of the template, open the PDF file using Photoshop

• Print area template Cricut Autopress (.pdf - 0.66 MB)

INSTRUCTIONS FOR USE

1. With the help of a computer, register the press in Cricut's Design Space. You can download it from this link
2. Go to New Product Setup and select Heat Press
3. Choose the Cricut Autopress
4. Connect the USB cable from the control pod to your computer. It will be connected when the letters USB appear on the control panel
5. Press activate and wait for the press to activate
6. Unplug the control pod from your computer
7. Connect the press to the power supply
8. Plug the USB cable from the panel into the back of the press
9. Unlock and switch it on
10. Place the pressing mat on the press' lower platen then put the blank to be personalised
11. Apply the vinyl, transfer paper or design you want to transfer
12. Wait for the press to heat up
13. Make the appropriate time and temperature settings for the material you want to personalise or press one of the buttons with preset settings
14. Wait for the orange light to turn green
15. Close the iron and press the handle to activate the timer
16. The press will auto-release when pressing cycle is complete

TECHNICAL DETAILS
