Bags to personalise with a sublimation oven. They guarantee uniform transfers on objects where it is difficult to print with an iron. Place the object with the printed paper in the bag, flap to fit and place in the oven.
Made of white PVC. Open at the top and bottom
Available in roll format: to cut bags to size

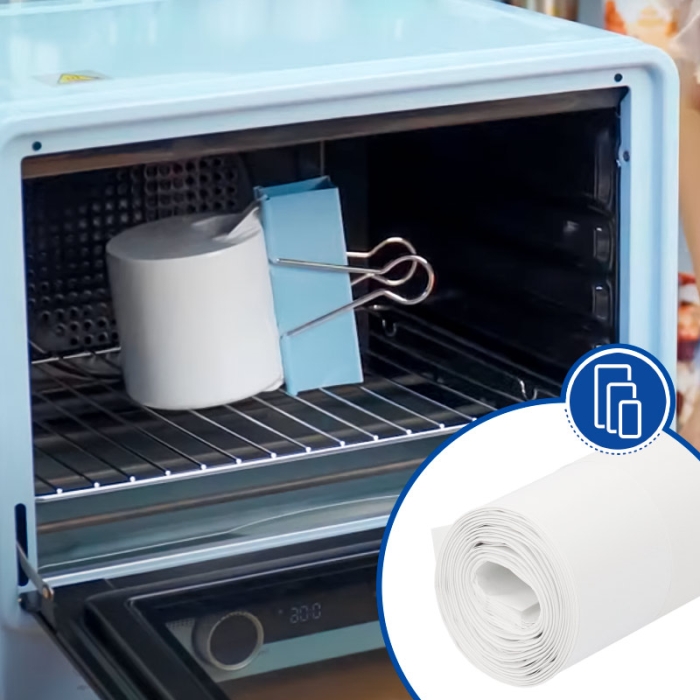

Clamps for attaching bags to objects with or without handles
Simple and economical solution as an alternative to clamps. For sublimating objects with uneven surfaces, bevelled edges or other features that make them difficult to print with plates, heating elements and clamps
Easily removed from the object after sublimation, even on smooth, metallic surfaces
To adhere the bags to the object to be sublimated you can use a heat gun or stripper. See Related Products
In Related Products you will find other alternatives to sublimate with a sublimation oven
THINGS TO KEEP IN MIND
Compatible with any model of heat sublimation oven. Not tested in a vacuum oven
When taking the item out of the oven, it is recommended to remove the hot bag to avoid it from sticking to areas not covered with sublimation paper
The 450 m roll has a Ø7.5 cm cardboard core
CLAMPS
They fit the foil perfectly to the object, guaranteeing uniform embossing
The special handle grippers have a greater depth. Facilitates the insertion of the handles of objects and allows the customisable area to be enlarged
The clamp with Ref. 032403 has a silicone pad inside. It avoids marks on the surface when pressing on parts of the object such as handles
CHOOSING THE RIGHT BAG
Measure the sublimation object (width x height)
Choose a bag about 10 cm higher than the object. There should be 5 cm left at the top and 5 cm at the bottom. For example, if the item is 10 cm high, the bag should be about 20 cm high
Note: the width of the mug should correspond to the sum of the base + the mug-to-handle distance
INSTRUCTIONS FOR USE
Print the design in mirror or direct mode, according to the sublimation instructions of the item
Hold the paper's printed side against the item to be personalised and fix it with heat-resistant tape. Make sure to cover the entire surface
Insert the item into the bag
Use a heat gun to apply heat until you can see that it shrinks correctly all over the printing area
Place the object in the oven and sublimate it
With the help of a protective glove, remove the finished sublimated item
https://www.brildor.com/en/heat-shrink-bags-sublimation-easywrap49451Heat Shrink Bags for Sublimation - EasyWrap<p><a name="know-more"></a></p>
<h2>More information about the EasyWrap heat shrink bags for sublimation</h2>
<p> </p>
<p><strong>INDEX</strong></p>
<p>> <a href="#know-more1">Description</a></p>
<p>> <a href="#know-more2">Things to keep in mind</a></p>
<p>> <a href="#know-more8">Clamps</a></p>
<p>> <a href="#know-more3">Choosing the right bag</a></p>
<p>> <a href="#know-more4">Instructions for use</a></p>
<p>> <a href="#know-more5">Example of use</a></p>
<p>> <a href="#know-more7">Measurements of the clamps</a></p>
<p>> <a href="#know-more6">Related posts</a></p>
<p> </p>
<p class="enlace"><a id="know-more1"></a> </p>
<p><strong>DESCRIPTION</strong></p>
<ul>
<li>Simple and economical solution as an alternative to clamps. For sublimating objects with uneven surfaces, bevelled edges or other features that make them difficult to print with plates, heating elements and clamps</li>
<li>Easily removed from the object after sublimation, even on smooth, metallic surfaces</li>
<li>To adhere the bags to the object to be sublimated you can use a heat gun or stripper. See <strong>Related Products</strong></li>
<li>In Related Products you will find other alternatives to sublimate with a sublimation oven</li>
</ul>
<p> </p>
<p class="enlace"><a id="know-more2"></a> </p>
<p><strong>THINGS TO KEEP IN MIND</strong></p>
<ul>
<li>Compatible with any model of <strong>heat sublimation oven</strong>. Not tested in a vacuum oven<span class="azul-brildor-negrita"><br></span></li>
<li>When taking the item out of the oven, it is recommended to remove the hot bag to avoid it from sticking to areas not covered with sublimation paper</li>
<li>The <span class="azul-negrita">450 m</span> roll has a <span class="azul-negrita">Ø7.5 cm</span> cardboard core</li>
</ul>
<p> </p>
<p class="enlace"><a id="know-more8"></a> </p>
<p><strong>CLAMPS</strong></p>
<ul>
<li>They fit the foil perfectly to the object, guaranteeing uniform embossing</li>
<li>The special handle grippers have a greater depth. Facilitates the insertion of the handles of objects and allows the customisable area to be enlarged</li>
<li>The clamp with Ref. 032403 has a silicone pad inside. It avoids marks on the surface when pressing on parts of the object such as handles</li>
</ul>
<p> </p>
<p class="enlace"><a id="know-more3"></a> </p>
<p><strong>CHOOSING THE RIGHT BAG<br></strong></p>
<ol>
<li>Measure the sublimation object (width x height)</li>
<li>Choose a bag about <span class="azul-negrita">10 cm</span> higher than the object. There should be <span class="azul-negrita">5 cm</span> left at the top and <span class="azul-negrita">5 cm</span> at the bottom. For example, if the item is <span class="azul-negrita"> 10 cm</span> high, the bag should be about <span class="azul-negrita">20 cm</span> high</li>
</ol>
<p>Note: the width of the mug should correspond to the sum of the <strong>base + the mug-to-handle distance</strong></p>
<p> </p>
<p class="enlace"><a id="know-more4"></a> </p>
<p><strong>INSTRUCTIONS FOR USE</strong></p>
<ul>
<li>Print the design in <strong>mirror or direct mode</strong>, according to the sublimation instructions of the item<strong><br></strong></li>
<li>Hold the paper's printed side against the item to be personalised and fix it with heat-resistant tape. Make sure to cover the entire surface</li>
<li>Insert the item into the bag</li>
<li>Use a heat gun to apply heat until you can see that it shrinks correctly all over the printing area</li>
<li>Place the object in the oven and sublimate it</li>
<li>With the help of a protective glove, remove the finished sublimated item</li>
<li>Remove the bag and the paper while hot</li>
<li>Let the item cool down</li>
</ul>
<p> </p>
<p class="enlace"><a id="know-more5"></a> </p>
<p><strong>EXAMPLE OF USE<br></strong></p>
<table>
<tbody>
<tr>
<td style="text-align: center; vertical-align: middle;"><strong>Reference no</strong></td>
<td style="text-align: center; vertical-align: middle;"><strong>Bag dimensions</strong></td>
<td style="text-align: center; vertical-align: middle;" colspan="2"><strong>Example <br></strong></td>
</tr>
<tr>
<td style="text-align: center; vertical-align: middle;"><strong>049292</strong></td>
<td style="text-align: center; vertical-align: middle;"><span class="azul-negrita">12.5 x 25 cm</span></td>
<td style="text-align: center; vertical-align: middle;">Mugs (<span class="azul-negrita">14 oz</span>)</td>
<td style="text-align: center; vertical-align: middle;">
<p><a title="035279" href="https://www.brildor.com/en/sublimation-mug-15oz" target="_blank" rel="nofollow noopener">035279</a></p>
</td>
</tr>
<tr>
<td style="text-align: center; vertical-align: middle;"><strong>049293</strong></td>
<td style="text-align: center; vertical-align: middle;"><strong><span class="azul-negrita">15 x 30 cm</span></strong></td>
<td style="text-align: center; vertical-align: middle;">Beer steins</td>
<td style="text-align: center; vertical-align: middle;">
<p><a title="927834" href="https://www.brildor.com/en/sublimation-beer-stein-ceramic" target="_blank" rel="nofollow noopener">927834</a></p>
</td>
</tr>
<tr>
<td style="text-align: center; vertical-align: middle;"><strong>049295</strong></td>
<td style="text-align: center; vertical-align: middle;"><span class="azul-negrita">16.5 x 23 cm</span></td>
<td style="text-align: center; vertical-align: middle;">Mugs (<span class="azul-negrita">11 oz</span>)</td>
<td style="text-align: center; vertical-align: middle;">
<p><a href="https://www.brildor.com/en/sublimation-mug-grade-aa-white" target="_blank" rel="nofollow noopener">035279</a></p>
</td>
</tr>
<tr>
<td style="text-align: center; vertical-align: middle;"><strong>049294</strong></td>
<td style="text-align: center; vertical-align: middle;"><strong><span class="azul-negrita">17.5 x 23 cm</span></strong></td>
<td style="text-align: center; vertical-align: middle;">Latte mugs (<span class="azul-negrita">12-17 oz</span>)</td>
<td style="text-align: center; vertical-align: middle;">
<p><a title="036800" href="https://www.brildor.com/en/sublimation-conical-mug-spoon" target="_blank" rel="nofollow noopener">036800</a></p>
<p><a title="928052" href="https://www.brildor.com/en/sublimation-conical-mug" target="_blank" rel="nofollow noopener">928052</a></p>
</td>
</tr>
<tr>
<td style="text-align: center; vertical-align: middle;"><strong>049297</strong></td>
<td style="text-align: center; vertical-align: middle;"><strong><span class="azul-negrita">19.5 x 15 cm</span></strong></td>
<td style="text-align: center; vertical-align: middle;">Plates and bowls</td>
<td style="text-align: center; vertical-align: middle;">
<p><a title="042158" href="https://www.brildor.com/en/sublimation-dog-food-bowl" target="_blank" rel="nofollow noopener">042158</a></p>
</td>
</tr>
<tr>
<td style="text-align: center; vertical-align: middle;"><strong>049296</strong></td>
<td style="text-align: center; vertical-align: middle;"><span class="azul-negrita">33.5 x 15 cm</span></td>
<td style="text-align: center; vertical-align: middle;">Bowls</td>
<td style="text-align: center; vertical-align: middle;">-</td>
</tr>
</tbody>
</table>
<ul>
<li><span style="font-size: 10pt;">Approximate measurements for guidance purposes only</span></li>
</ul>
<p> </p>
<p class="enlace"><a id="saber-mas4"></a> </p>
<p><strong>MEASUREMENTS OF THE CLAMPS<br></strong></p>
<table>
<tbody>
<tr>
<td><strong>Reference</strong></td>
<td style="text-align: center;"><strong>Length of<br>clamping (mm)</strong></td>
<td style="text-align: center;"><strong>Distance<br>handle-cup (mm)</strong></td>
<td style="text-align: center;"><strong>Aperture<br>max (mm)</strong></td>
</tr>
<tr>
<td style="text-align: center;"><strong>032403</strong></td>
<td style="text-align: center;"><span class="azul-negrita">100<br></span></td>
<td style="text-align: center;"><span class="azul-negrita">55<br></span></td>
<td style="text-align: center;"><span class="azul-negrita">60<br></span></td>
</tr>
<tr>
<td style="text-align: center;"><strong>049286</strong></td>
<td style="text-align: center;"><span class="azul-negrita">130</span></td>
<td style="text-align: center;"><span class="azul-negrita">50</span></td>
<td style="text-align: center;"><span class="azul-negrita">32</span></td>
</tr>
<tr>
<td style="text-align: center;"><strong>051211</strong></td>
<td style="text-align: center;"><span class="azul-negrita">145</span></td>
<td style="text-align: center;"><span class="azul-negrita">30</span></td>
<td style="text-align: center;"><span class="azul-negrita">40<br></span></td>
</tr>
<tr>
<td style="text-align: center;"><strong>053892</strong></td>
<td style="text-align: center;"><span class="azul-negrita">160</span></td>
<td style="text-align: center;"><span class="azul-negrita">40</span></td>
<td style="text-align: center;"><span class="azul-negrita">50</span></td>
</tr>
<tr>
<td style="text-align: center;"><strong>054588</strong></td>
<td style="text-align: center;"><span class="azul-negrita">180</span></td>
<td style="text-align: center;"><span class="azul-negrita">40</span></td>
<td style="text-align: center;"><span class="azul-negrita">50</span></td>
</tr>
</tbody>
</table>
<p> </p>
<p><a name="know-more6"></a></p>
<p><strong>RELATED POSTS</strong></p>
<p><a title="Oven Sublimation Using Heat Shrink Bags" href="https://www.brildor.com/blog/en/oven-sublimation-using-heat-shrink-bags/" target="_blank" rel="nofollow noopener">Oven Sublimation Using Heat Shrink Bags</a></p>https://www.brildor.com/media/catalog/product/b/o/bolsas-termoencogibles-easywrap-pinza-sujecion-d14.jpg1.45instock01.45000https://www.brildor.com/media/catalog/product/b/o/bolsas-termoencogibles-easywrap-pinza-sujecion-d14.jpg84282039225580280334885550138/Sublimation/Heat Presses/Sublimation/Accessories & Consumables/Heat Presses/Spare Parts & Accessories/Sublimation Oven Accessories/Heat Presses/Spare Parts & Accessories/Heat Presses/Spare Parts & Accessories/Todos los Accesorios2023-01-12T06:54:42+0000
