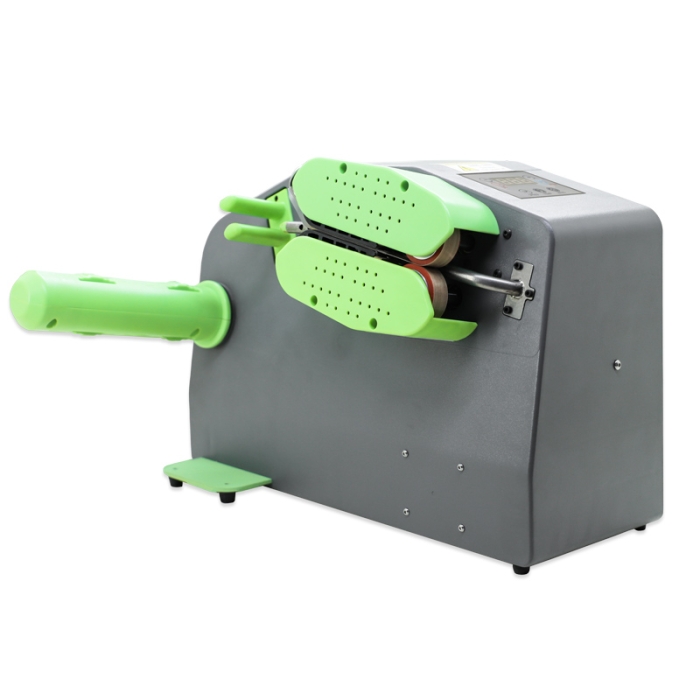

Inflation and Bubble Protection Machine

More information about the Inflation and Bubble Protection Machine

INDEX

> Description

> Air bags

> Instructions for use

> Recommended inflation parameters per reel

> Recommendations for use

> Technical data

> Dimensions and weights of the machine

> Dimensions and roll weights of the bags air inflators

DESCRIPTION

• Compact and quiet machine with perfect performance for small to medium volumes of shipments
• Ideal for use in small factories, warehouses and shops
• Support bar with protrusions for easy fitting and to prevent roll deflection during inflation
• Extendable bottom piece from 5.5 cm to 15 cm. Ensures the stability of the machine during inflation and helps to reduce the leverage effect generated by the weight of the roll
• Inflation tube with constant air flow for uniform filling of the bags
• Conveyor belt made of high quality iron, securely tracks and seals the air bags to prevent wrinkling
• Inner blade cuts the side of the bag to expel excess air left over after filling and heat sealing
• LCD digital control panel for inflation settings. Adjusts temperature, speed and air flow parameters
• Includes 2 hex keys for installation of support shaft. Also spare parts for blade, conveyor belt and high temperature sealing tape
• CE certified (EMC, LVD, RoHS) to ensure compliance with European Community quality and safety standards

AIR BAGS

• Suitable for filling empty spaces inside boxes, wrapping and protecting more fragile products and ensuring safe transport
• Pre-cut rolls that are divided into sections of different widths depending on the type of roll (13 cm, 26 cm, 26 cm or 33 cm)
• One bag is the minimum divisible unit, easily separated from the roll thanks to a pre-cutter
• Equivalent packaging to conventional bubble wrap. Significantly reduces the amount of material used
• Each roll type is designed for specific uses. For example, use the 8-pad format for wrapping cups or vases or the 1-pad format with a cushion-like appearance for filling gaps
• Ø5 cm rigid cardboard mandrel on which the bags are rolled

INSTRUCTIONS FOR USE

1. Extend the green lower leg
2. Unpack the roll of air bags and look for the opening on the side. To do this, locate the end of the first horizontal heatsealing line
3. Fit the paper roll onto the support shaft so that the side of the opening is on the inside
4. Thread the start of the bag through the green guiding pieces and dress the inflation tube until it reaches the conveyor belt
5. Set the desired parameters for speed (SPEED button), temperature (TEMP button) and airflow (WIND button) using the (+) and (-) buttons
6. Press and hold the red button until the bag reaches the end of the belt. You will see how the belt is activated and transports the bag through its rails
7. Press the blue button. This activates the filling of the bag with air and the heat sealing, simultaneously
8. Press the blue button again to stop filling when you have enough packaging material

RECOMMENDED INFLATION PARAMETERS PER ROLL

RECOMMENDATIONS FOR USE

• Avoid using air bag rolls weighing more than 5 kg. This could damage the shaft with the leverage effect generated by the weight of the roll
• Do not switch on the machine without having installed a roll of bags beforehand
• Regularly check the condition of the blade and replace it if you notice any defects or malfunctions
• If you notice that the heat sealing is not complete, check the temperature and increase it if necessary.
• Excessively high speed can lead to unbalanced and poor filling. It is important to use an appropriate speed setting so that the machine has enough time to fill each bag evenly
• The air flow should be set according to the weight of the material. Too high a flow rate could break the bags or generate streaks that would compromise the protective ability of this packaging material

TECHNICAL DATA

DIMENSIONS AND MACHINE WEIGHTS

DIMENSIONS AND WEIGHTS OF THE AIR BAG ROLLS

^(*) Dimensions of the bags o pads without air.
