Compact desktop design: includes 2 metal roll holders
Versatile: in addition to laminating and encapsulating, it is useful for transporting UV DTF designs, applying reactive foil, laminating vinyl, card stock...
Adaptable: accommodates different types of film rolls:
Transfer film: for transferring UV DTF designs onto any object for customization
Laminating film: to protect and add rigidity to posters, documents, and labels
Adjustable: suitable for DIN sizes A3, A4, A5, and A6
3 lamination systems: cold, hot single-sided, or hot double-sided
Uniform heat and pressure distribution: thanks to the 4 rollers it incorporates
Adjustable temperature and speed control: via control panel
Optimal performance: the ventilation grid dissipates heat generated during use
Safe: overheat protection system. It automatically shuts off when the temperature reaches 130 °C
THINGS TO KEEP IN MIND
Adjust pressure and temperature according to the personalization technique to be used
In case of a jam, use the forward and reverse switch
Leave enough space behind the laminator for smooth material output
To avoid heat build-up after prolonged use, place it on a flat, stable surface with good ventilation
WHAT DOES THE LAMINATOR INCLUDE?
1
Manual safety cutter
1
Corner cutter
1
Phillips screwdriver
13
M3 Phillips screws
1
Hex Allen key
1
Power cable
1
Detachable tray
1
Film holder
1
User manual
1
CE certificate
INSTRUCTIONS FOR USE WITH UV DTF PRINTS
Print the design onto the DTF adhesive film using a rigid printer
Adhere the transfer film onto the freshly printed design and use a spatula to remove bubbles
Laminating both films together (adhesive + transfer) by applying heat
Once laminated, cut the designs to the desired shape
Remove the adhesive film, leaving the design adhered to the transfer
Apply the design onto the desired surface and remove the transfer
INSTRUCTIONS FOR USE WITH REACTIVE FOIL
Print the design with a laser printer
Place the foil over the design with the shiny side facing up
Pass the design and foil together through the laminator, applying heat and pressure
Allow to cool and remove the foil to reveal the decorated design
USAGE RECOMMENDATIONS FOR NORMAL LAMINATION
Turn off and unplug the laminator before handling it
Place the laminating film roll on the upper shaft, and on the lower if double-sided lamination
Single-sided lamination: adhesive side of the film facing down
Double-sided lamination:
Upper roll: adhesive side facing down
Lower roll: adhesive side facing up
Pass the end of the film between the heating and pressure rollers, following the manual that comes with the machine
Use the guides and tension bars to keep the film taut and wrinkle-free
Turn on the laminator and perform a test to ensure uniform lamination

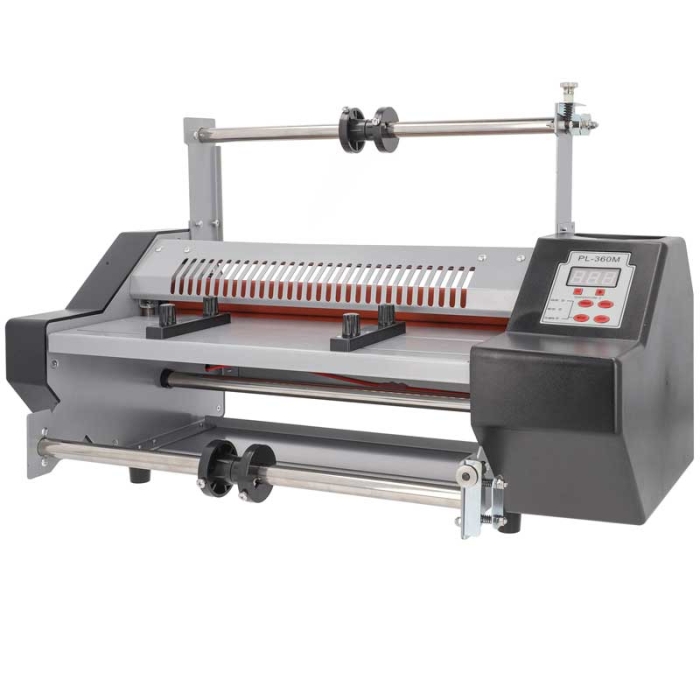

https://www.brildor.com/en/laminator-pl-360m53303Laminator PL-360M<p><a name="know-more"></a></p>
<h2>More information about the Laminator PL-360M</h2>
<p> </p>
<p><strong>INDEX</strong></p>
<p>> <a href="#know-more1">Description</a></p>
<p>> <a href="#know-more2">Things to keep in mind</a></p>
<p>> <a href="#know-more3">What does the laminator include?</a></p>
<p>> <a href="#know-more4">Instructions for use with UV DTF prints</a></p>
<p>> <a href="#know-more5">Instructions for use with reactive foil</a></p>
<p>> <a href="#know-more6">Usage recommendations for normal lamination</a></p>
<p>> <a href="#know-more7">Laminator measurements and technical data</a></p>
<p>> <a href="#know-more8">Film measurements</a></p>
<p> </p>
<p><a name="know-more1"></a></p>
<p><strong>DESCRIPTION</strong></p>
<ul>
<li><strong>Compact desktop design</strong>: includes 2 metal roll holders</li>
<li><strong>Versatile</strong>: in addition to laminating and encapsulating, it is useful for transporting <span class="azul-brildor-negrita">UV DTF</span> designs, applying <strong>reactive foil</strong>, <strong>laminating vinyl, card stock</strong>...</li>
<li><strong>Adaptable</strong>: accommodates different types of film rolls:
<ul>
<li>Transfer film: for transferring UV DTF designs onto any object for customization</li>
<li>Laminating film: to protect and add rigidity to posters, documents, and labels</li>
</ul>
</li>
<li><strong>Adjustable</strong>: suitable for DIN sizes A3, A4, A5, and A6</li>
<li><strong>3 lamination systems</strong>: cold, hot single-sided, or hot double-sided</li>
<li><strong>Uniform heat and pressure distribution</strong>: thanks to the 4 rollers it incorporates</li>
<li><strong>Adjustable temperature and speed control</strong>: via control panel <strong><br></strong></li>
<li><strong>Optimal performance</strong>: the ventilation grid dissipates heat generated during use</li>
<li><strong>Safe</strong>: overheat protection system. It automatically shuts off when the temperature reaches <span class="azul-negrita">130 °C</span></li>
</ul>
<p> </p>
<p><a name="know-more2"></a></p>
<p><strong>THINGS TO KEEP IN MIND</strong></p>
<ul>
<li>Adjust pressure and temperature according to the personalization technique to be used</li>
<li>In case of a jam, use the forward and reverse switch</li>
<li>Leave enough space behind the laminator for smooth material output</li>
<li>To avoid heat build-up after prolonged use, place it on a flat, stable surface with good ventilation</li>
</ul>
<p> </p>
<p><a name="know-more3"></a></p>
<p><strong>WHAT DOES THE LAMINATOR INCLUDE?</strong></p>
<table>
<tbody>
<tr>
<td><span class="azul-negrita">1 </span></td>
<td>Manual safety cutter</td>
</tr>
<tr>
<td><span class="azul-negrita">1</span></td>
<td>Corner cutter</td>
</tr>
<tr>
<td><span class="azul-negrita">1</span></td>
<td>Phillips screwdriver</td>
</tr>
<tr>
<td><span class="azul-negrita">13<br></span></td>
<td>M3 Phillips screws</td>
</tr>
<tr>
<td><span class="azul-negrita">1<br></span></td>
<td>Hex Allen key</td>
</tr>
<tr>
<td><span class="azul-negrita">1<br></span></td>
<td>Power cable</td>
</tr>
<tr>
<td><span class="azul-negrita">1<br></span></td>
<td>Detachable tray</td>
</tr>
<tr>
<td><span class="azul-negrita">1<br></span></td>
<td>Film holder</td>
</tr>
<tr>
<td><span class="azul-negrita">1<br></span></td>
<td>User manual</td>
</tr>
<tr>
<td><span class="azul-negrita">1<br></span></td>
<td>CE certificate</td>
</tr>
</tbody>
</table>
<p> </p>
<p><a name="know-more4"></a></p>
<p><strong>INSTRUCTIONS FOR USE WITH UV DTF PRINTS</strong></p>
<ol>
<li>Print the design onto the DTF adhesive film using a rigid printer</li>
<li>Adhere the <strong>transfer film</strong> onto the freshly printed design and use a spatula to remove bubbles</li>
<li>Laminating both films together (adhesive + transfer) by applying heat</li>
<li>Once laminated, cut the designs to the desired shape</li>
<li>Remove the adhesive film, leaving the design adhered to the transfer</li>
<li>Apply the design onto the desired surface and remove the transfer</li>
</ol>
<p> </p>
<p><a name="know-more5"></a></p>
<p><strong>INSTRUCTIONS FOR USE WITH REACTIVE FOIL</strong></p>
<ol>
<li>Print the design with a laser printer</li>
<li>Place the foil over the design with the shiny side facing up</li>
<li>Pass the design and foil together through the laminator, applying heat and pressure</li>
<li>Allow to cool and remove the foil to reveal the decorated design</li>
</ol>
<p> </p>
<p><a name="know-more6"></a></p>
<p><strong>USAGE RECOMMENDATIONS FOR NORMAL LAMINATION <br></strong></p>
<ul>
<li>Turn off and unplug the laminator before handling it</li>
<li>Place the <strong>laminating film</strong> roll on the upper shaft, and on the lower if double-sided lamination
<ul>
<li>Single-sided lamination: adhesive side of the film facing down</li>
<li>Double-sided lamination:
<ul>
<li>Upper roll: adhesive side facing down</li>
<li>Lower roll: adhesive side facing up</li>
</ul>
</li>
</ul>
</li>
<li>Pass the end of the film between the heating and pressure rollers, following the manual that comes with the machine</li>
<li>Use the guides and tension bars to keep the film taut and wrinkle-free</li>
<li>Turn on the laminator and perform a test to ensure uniform lamination</li>
</ul>
<p> </p>
<p><a name="know-more7"></a></p>
<p><strong>LAMINATOR MEASUREMENTS AND TECHNICAL DATA<br></strong></p>
<table>
<tbody>
<tr>
<td><strong>Model</strong></td>
<td>PL-360M</td>
</tr>
<tr>
<td><strong>Laminator (cm)<br></strong></td>
<td><span class="azul-negrita">56.5 x 31.5 x 25 </span></td>
</tr>
<tr>
<td><strong>Suitable DIN sizes<br></strong></td>
<td>A3, A4, A5, A6</td>
</tr>
<tr>
<td><strong>Max width (cm)</strong></td>
<td><span class="azul-negrita">36</span></td>
</tr>
<tr>
<td><strong>Max lamination thickness (mic)<br></strong></td>
<td><span class="azul-negrita">300</span></td>
</tr>
<tr>
<td><strong>Speed (mm/min)</strong></td>
<td><span class="azul-negrita">650</span></td>
</tr>
<tr>
<td><strong>Roller diameter (cm)</strong></td>
<td><span class="azul-negrita">Ø2.8</span></td>
</tr>
<tr>
<td><strong>Power (W)</strong></td>
<td><span class="azul-negrita">600</span></td>
</tr>
<tr>
<td><strong>Net weight (kg)</strong></td>
<td><span class="azul-negrita">10</span></td>
</tr>
</tbody>
</table>
<p> </p>
<p><a name="know-more8"></a></p>
<p><strong>FILM MEASUREMENTS</strong></p>
<table>
<tbody>
<tr>
<td><strong>Reference<br></strong></td>
<td style="text-align: center;"><strong>050015</strong></td>
<td style="text-align: center;"><strong>054906</strong></td>
</tr>
<tr>
<td><strong>Application</strong></td>
<td style="text-align: center;">UV DTF</td>
<td style="text-align: center;">Lamination</td>
</tr>
<tr>
<td><strong>Roll</strong></td>
<td style="text-align: center;"><span class="azul-negrita">31cm x 100m</span></td>
<td style="text-align: center;"><span class="azul-negrita">32cm x 200m</span></td>
</tr>
<tr>
<td><strong>Microns (μ)<br></strong></td>
<td style="text-align: center;"><span class="azul-negrita">90</span></td>
<td style="text-align: center;"><span class="azul-negrita">25</span></td>
</tr>
<tr>
<td><strong>Inner roll core (cm)</strong></td>
<td style="text-align: center;"><span class="azul-negrita">Ø7.6</span></td>
<td style="text-align: center;"><span class="azul-negrita">Ø2.5</span></td>
</tr>
<tr>
<td><strong>Outer roll diameter (cm)</strong></td>
<td style="text-align: center;"><span class="azul-negrita">Ø13.5<br></span></td>
<td style="text-align: center;"><span class="azul-negrita">Ø8.5</span></td>
</tr>
</tbody>
</table>https://www.brildor.com/media/catalog/product/l/a/laminadora-a3-d1.jpg29.9instock029.9000https://www.brildor.com/media/catalog/product/l/a/laminadora-a3-d1.jpg45281503427711433394341153267/Arts & Crafts/Arts & Crafts/Machines/Vinyl/Transfer Paper /Vinyl/Tools & Accessories/Transfer Paper /Accessories & Consumables2024-12-18T10:36:34+0000
