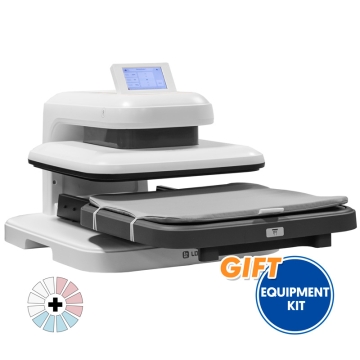

Heat press suitable for any heat personalisation technique: dye sublimation printing, transfer, vinyl, DTF and more
Control panel with digital screen to set temperature and time
Automatic opening with timer and beeper sound
Automatic pressure adjustment
4 time and temperature presets
Saves up to 2 customised temperature and time settings
Double heating tube lower platen for more even heat transfers
Reaches maximum temperature in 6 minutes
Emergency stop. Press any button to restart and open the press
Features foam pad for even heat distribution. Secured to the lower platen by elastic bands to prevent it from moving. Can be easily removed
Auto shut-off after 10 minutes of inactivity
Top heat plate with protective casing to prevent burns
CE certificate for European conformity
Warranty: 3 years against manufacturing defects
THINGS TO KEEP IN MIND
Although it is suitable for DTF, it is not suitable for film curing. This is because the pressure adjustment is done automatically, making it impossible to adjust the height
WHAT DOES THIS PRESS INCLUDE?
1
Teflon sheet (50.8 x 40.8 cm)
1
User manual
CONTROL PANEL
Power button: ON/OFF
Start button (R): manual way to start pressing. It will turn green when the press reaches the preset pressing temperature. When pressed, the heat plate will lower and will start pressing. In case you need to open the press before the time is up, press this button
Auto button (A): automatic mode. When pressed, the heat plate will close automatically when the lower platen slides in, and the pressing will start
Temperature button: temperature setting. Press and hold to change from ºC to ºF and vice versa
Time button: time setting
+ / - buttons: increase and decrease temperature and time
Preset button (roulette): includes 4 different preset time and temperature settings. Press to switch from one mode to another
Custom button (wheel): to save up to 2 custom time and temperature settings
DEFAULT / CUSTOMISABLE SETTINGS
4 preset settings
Press the preset button to choose between 4 preset temperature and time settings. Each time you press this button, a preset time and temperature will appear together with the number of the setting you are in (1, 2, 3 or 4):
Preset
Temperature (ºC | ºF)
Time (s)
1
150 | 300
15
2
160 | 320
15
3
165 | 330
20
4
200 | 390
40
Personalised settings
This press offers the possibility to preset 2 temperature and time settings.
Press the Custom button to customise 1 time and temperature setting. It will be saved as A
To customise a second mode, press this button again. It will be saved as B
Press and hold this button for 2 seconds to exit this mode, and the settings will be stored in the machine
https://www.brildor.com/en/loklik-auto-heat-press50583LokLik Auto Heat Press 38x38cm<p class="enlace"><a id="know-more"></a> </p>
<h2>More information about the LokLik Portable Heat Press 38x38cm</h2>
<p> </p>
<p><strong>INDEX</strong></p>
<p>> <a href="#know-more1">Description</a></p>
<p>> <a href="#know-more2">Things to keep in mind</a></p>
<p>> <a href="#know-more3">What does this press include?</a></p>
<p>> <a href="#know-more4">Control buttons</a></p>
<p>> <a href="#know-more5">Default / customisable settings</a></p>
<p>> <a href="#know-more6">Technical details</a></p>
<p>> <a href="#know-more7">Dimensions</a></p>
<p> </p>
<p class="enlace"><a id="know-more1"></a> </p>
<p><strong>DESCRIPTION</strong></p>
<ul>
<li>Heat press suitable for any heat personalisation technique: <span class="azul-brildor-negrita">dye sublimation printing</span>, <span class="azul-brildor-negrita">transfer</span>, <span class="azul-brildor-negrita">vinyl</span>, <span class="azul-brildor-negrita">DTF</span> and more</li>
<li>Control panel with digital screen to set temperature and time</li>
<li>Automatic opening with timer and beeper sound</li>
<li>Automatic pressure adjustment</li>
<li>4 time and temperature presets</li>
<li>Saves up to 2 customised temperature and time settings</li>
<li>Double heating tube lower platen for more even heat transfers</li>
<li>Reaches maximum temperature in <span class="azul-negrita">6 minutes</span></li>
<li>Emergency stop. Press any button to restart and open the press</li>
<li>Features foam pad for even heat distribution. Secured to the lower platen by elastic bands to prevent it from moving. Can be easily removed</li>
<li>Auto shut-off after <span class="azul-negrita">10 minutes</span> of inactivity</li>
<li>Top heat plate with protective casing to prevent burns</li>
<li>CE certificate for European conformity</li>
<li><strong>Warranty:</strong> 3 years against manufacturing defects</li>
</ul>
<p> </p>
<p class="enlace"><a id="know-more2"></a> </p>
<p><strong>THINGS TO KEEP IN MIND</strong></p>
<ul>
<li>Although it is suitable for <span class="azul-brildor-negrita">DTF</span>, it is not suitable for <strong>film curing</strong>. This is because the pressure adjustment is done automatically, making it impossible to adjust the height</li>
</ul>
<p> </p>
<p class="enlace"><a id="know-more3"></a> </p>
<p><strong>WHAT DOES THIS PRESS INCLUDE?</strong></p>
<table>
<tbody>
<tr>
<td>1</td>
<td>Teflon sheet (<span class="azul-negrita">50.8 x 40.8 cm</span>)</td>
</tr>
<tr>
<td>1</td>
<td>User manual</td>
</tr>
</tbody>
</table>
<p> </p>
<p class="enlace"><a id="know-more4"></a> </p>
<p><strong>CONTROL PANEL</strong></p>
<ul>
<li><strong>Power button</strong>: ON/OFF</li>
<li><strong>Start button (R)</strong>: manual way to start pressing. It will turn green when the press reaches the preset pressing temperature. When pressed, the heat plate will lower and will start pressing. In case you need to open the press before the time is up, press this button</li>
<li><strong>Auto button (A)</strong>: automatic mode. When pressed, the heat plate will close automatically when the lower platen slides in, and the pressing will start</li>
<li><strong>Temperature button</strong>: temperature setting. Press and hold to change from <span class="azul-negrita">ºC</span> to <span class="azul-negrita">ºF</span> and vice versa</li>
<li><strong>Time button</strong>: time setting</li>
<li><strong>+ / - buttons</strong>: increase and decrease temperature and time</li>
<li><strong>Preset button (roulette)</strong>: includes 4 different preset time and temperature settings. Press to switch from one mode to another</li>
<li><strong>Custom button (wheel)</strong>: to save up to 2 custom time and temperature settings</li>
</ul>
<p> </p>
<p class="enlace"><a id="know-more5"></a> </p>
<p><strong>DEFAULT / CUSTOMISABLE SETTINGS<br></strong></p>
<p><strong>4 preset settings</strong></p>
<p>Press the preset button to choose between 4 preset temperature and time settings. Each time you press this button, a preset time and temperature will appear together with the number of the setting you are in (1, 2, 3 or 4):</p>
<table>
<tbody>
<tr>
<td style="text-align: center; vertical-align: middle;"><strong>Preset</strong></td>
<td style="text-align: center; vertical-align: middle;"><strong>Temperature<br>(ºC | ºF)<br></strong></td>
<td style="text-align: center; vertical-align: middle;"><strong>Time<br>(s)<br></strong></td>
</tr>
<tr>
<td style="text-align: center; vertical-align: middle;">1</td>
<td style="text-align: center; vertical-align: middle;"><span class="azul-negrita">150</span> | <span class="azul-negrita">300</span></td>
<td style="text-align: center; vertical-align: middle;"><span class="azul-negrita">15<br></span></td>
</tr>
<tr>
<td style="text-align: center; vertical-align: middle;">2</td>
<td style="text-align: center; vertical-align: middle;"><span class="azul-negrita">160</span> | <span class="azul-negrita">320</span></td>
<td style="text-align: center; vertical-align: middle;"><span class="azul-negrita">15</span></td>
</tr>
<tr>
<td style="text-align: center; vertical-align: middle;">3</td>
<td style="text-align: center; vertical-align: middle;"><span class="azul-negrita">165</span> | <span class="azul-negrita">330</span></td>
<td style="text-align: center; vertical-align: middle;"><span class="azul-negrita">20</span></td>
</tr>
<tr>
<td style="text-align: center; vertical-align: middle;">4</td>
<td style="text-align: center; vertical-align: middle;"><span class="azul-negrita">200</span> | <span class="azul-negrita">390<br></span></td>
<td style="text-align: center; vertical-align: middle;"><span class="azul-negrita">40</span></td>
</tr>
</tbody>
</table>
<p><strong>Personalised settings<br></strong></p>
<p>This press offers the possibility to preset 2 temperature and time settings.</p>
<ul>
<li>Press the Custom button to customise 1 time and temperature setting. It will be saved as A</li>
<li>To customise a second mode, press this button again. It will be saved as B</li>
<li>Press and hold this button for <span class="azul-negrita">2 seconds</span> to exit this mode, and the settings will be stored in the machine</li>
</ul>
<p> </p>
<p class="enlace"><a id="know-more6"></a> </p>
<p><strong>TECHNICAL DETAILS <br></strong></p>
<table>
<tbody>
<tr>
<td><strong>Press model</strong></td>
<td>LokLik Auto Heat Press</td>
</tr>
<tr>
<td><strong>Press type</strong></td>
<td>Automatic</td>
</tr>
<tr>
<td><strong>Lower platen type<br></strong></td>
<td>Slide-out</td>
</tr>
<tr>
<td><strong>Control panel</strong></td>
<td>Resin digital display</td>
</tr>
<tr>
<td><strong>Plates dimensions (cm) <br></strong></td>
<td><span class="azul-negrita">38 x 38</span></td>
</tr>
<tr>
<td><strong>Max. material thickness (cm|in)<br></strong></td>
<td><span class="azul-negrita">2.5</span> | <span class="azul-negrita">1"</span></td>
</tr>
<tr>
<td><strong>Pad thickness (cm)<br></strong></td>
<td><span class="azul-negrita">1 <br></span></td>
</tr>
<tr>
<td><strong>Maximum temperature (ºC | ºF)<br></strong></td>
<td><span class="azul-negrita">210</span> | <span class="azul-negrita">410 <br></span></td>
</tr>
<tr>
<td><strong>Timer (s)<br></strong></td>
<td><span class="azul-negrita">0-199<br></span></td>
</tr>
<tr>
<td><strong>Voltage (V)<br></strong></td>
<td><span class="azul-negrita">230<br></span></td>
</tr>
<tr>
<td><strong>Power (W)<br></strong></td>
<td><span class="azul-negrita">1500<br></span></td>
</tr>
</tbody>
</table>
<p> </p>
<p class="enlace"><a id="know-more7"></a> </p>
<p><strong>DIMENSIONS<br></strong></p>
<table>
<tbody>
<tr>
<td><strong>Clossed press (cm)<br></strong></td>
<td><span class="azul-negrita">41 x 29 x 53.5<br></span></td>
</tr>
<tr>
<td><strong>Open press with slide-out drawer (cm)<br></strong></td>
<td><span class="azul-negrita">41 x 29 x 91<br></span></td>
</tr>
<tr>
<td><strong>Pad (cm)<br></strong></td>
<td><span class="azul-negrita">38 x 38 x 1<br></span></td>
</tr>
<tr>
<td><strong>Cable length (cm)<br></strong></td>
<td><span class="azul-negrita">164<br></span></td>
</tr>
<tr>
<td><strong>Packaging (cm)<br></strong></td>
<td><span class="azul-negrita">58 x 34.5 x 46</span></td>
</tr>
<tr>
<td><strong>Net weight (kg)<br></strong></td>
<td><span class="azul-negrita">17.24</span></td>
</tr>
</tbody>
</table>https://www.brildor.com/media/catalog/product/p/l/plancha-automatica-htvfront-autopress-38x38cm_2.jpg14.95instock014.95000https://www.brildor.com/media/catalog/product/p/l/plancha-automatica-htvfront-autopress-38x38cm_2.jpg164912020122955/Heat Presses/Heat Presses/Heat Presses & Ovens/Automatic Heat Presses/Heat Presses/Heat Presses & Ovens/Black Friday2023-08-22T11:29:06+0000
