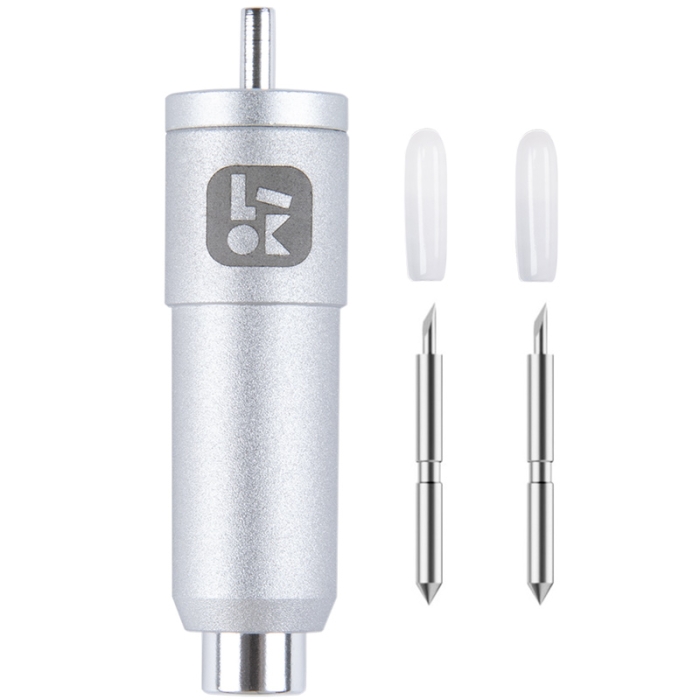

https://www.brildor.com/en/loklik-fine-point-blade-holder53963LokLik iCraft Fine Point Blades and Housing<p><a name="know-more"></a></p>
<h2>More information about the LokLik iCraft Fine Point Blades and Housing</h2>
<p> </p>
<p><strong>INDEX</strong></p>
<p>> <a href="#know-more1">Things to keep in mind</a></p>
<p>> <a href="#know-more2">How to change the blade?</a></p>
<p>> <a href="#know-more3">Cutting parameters</a></p>
<p> </p>
<p class="enlace"><a id="know-more1"></a> </p>
<p><strong>THINGS TO KEEP IN MIND</strong></p>
<ul>
<li>Blade holders and replacement blades, included with the vinyl cutter</li>
<li>Not compatible with the LokLik Crafter cutting plotter</li>
<li>Fine point blades use a different blade holder than deep point blades</li>
</ul>
<p> </p>
<p class="enlace"><a id="know-more2"></a> </p>
<p><strong>HOW TO CHANGE THE BLADE?</strong></p>
<ul>
<li>Turn off the vinyl cutter</li>
<li>Remove the old blade. Open the blade holder by unscrewing it and take out the blade</li>
<li>Insert the new blade with the sharp side facing down</li>
<li>Screw the blade holder to secure the new blade</li>
<li>Test the blade to ensure it is properly installed</li>
</ul>
<p> </p>
<p class="enlace"><a id="know-more3"></a> </p>
<p><strong>CUTTING PARAMETERS<span class="naranja-negrita">*</span></strong></p>
<p>Here are some of the materials that can be cut with the fine point blade:</p>
<table>
<tbody>
<tr>
<td><strong>Material</strong></td>
<td style="text-align: center;"><strong>Cutting Force<br>(min. - max.)</strong></td>
<td style="text-align: center;"><strong>No. of Passes</strong></td>
</tr>
<tr>
<td>Paper</td>
<td style="text-align: center;"><span class="azul-negrita">7.5 - 6.5</span></td>
<td style="text-align: center;">1</td>
</tr>
<tr>
<td>Vinyl</td>
<td style="text-align: center;"><span class="azul-negrita">8.6 - 5.9</span></td>
<td style="text-align: center;">1</td>
</tr>
<tr>
<td>Printable adhesive vinyl</td>
<td style="text-align: center;"><span class="azul-negrita">7.8 - 5.2</span></td>
<td style="text-align: center;">1</td>
</tr>
<tr>
<td>Sublimation paper</td>
<td style="text-align: center;"><span class="azul-negrita">9.5 -</span> <span class="azul-negrita">7.2</span></td>
<td style="text-align: center;">1 - 2</td>
</tr>
<tr>
<td>Cardstock</td>
<td style="text-align: center;"><span class="azul-negrita">9.8 - 6.5</span></td>
<td style="text-align: center;">1 - 3</td>
</tr>
<tr>
<td>Felt (<span class="azul-negrita">1 mm</span>)</td>
<td style="text-align: center;"><span class="azul-negrita">9 - 8</span></td>
<td style="text-align: center;">2</td>
</tr>
<tr>
<td>Faux leather (<span class="azul-negrita">0.4 - 1.2 mm</span>)</td>
<td style="text-align: center;"><span class="azul-negrita">9.2 - 7</span></td>
<td style="text-align: center;">2</td>
</tr>
</tbody>
</table>
<p><span style="font-size: 10pt;"><sup><span class="naranja-negrita">(*)</span></sup> Information provided by the manufacturer for <strong>guidance purposes</strong>. It is recommended to conduct preliminary tests</span></p>https://www.brildor.com/media/catalog/product/p/o/portacuchillas-cuchillas-punta-fina-loklik-icraft-d1.jpg16.45instock016.45000https://www.brildor.com/media/catalog/product/p/o/portacuchillas-cuchillas-punta-fina-loklik-icraft-d1.jpg52238522585383253932/Vinyl Cutters/Vinyl Cutters/LokLik/Vinyl Cutters/LokLik/Blades & Blade Holders2025-03-31T10:58:08+0000
How to cut with the Fine Point Blade
