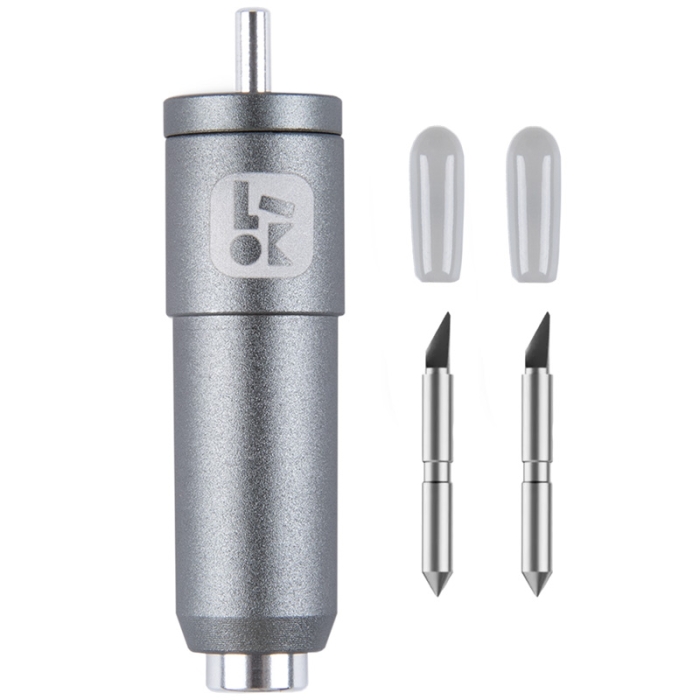

LokLik iCraft Deep-Point Blades and Housing

Blade holder with blades for the LokLik iCraft vinyl cutters.
Designed for cutting thick materials: faux leather, magnet, cardboard, foam...

Includes 2 deep cut blades (60º). Replacement blades can be purchased separately
Cutting depth: 2 mm

Availability:

Shown on each product

Blade holder + 2 blades 60º Ref: 055988 EAN: 6977144240514

Blade Holder with 60° Blades for Deep-Point LokLik iCraft

€16.45 VAT not included / Each Unit

Availability Immediate: 1 units

60° Blade - Pack 2 uds Ref: 055989 EAN: 6977144240521

60° Deep-Point Blade LokLik iCraft - Pack of 2 uds

€4.92 VAT not included / Each Unit

Availability Immediate: 16 units

View Price

VAT not included

Skip to the end of the images gallery

New

Skip to the beginning of the images gallery

More information about the LokLik iCraft Deep-Point Blades and Housing

INDEX

> Things to keep in mind

> How to change the blade?

> Cutting parameters

THINGS TO KEEP IN MIND

Not compatible with the LokLik Crafter cutting plotter
Deep cut blades use a different blade holder than fine point blades

HOW TO CHANGE THE BLADE?

Turn off the plotter
Remove the old blade. Open the blade holder by unscrewing it and remove the old blade
Insert the new blade with the sharp side down
Screw the blade holder to secure the new blade
Test the blade to ensure it is properly installed

CUTTING PARAMETERS*

These are some of the materials that can be cut with the deep cut blade:

Material	Thickness (mm)	Cutting Force (max. - min.)	No. of Passes
Faux Leather	1.5	6.5 - 5.5	2
PVC	0.25 - 0.5	7.5 - 6	2-4
EVA Foam	1 - 2	6.5 - 5.8	1
Magnetic Sheet	0.5 - 1	7.5 - 5.5	1 - 4
Shrink Plastic	0.15 - 0.3	7.1 - 6.1	2 - 3

^(*) Information provided by the manufacturer for guidance purposes. It is recommended to conduct preliminary tests

Additional Information

More Information
Ref.	953932
Brand	LokLik
