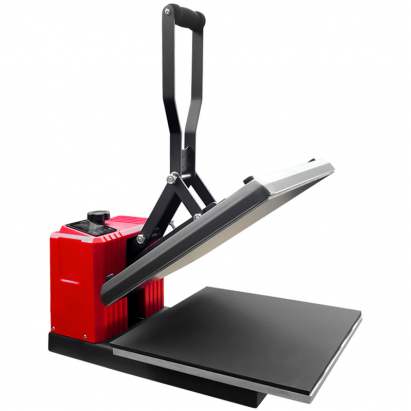

Manual Heat Presses Brildor XH-A2.1
Sandwich-type heat press machines for thermal transfers on textiles and flat rigid materials.
- Manual opening and closing
- Fixed base plate
- Base plate dimensions: 38 x 38 cm (Ref. 036182) or 40 x 50 cm (Ref. 036183)
More information
More information about the Manual Heat Presses Brildor XH-A2.1
INDEX
> Description
> Technical data
> Dimensions
DESCRIPTION
- Control panel with digital display to program time and temperature
- Lever with ergonomic handle for manual opening and closing
- Base plate with silicone pad for even distribution of pressure and temperature
- Pressure adjustment via a wheel
- Rohs and CE certification: comply with EU quality and safety standards
TECHNICAL DATA
Reference
|
036182 |
036183 |
Press model |
Brildor XH-A2.1 |
Brildor XH-A2.1 |
Type of press |
Manual/Sandwich |
Manual/Sandwich |
Type of base plate
|
Fixed |
Fixed |
Base plate dimensions (width x depth)(cm)
|
38 x 38 |
40 x 50
|
Maximum thickness to press (cm)
|
0.8 |
0.8
|
Opening angle (º)
|
30-45 |
30-45 |
Voltage (V/Hz)
|
220 / 50 |
220 / 50
|
Power (W)
|
1500 |
2000
|
Timer (s)
|
0-999 |
0-999
|
Temperature range (ºC)
|
0-250 |
0-250 |
Temperature accuracy (%)
|
±5 |
±5 |
DIMENSIONS
Reference
|
036182 |
036183 |
Packing (cm)
|
72 x 47 x 45 |
74 x 56 x 50
|
Weight (Kg)
|
28 |
32
|
More Information
Ref. |
924068 |
Brand |
Brildor |
Print area (cm) |
38 x 38, 40 x 50 |
Power (W) |
1500 / 2000 |
Pressure regulation |
Manual |
Opening |
Manual |
Closing |
Manual |
