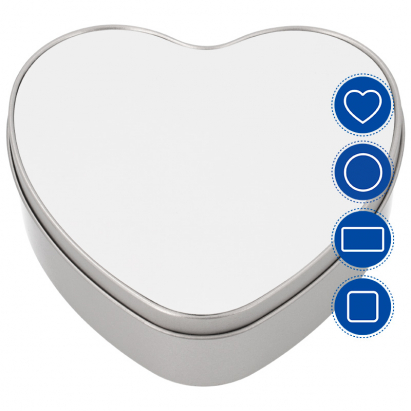

Metal Boxes with their Sublimable Sheets
Metal boxes to which a printable aluminium sheet can be attached to the lid using dye sublimation printing .
Each box already includes its aluminium plate and the adhesive to fix it, but additional sheets can be purchased.
More information
Our availability is not enough?
Let us know how much you need
I WANT MORE
More information about the Metal Boxes with their Sublimable Sheets
INDEX
> Description
> Things to keep in mind
> Box dimensions
> Additional sheet dimensions
> Recommended instructions and parameters for sublimation printing
DESCRIPTION
Multi-purpose: storage, gift box, jewellery box, tin for biscuits or chocolates...
The metal box is silver in colour
Printable aluminium sheet with a white side suitable for sublimation. The reverse side is silver
Lid with adhesive to affix the personalised sheet
Includes individual cardboard box
THINGS TO KEEP IN MIND
The sheet has a protective film on the printable side that must be removed before sublimation
BOX DIMENSIONS
Reference 033054 031025 031026 049888 032748
Shape Heart
Round
Rectangular
Square
Rectangular
Outer dimensions (mm) 150 x 145 x 48 Ø152 x 50 198 x 129 x 52 204 x 204 x 100 189 x 82 x 24
Inner dimensions (mm) 143 x 135 x 40 Ø146 x 42 19 x 12 x 42 197 x 197 x 92 182 x 72 x 20
Printable sheet dimensions (mm) 144 x 140 Ø147 193 x 125 196 x 196 180 x 70
Additional sheet reference 033055
031028
031027
049889
032749
Box weight (g) 166 214 214 428 111
ADDITIONAL SHEET DIMENSIONS
Reference 033055 031028 031027 049889 032749
Shape Heart
Round
Rectangular
Square
Rectangular
Dimensions (mm) 144 x 140 Ø147 193 x 125 196 x 196 180 x 70
Weight (g) 16 22 30 44 34
RECOMMENDED INSTRUCTIONS AND PARAMETERS FOR SUBLIMATION PRINTING
Parameters provided as a guideline . It is recommended to carry out preliminary tests in order to make the necessary adjustments before starting production.
Print the design in mirror image
Preheat the press to 200 ºC
Remove the protective plastic from the printable side of the sheet or plate
Place the sheet on the lower platen of the press and the printed side of the paper on the sheet. Fix it with heat-resistant tape
Close the press with medium pressure for 40 seconds
Remove the newly printed sheet using a protective glove
Peel off the paper carefully
Peel off the protective paper covering the adhesive on the lid and affix the personalised sheet
More Information
Ref.
948949
Colour
Gloss Silver
Surface material
Aluminium
Items
Metallic boxes
Marking techniques
Dye sublimation
