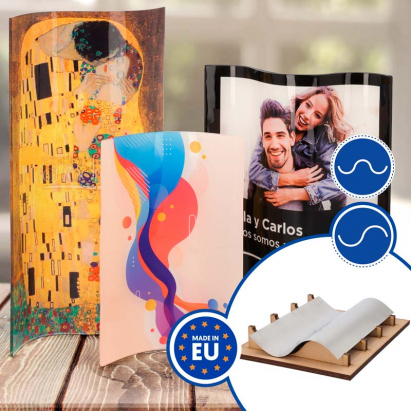

Moulds for Acrylic Sheets

Designed to give a curved shape to acrylic sheets.

Metal mould on a wooden base
Available in different sizes and shapes: arch, wave and double wave
Heat the acrylic sheet first and place it on the mould to give it shape

More information

Availability:

Shown on each product

Arch - 15x20cm Ref: 049685

Mould for Acrylic Sheets - Arch Shape - 15 x 20 cm

€4.95 VAT not included / Each Unit

Availability No scheduled date

Arch - 33x33cm Ref: 049695

Mould for Acrylic Sheets - Arch Shape - 33 x 33 cm

€9.90 VAT not included / Each Unit

Availability No scheduled date

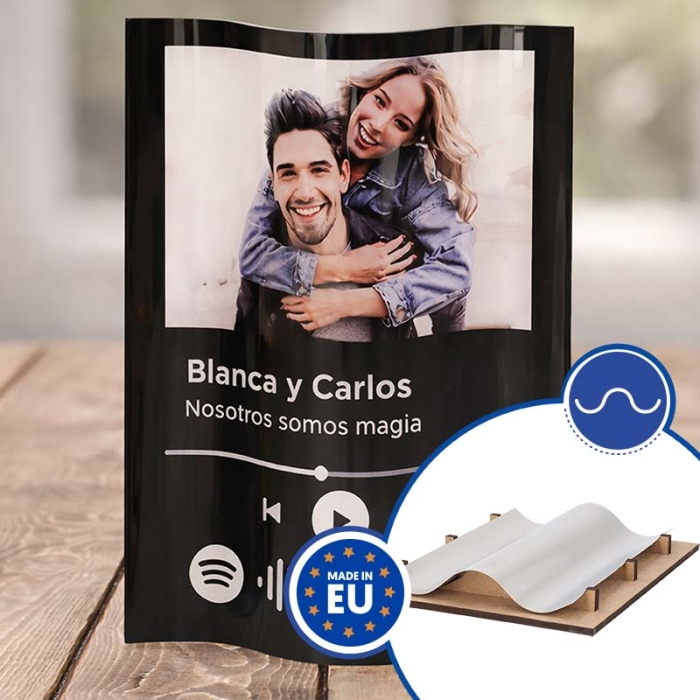

Wave - 21x31cm Ref: 049698

Mould for Acrylic Sheets - Wave Shape - 21 x 31cm

€6.50 VAT not included / Each Unit

Availability Immediate: 1 units

Wave - 40x50cm Ref: 049696

Mould for Acrylic Sheets - Wave Shape - 50 x 40 cm

€10.49 VAT not included / Each Unit

Availability Immediate: 10 units

Double Wave - 20,7x26,2cm Ref: 049697

Mould for Acrylic Sheets - Double Wave Shape - 20,7 x 26,2 cm

€5.95 VAT not included / Each Unit

Availability Immediate: 8 units

Double Wave - 30x39cm Ref: 049706

Mould for Acrylic Sheets - Double Wave Shape - 39 x 30 cm

€9.90 VAT not included / Each Unit

Availability Immediate: 2 units

View Price

VAT not included

Skip to the end of the images gallery

Skip to the beginning of the images gallery

More information about the moulds for acrylic sheets

INDEX

> Maximum mouldable area

> Things to keep in mind

> Data sheet

> Instructions for use

MAXIMUM MOULDABLE AREA

The rectangle in the attached image represents the maximum usable area of each mould
Measure the mould and make sure it is smaller or the same size as the maximum mouldable area of your sheet
Benefit from the versatility of the wave and double wave moulds. They can be used to mould not only sheets with the same size of the mouldable area but also smaller sheets by placing them on one of the mould curvatures
Some usage examples:
- You can use the entire surface of the Ref. 049698 mould to shape a 31 x 21 cm sheet or use it with a 19.5 x 21 cm sheet by using one of the curvatures of the mould
- The Ref. 049706 mould can be used with a 13 x 30 cm sheet and give it a concave or convex shape, depending on the wave in which you place it

Moulds for Acrylic Sheets

THINGS TO KEEP IN MIND

If you customise the sheet, first sublimate it and then mould it
Excess heat could deform the sheet
Ref. 049697 comes with a darker coloured wooden base

DATA SHEET

Reference no	Shape	Maximum mouldable area (cm)	Wooden base (cm)	Metal piece (cm)	Weight (g)
049685	Arch	15 x 20	23 x 18 x 5.4	13 x 20 x 3	458
049695	Arch	33 x 33	34.5 x 34.5 x 9	29 x 33 x 7	882
049698	Wave	21 x 31	34.5 x 24.5 x 5	18.5 x 31 x 5	876
049696	Wave	50 x 41	52.5 x 41 x 8	50 x 36.5 x 6	3000
049697	Double wave	20.7 x 26.2	28.8 x 23.5 x 4	18.5 x 26.2 x 3.5	601
049706	Double wave	39 x 30	35 x 41.5 x 4.5	35.3 x 30 x 5	1278

INSTRUCTIONS FOR USE

Heat the acrylic sheet. In case of sublimation, place it immediately on the mould after printing it
Protect the acrylic sheet with silicone paper
With the help of a protective glove, manually adapt the panel to the mould
Remove the sheet and let it cool

Due to the different types of acrylic materials available on the market, we cannot provide heat temperatures. We recommend testing beforehand.

Additional Information

More Information
Ref.	949552
Thickness (mm)	3
Colour	Transparent
Surface material	Acrylic
Marking techniques	Dye sublimation
