Moulds with Badges - Special Shapes
Moulds with special shapes for customising badges with our machines.
Includes badge supply in the same shape and in various models, to start working.
Made of high-quality chrome steel
Easy and quick installation
More information
Our availability is not enough?
Let us know how much you need
I WANT MORE
More information about the Moulds with Badges - Special Shapes
INDEX
> Description
> Things to keep in mind
> Template for customising badges
> Badge supplies
> Compatibility with our badge machines
> Weights and measurements
DESCRIPTION

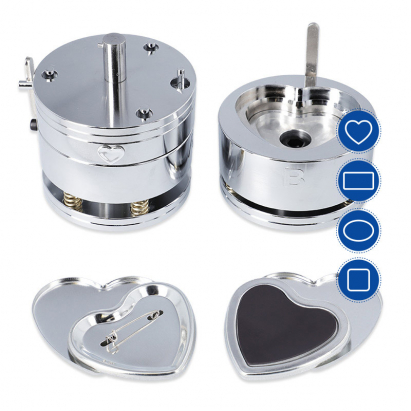

Each mould consists of 3 pieces that are manually installed in the machine. No tools are required
Part A : used to customise the front plate of the badge
Part B : presses the back plate of the badge onto its previously customised front plate
Top part : applies pressure on Parts A and B to ensure each achieves its purpose
The moulds are delivered packed in a cardboard box that includes protective material along with its supplies
THINGS TO KEEP IN MIND
In Related Products you will find more information about the badges
It is advisable to periodically tighten the screws of the moulds using an Allen key. They may loosen due to the pressure exerted on them when the production level is high
TEMPLATE FOR CUSTOMISING BADGES
To view the layers of the template, open the PDF file using Photoshop. Remember to activate them:
Special shape badge templates (.pdf - 2 MB)
BADGE SUPPLIES
Reference
Shape
Badge (mm)
Pin (pcs)
Magnet (pcs)
Mirror (pcs)
Bottle Opener Magnet (pcs)
039204
Heart
57 x 52
20
20
-
-
039536
Rectangular
50 x 90
100
20
20
20
039537
Oval
65 x 45
100
20
20
20
039538
Square
37 x 37
100
20
-
-
037599
Triangle
40 x 40 x 40
100
-
-
-
037598
Shield
50 x 70
100
-
-
-
054884
T-shirt
60 x 64
20
-
-
-
COMPATIBILITY WITH OUR BADGE MACHINES
Note : in previous versions of our badge machines, only the square shape mould can be used.
WEIGHTS AND MEASUREMENTS
Reference
Shape
Net Weight (kg)
Packaging (cm)
039204
Heart
3.996
30.4 x 17.3 x 22.9
039536
Rectangular
7.600
32.5 x 22.4 x 22.8
039537
Oval
4.034
30.4 x 17.3 x 22.9
039538
Square
2.094
31 x 17.7 x 22.4
037599
Triangle
2.196
33 x 15.5 x 22.5
037598
Shield
4.930
23.5 x 14.5 x 13.5
054884
T-shirt
5.464
44.5 x 24.5 x 17
