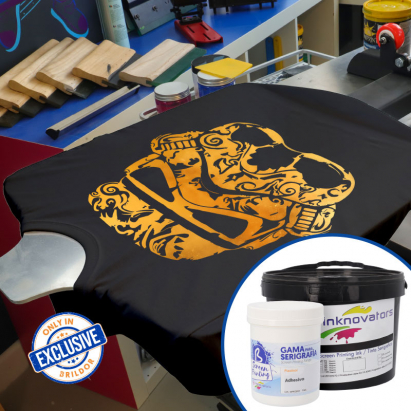

Ready-to-use adhesive paste, screen-printed on textile fabrics of all kinds, followed by foil application.
It has excellent adhesive power, which allows easy foil removal. The prints have a soft final touch and great definition, as well as good resistance to domestic washing.
https://www.brildor.com/en/plastisol-foil-adhesive44648Plastisol Foil Adhesive<p><a name="know-more"></a></p>
<p><strong>Index</strong></p>
<p><a href="#know-more1">Description</a></p>
<p><a href="#know-more2">Application </a><a href="#know-more3">parameters</a></p>
<p><a href="#know-more3">Instructions for use</a></p>
<p><a href="#know-more5">Data sheet</a></p>
<p><a href="#know-more6">Safety data sheet</a></p>
<p> </p>
<p><a name="know-more1"></a></p>
<p><strong>DESCRIPTION</strong></p>
<ul>
<li>Suitable for any fabric composition</li>
<li>Pre-drying can be carried out with a flash cure unit or heat gun</li>
<li>If you do not have an oven, you can cure the base using a heat press</li>
<li>Phthalate-free, but does not reach the maximum ecological grade as it contains PVC</li>
<li>Stir well before use</li>
<li>Do not thin with water</li>
<li style="font-weight: 400;" aria-level="1"><span style="font-weight: 400;">Can be mixed with white base or plastisol pigments at any ratio</span></li>
<li>Storage temperature: <span class="azul-negrita">5-30ºC</span></li>
<li>Used screens can be cleaned with water</li>
<li>Made in Turkey for Brildor</li>
</ul>
<p> </p>
<p><a name="know-more2"></a></p>
<p><strong>APPLICATION PARAMETERS</strong></p>
<p>Running tests is recommended to ensure the desired result.</p>
<table>
<tbody>
<tr>
<td><strong>Colour</strong></td>
<td style="text-align: center;"><strong>Mesh<br>(T)</strong></td>
<td style="text-align: center;"><strong>Squeegee<br>(Shores)</strong></td>
<td style="text-align: center;"><strong>Curing<br>(ºC-s)</strong></td>
<td style="text-align: center;"><strong>Pressing<br>(ºC)<br>(bar)<br>(s)</strong></td>
<td style="text-align: center;"><strong>Containers<br>(kg-cm)</strong></td>
</tr>
<tr>
<td>Clear</td>
<td style="text-align: center;"><span class="azul-negrita">34</span>-<span class="azul-negrita">55</span></td>
<td style="text-align: center;">V - <span class="azul-negrita">50-60</span></td>
<td style="text-align: center;"><span class="azul-negrita">160</span> - <span class="azul-negrita">90</span></td>
<td style="text-align: center;"><span class="azul-negrita">160</span> - <span class="azul-negrita">175</span><br><span class="azul-negrita">4 </span>- <span class="azul-negrita">6</span><br><span class="azul-negrita">7 </span>- <span class="azul-negrita">10</span></td>
<td style="text-align: center;">
<p><span class="azul-negrita">1</span> - <span class="azul-negrita">Ø11.2 x 14.5</span><br><span class="azul-negrita">5</span> - <span class="azul-negrita">Ø25 x 15<br></span></p>
</td>
</tr>
</tbody>
</table>
<p> </p>
<p><a name="know-more3"></a></p>
<p><strong>INSTRUCTIONS FOR USE</strong></p>
<p> </p>
<p><img src="{{media url="wysiwyg/serigrafia/plastisol-adhesivo-foil-brildor-d6.jpg"}}"></p>
<p>Coat the mesh with enough adhesive <br>and run the squeegee over the mesh twice </p>
<p><img src="{{media url="wysiwyg/serigrafia/plastisol-adhesivo-foil-brildor-d7.jpg"}}"></p>
<p>Pre-dry at <span class="azul-negrita">160 ºC</span> for <span class="azul-negrita">3-5 seconds</span> <br>with a flash cure unit or a heat gun</p>
<p><img src="{{media url="wysiwyg/serigrafia/plastisol-adhesivo-foil-brildor-d8.jpg"}}"></p>
<p>Apply another layer of adhesive to the mesh. <br>The thicker the layer, the better the foil will adhere <br>to the fabric</p>
<p><img src="{{media url="wysiwyg/serigrafia/plastisol-adhesivo-foil-brildor-d9.jpg"}}"></p>
<p>Dry again at <span class="azul-negrita">160 ºC</span> <br>for <span class="azul-negrita">3-5 seconds</span> with a flash cure unit or a heat gun.</p>
<p><img src="{{media url="wysiwyg/serigrafia/plastisol-adhesivo-foil-brildor-d10.jpg"}}"></p>
<p>Lay the foil over the adhesive</p>
<p><img src="{{media url="wysiwyg/serigrafia/plastisol-adhesivo-foil-brildor-d11.jpg"}}"></p>
<p>Use an unexposed frame and a squeegee for <br>2 more strokes</p>
<p><img src="{{media url="wysiwyg/serigrafia/plastisol-adhesivo-foil-brildor-d12.jpg"}}"></p>
<p>Cure with a heat press (<span class="azul-negrita">160-175ºC</span> for <span class="azul-negrita">7-10 s</span>) or with an oven <br>(<span class="azul-negrita">160ºC</span> for <span class="azul-negrita">90 s</span>)</p>
<p><img src="{{media url="wysiwyg/serigrafia/plastisol-adhesivo-foil-brildor-d13.jpg"}}"></p>
<p>Peel off the excess foil when it has cooled down</p>
<p> </p>
<p><a name="know-more5"></a></p>
<p><strong>DATA SHEET</strong></p>
<ul>
<li><a title="Data sheet plastisol adhesive for Brildor foil (.pdf- 0.18 MB)" href="https://www.brildor.com/media/upload/descargas/Plastisol_Adhesivo_Foil_Brildor_Ref_040431_Ref_040252.pdf" target="_blank" rel="nofollow noopener">Data sheet plastisol adhesive for Brildor foil (.pdf- 0.18 MB)</a></li>
</ul>
<p><a name="know-more6"></a></p>
<p><strong>SAFETY DATA SHEET</strong></p>
<ul>
<li><a title="Safety data sheet plastisol adhesive for Brildor foil (.pdf- 0.22 MB)" href="https://www.brildor.com/media/upload/descargas/Ficha_Seguridad_Plastisol_Adhesivo_Foil_Brildor_Ref_040431_040252.pdf" target="_blank" rel="nofollow noopener">Safety data sheet plastisol adhesive for Brildor foil (.pdf- 0.22 MB)</a></li>
</ul>https://www.brildor.com/media/catalog/product/p/l/plastisol-adhesivo-foil-brildor-d5.jpg12.5instock012.5000https://www.brildor.com/media/catalog/product/p/l/plastisol-adhesivo-foil-brildor-d5.jpg260284464344650/Screen Printing/Screen Printing/Adhesives2022-05-24T08:02:12+0000
