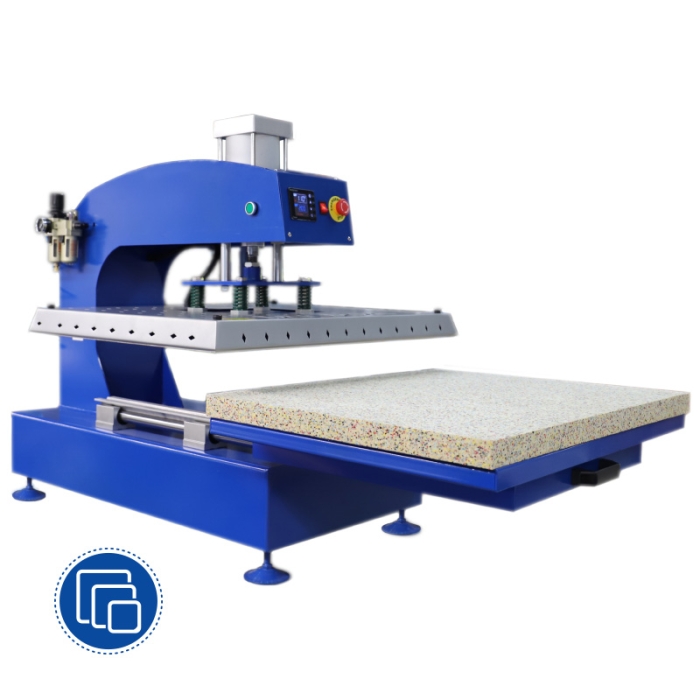

Pneumatic Heat Press - Brildor XH-B5

Automatic heat press for printing medium and large format hard and textile surfaces.

Automatic closing and opening by pneumatic action
Slide-out drawer
Lower platen dimensions: 80 x 60 cm (Ref. 038637) and 100 x 80 cm (Ref. 041295)

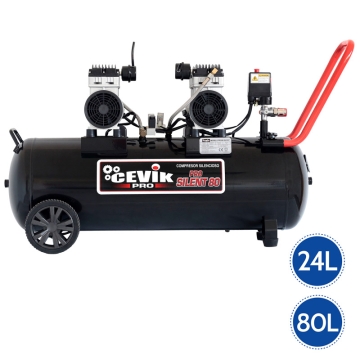

Compressor required (not included).

More information

+INFO +34 607 161 013 / customersupport@brildor.com

Availability:

Shown on each product

80 x 60 cm Ref: 038637

Pneumatic Heat Press Brildor XH-B5 80x60cm

€2,395.00 VAT not included / Each Unit

Availability Immediate: 2 units

100 x 80 cm Ref: 041295

Pneumatic Heat Press Brildor XH-B5 100x80cm - Red

€2,495.00 VAT not included / Each Unit

Availability Immediate: 0 units

View Price

VAT not included

Skip to the end of the images gallery

Skip to the beginning of the images gallery

More information about the Brildor XH-B5 pneumatic heat press

INDEX

> Description

> Things to keep in mind

> Controller

> Technical details

> Dimensions (approx.)

DESCRIPTION

Auto-off feature by pressing the 2 buttons on the side
Control panel to set temperature and time
Lower platen with silicone pad for even pressure and temperature distribution
Adjustable pressure by pressure gauge
Emergency stop button on the front
Certifications: EMC, MD, Rohs CE marking

THINGS TO KEEP IN MIND

The colour varies according to the size of the press: blue for 80 x 60 cm (Ref. 038637) and red for 100 x 80 cm (Ref. 041295)
Plug not included. If you have a three-phase installation we recommend a 5-pin male plug, or "Mennekes", assuming that your installation has the corresponding female socket
If you want to adapt the three-phase machine to a single-phase installation you will need additional components to make the connection. You could use a frequency converter. Brildor recommends a professional electrician to carry out any adaptation of this type

CONTROLLER

Instructions of use IT940N control panel(.pdf - 0.41 MB)

TECHNICAL DETAILS

Reference no	038637	041295
Press model	Brildor XH-B5	Brildor XH-B5
Press type	Pneumatic	Pneumatic
Lower platen type	Slide-out	Slide-out
Connection	Two-phase	Three-phase
Mechanism	Air operated	Air operated
Controller	LCD digital display IT940N	LCD digital display IT940N
Lower platen dimensions	80 x 60 cm	100 x 80 cm
No. of handles lower platen	1	2
Max. material thickness	6 cm	6 cm

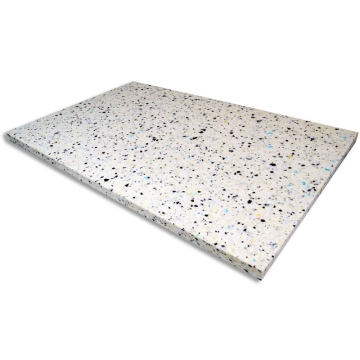

Mat thickness	4 cm	4 cm
Max. pressure	1 Tn	1 Tn
Voltage	220 V/240 V	380 V
Power	3500 W	8000 W
Timer	0 - 120 min	0 - 120 min
Temperature range	0-232ºC	0-250ºC
Temperature accuracy	± 5ºC	± 1ºC

DIMENSIONS (APPROX.)

Reference no.	038637	041295
Press with slide-out drawer	80 x 90 x 118 cm	105 x 100 x 136 cm
Packaging	108 x 113 x 135 cm	117 x 115 x 108 cm
Net weight	300 kg	320 kg
Gross weight	320 kg	360 kg

Additional Information

More Information
Ref.	943414
Brand	Brildor
Pressure regulation	Gauge
Opening	Pneumatic
Closing	Pneumatic
