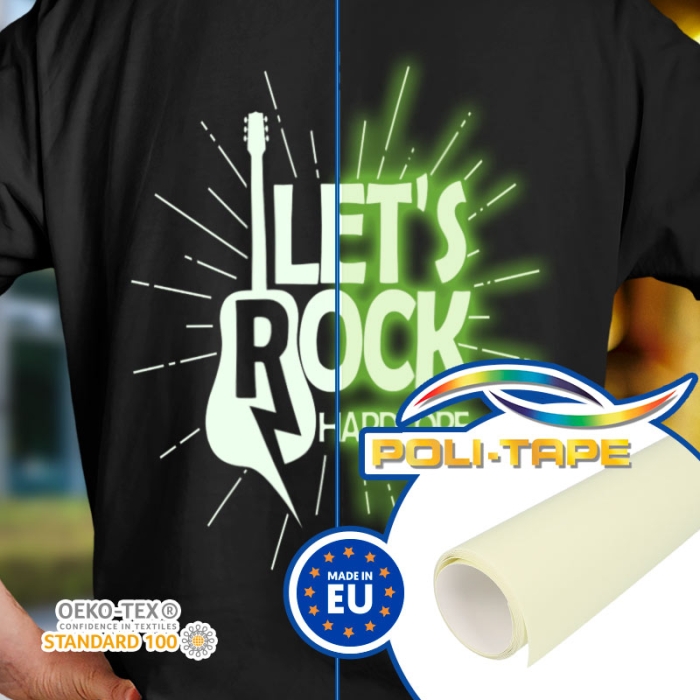

POLI-FLEX IMAGE 4790 LUMINOUS is a luminescent effect film for textile transfer.
Formed by particles that absorb light energy which is then released slowly and continuously, emitting light in dark spaces
The liner is a non-adhesivePET (polyester) film that acts as a carrier sheet
The 10-metre rolls have a Ø7.5 cm cardboard core
The raw materials are ecologically inert, do not contain PVC, plasticizers or heavy metals and are certified in accordance with Oeko-Tex Standard 100 Class I
Made in Germany by Poli-Tape
TECHNICAL CHARACTERISTICS
Vinyl
Luminescent film
Thickness (µ)
310
Support or liner
PET film (non-adhesive)
Includes transporter
Yes
Fabrics
Cotton, cotton-polyester and polyester-acrylic blends
Cutting blade for vinyl cutter
45º
Laser cutting
Yes
Discard
Hot/Tibium
TRANSFER PARAMETERS
Knife blade: 45º
Temperature: 150-160ºC
Time: 15-18 seconds
Pressure: 3.5 bar [medium pressure]
APPLICATION INSTRUCTIONS
Cut your design in mirror image with a cutter plotter
Weed out your vinyl excess
Preheat the press to 150-160ºC
Place the garment on the press and pre-press for 4-5 seconds to remove wrinkles and moisture from the fabric
Position the vinyl over the garment and cover with protective paper
Press for 15-18 seconds, medium pressure
Warm peel the liner
Press again for 2 seconds with the same parameters
When used under normal conditions, this product does not generate or release any dangerous substances or hazardous chemicals. This is a non-hazardous product in accordance with the current GefStoffV and EU criteria. Therefore it is not necessary to prepare a Material Safety Data Sheet for this product. The Safety Data Sheet serves only to comply with the regulation to supply information in accordance with REACH Regulation (EC) No. 1907/2006 and is available on request. This is not a hazardous product with regards to transportation legislation; neither does it contain substances that are hazardous to water within the meaning of the federal water act. After use, dispose of the waste product in accordance with the local / national authorities.
https://www.brildor.com/en/poli-flex-image-luminous-heat-transfer-vinyl-poli-tape15763Luminiscent HTV - Poli-Flex Image 4790 Luminous from Poli-Tape<p><a name="know-more"></a></p>
<h2>More information about the Luminiscent HTV - Poli-Flex Image 4790 Luminous from Poli-Tape</h2>
<p> </p>
<p><strong>INDEX</strong></p>
<p>> <a href="#know-more1">Description</a></p>
<p>> <a href="#know-more0">Technical characteristics</a></p>
<p>> <a href="#know-more2">Transfer parameters</a></p>
<p>> <a href="#know-more3">Application instructions</a></p>
<p>> <a href="#know-more4">Wash resistance</a></p>
<p>> <a href="#know-more6">Weights</a></p>
<p>> <a href="#know-more8">Colour card</a></p>
<p>> <a href="#know-more9">Data sheet</a></p>
<p>> <a href="#know-more10">Safety data sheet</a></p>
<p> </p>
<p><a name="know-more1"></a></p>
<p><strong>DESCRIPTION</strong></p>
<p>POLI-FLEX IMAGE 4790 LUMINOUS is a <strong>luminescent effect film</strong> for textile transfer.</p>
<ul>
<li>Formed by particles that absorb light energy which is then released slowly and continuously, emitting light in dark spaces</li>
<li>The <strong>liner</strong> is a <strong>non-adhesive</strong> <strong>PET (polyester) film</strong> that acts as a carrier sheet</li>
<li>The <strong>10-metre rolls</strong> have a <span class="azul-negrita">Ø7.5 cm</span> cardboard core</li>
<li>The raw materials are ecologically inert, do not contain PVC, plasticizers or heavy metals and are certified in accordance with <strong>Oeko-Tex Standard 100 Class I</strong></li>
<li>Made in Germany by Poli-Tape</li>
</ul>
<p> </p>
<p><a name="know-more0"></a></p>
<p><strong>TECHNICAL CHARACTERISTICS</strong></p>
<table >
<tbody>
<tr >
<td ><strong>Vinyl</strong></td>
<td >Luminescent film</td>
</tr>
<tr >
<td ><strong>Thickness (µ)</strong></td>
<td >310</td>
</tr>
<tr >
<td ><strong>Support or liner</strong></td>
<td >PET film (non-adhesive)</td>
</tr>
<tr >
<td ><strong>Includes transporter</strong></td>
<td >Yes</td>
</tr>
<tr >
<td ><strong>Fabrics</strong></td>
<td >Cotton, cotton-polyester and polyester-acrylic blends</td>
</tr>
<tr >
<td ><strong>Cutting blade for vinyl cutter</strong></td>
<td >45º</td>
</tr>
<tr >
<td ><strong>Laser cutting</strong></td>
<td >Yes</td>
</tr>
<tr >
<td ><strong>Discard</strong></td>
<td >Hot/Tibium</td>
</tr>
</tbody>
</table>
<p> </p>
<p><a name="know-more2"></a></p>
<p><strong>TRANSFER PARAMETERS<br></strong></p>
<ul>
<li>Knife blade: <span class="azul-negrita">45º</span></li>
<li>Temperature: <span class="azul-negrita">150-160ºC</span></li>
<li>Time: <span class="azul-negrita">15-18 seconds</span></li>
<li>Pressure: <span class="azul-negrita">3.5 bar</span> [medium pressure]</li>
</ul>
<p> </p>
<p><a name="know-more3"></a></p>
<p><strong>APPLICATION INSTRUCTIONS<br></strong></p>
<ul>
<li>Cut your design in <strong>mirror image</strong> with a cutter plotter</li>
<li>Weed out your vinyl excess</li>
<li>Preheat the press to <span class="azul-negrita">150-160ºC</span></li>
<li>Place the garment on the press and pre-press for <span class="azul-negrita">4-5 seconds</span> to remove wrinkles and moisture from the fabric</li>
<li>Position the vinyl over the garment and cover with protective paper</li>
<li>Press for <span class="azul-negrita">15-18 seconds</span>, medium pressure</li>
<li><strong>Warm peel</strong> the liner</li>
<li>Press again for <span class="azul-negrita">2 seconds</span> with the same parameters</li>
</ul>
<p> </p>
<p><a name="know-more4"></a></p>
<p><strong>WASH RESISTANCE</strong></p>
<ul>
<li>Washing resistance: <span class="azul-negrita">60ºC</span> max</li>
<li>Wash inside out</li>
<li>Suitable for tumble dryer</li>
</ul>
<p> </p>
<p><a name="know-more6"></a></p>
<p><strong>WEIGHTS</strong></p>
<table>
<tbody>
<tr>
<td>Roll</td>
<td><span class="azul-negrita">1</span></td>
<td><span class="azul-negrita">10</span></td>
</tr>
<tr>
<td>Weight (kg)</td>
<td><span class="azul-negrita">0.265</span></td>
<td><span class="azul-negrita">3.325</span></td>
</tr>
</tbody>
</table>
<p> </p>
<p><a name="know-more8"></a></p>
<p><strong>COLOUR CARD<br></strong></p>
<p><a title="Colour card for Poli-Flex Image" href="https://www.brildor.com/media/upload/downloads/Poli_Flex_Image_Poli_Tape_Colour_Card_EN.pdf" target="_blank" rel="nofollow noopener">Colour card for Poli-Flex Image (.pdf - 2.93 MB)</a></p>
<p> </p>
<p><a name="know-more9"></a></p>
<p><strong>DATA SHEET</strong></p>
<p><a title="Data sheet for Poli-Flex Image 4790 Luminous" href="https://www.brildor.com/media/upload/downloads/Poli_Flex_4790_Luminous_HTV_Poli_Tape_Datasheet_EN.pdf" target="_blank" rel="nofollow noopener">Data sheet for Poli-Flex Image 4790 Luminous (pdf - 35 kb)</a></p>
<p> </p>
<p><a name="know-more10"></a></p>
<p><strong>SAFETY DATA SHEET<br></strong></p>
<p>When used under normal conditions, this product does not generate or release any dangerous substances or hazardous chemicals. This is a non-hazardous product in accordance with the current GefStoffV and EU criteria. Therefore it is not necessary to prepare a Material Safety Data Sheet for this product. The Safety Data Sheet serves only to comply with the regulation to supply information in accordance with REACH Regulation (EC) No. 1907/2006 and is available on request. This is not a hazardous product with regards to transportation legislation; neither does it contain substances that are hazardous to water within the meaning of the federal water act. After use, dispose of the waste product in accordance with the local / national authorities.</p>https://www.brildor.com/media/catalog/product/v/i/vinilo-textil-poli-flex-mage-luminous-poli-tape-d9_1.jpg19.95instock019.95000https://www.brildor.com/media/catalog/product/v/i/vinilo-textil-poli-flex-mage-luminous-poli-tape-d9_1.jpg181552224449464/Vinyl/Vinyl/Cutting Heat Transfer Vinyl/Blanks/Blanks/Materials for Laser/Blanks/Materials for Laser/Vinyl2021-07-24T06:11:53+0000
