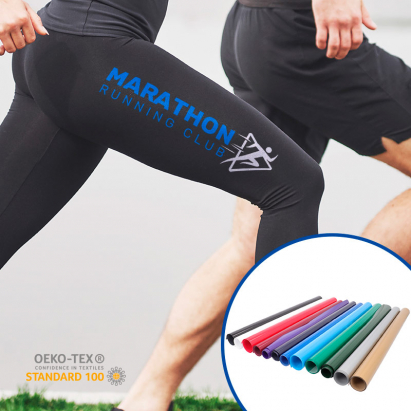

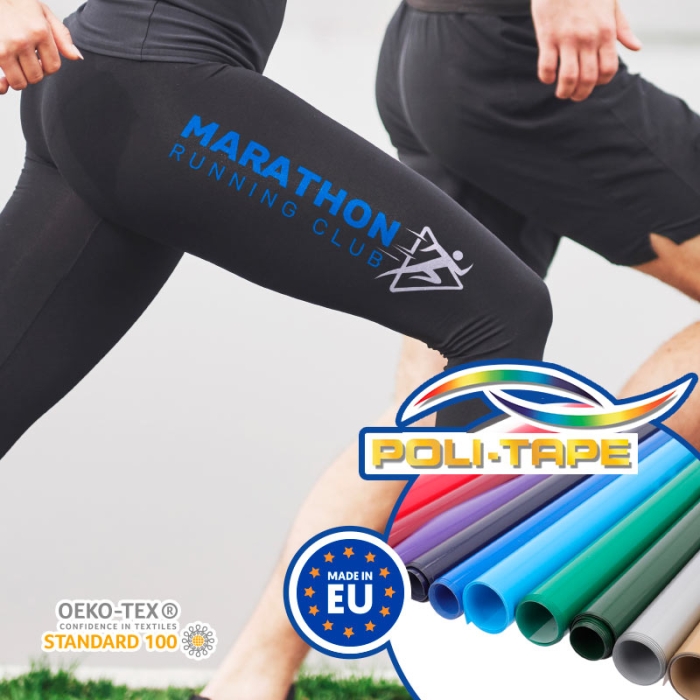

POLI-FLEX NYLON is an eco-friendly PU (polyurethane) film for heat transfer on elastic and/or water-repellent fabrics, i.e., highly water-resistant.
Multi-layered with a special Hot Melt coating that melts and bonds to the fabric when heated. Once cooled, the vinyl regains its rigidity and adheres to the fabric
Does not crack when stretched
The carrier or liner is a self-adhesive PET (polyester) film that acts as a transport tape
25-metre rolls have a cardboard core of Ø7.5 cm
The raw materials used are eco-friendly, PVC-free, free of plasticisers and heavy metals, and certified according to the ecological standard Oeko-Tex Standard 100 Category I
Manufactured in Germany by Poli-Tape
TECHNICAL CHARACTERISTICS
Vinyl
Eco-friendly polyurethane
Thickness (µ)
100
Carrier or liner
PET film
Includes transport tape
Yes
Fabrics
Nylon, lycra, and water-repellent fabrics
Blade for cutting machine
45º
Laser cutting
Yes
Layerable(*)
Yes
Weeding
Warm
(*) Can be layered with another vinyl to create multi-colour designs
TRANSFER PARAMETERS
Cutting blade: 45º
Temperature: 150 ºC
Time:
4 seconds (transfer)
10 seconds (fixing)
Pressure: 2.0 bar [medium pressure]
APPLICATION INSTRUCTIONS
Cut the design in mirror image using a cutting machine
Remove the excess vinyl (weeding)
Preheat the press to 150 ºC
Place the garment on the press and pre-press for 4-5 seconds to remove wrinkles and moisture from the fabric
Place the vinyl on the garment and cover it with protective paper
Press at medium pressure for 4 seconds
Remove the liner warm
Press again for 10 seconds with the same parameters to fix the vinyl
WASHING RESISTANCE
Washing resistance: max. 40 ºC
Wash the garment inside out.
Suitable for dry cleaning.
Detergents can be used.
CROSS-CUTTING SERVICE
If the formats we offer do not fully meet your needs, you can request custom cuts.
In the product sheet for the Cross-Cutting Service, we provide more details. This service is contracted and paid for separately. It is only applicable when purchasing full 25-metre rolls.
Proper handling of this product will not result in the formation or release of hazardous components. This product is not classified as hazardous under the current GefStoffV legislation or the criteria of the European Union. Therefore, the preparation of a safety data sheet is not mandatory in this case. The safety data sheet is only provided to fulfil the information requirements under Regulation (EC) No. 1907/2006 (REACH) and can be sent upon request. This product is neither classified as hazardous under transport legislation nor composed of high-risk liquid substances, complying with household health regulations. The waste generated from the application and end-of-life cycle of the product must comply with the legal disposal standards of the relevant/national entities in charge.
