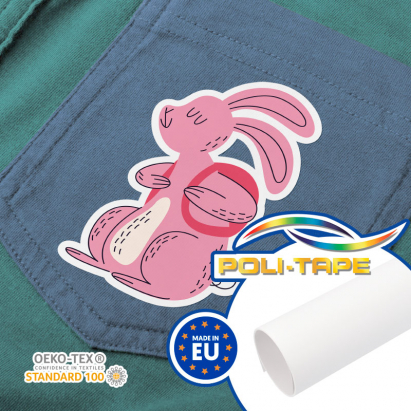

POLI-FLEX 4605 is a PU film (polyurethane) thermo-adhesive printable for textile transfer on all types of fabrics, both light and dark, except nylon and water-repellent impregnated fabrics.
Printable on the porous side
The 25 metres roll has a cardboard core or tube of Ø7.5 cm
The liner or support is a self-adhesive polyester film with a glossy finish of 175 μ
Manufactured in Germany by Poli-Tape
THINGS TO KEEP IN MIND
To facilitate the placement of the vinyl on the garment, we recommend using the Poli-Tack 854 carrier, see Related Products
Not compatible with Epson EcoTank inkjet printer inks
After printing the vinyl with the ink, it should be left to dry. It can be transferred to the garment when the ink is dry to the touch
The manufacturer recommends conducting prior tests with your eco-solvent ink before printing
Print the design on the porous side in direct mode
Let the ink dry
When the ink is dry to the touch, cut the vinyl with a plotter
Remove the excess vinyl (weeding process)
Apply the Poli-Tack 854 carrier with the help of a squeegee
Heat the press to 160 ºC
Place the garment on the press and pre-press for 4-5 seconds to remove wrinkles and moisture from the fabric
Place the vinyl on the garment
Press with medium pressure for 15 seconds
Remove the carrier sheet hot
If you want a glossy finish, place a piece of laminate over the design and protective paper on top
Press applying the vinyl parameters
Open the press and remove the laminate
WASH RESISTANCE
Wash resistance: max. 60 ºC
Only colour detergents
Wash the garment inside out
Iron the garment inside out
Suitable for tumble drying
CROSS-CUTTING SERVICE
If the formats we offer do not fully meet your needs, you can request custom cuts.
In the product sheet of the Cross-Cutting Service, we explain more details. It is contracted and paid separately. Service only applicable when purchasing complete rolls of 25 metres.
Proper handling of this product will not lead to the formation or release of hazardous components. This product is not classified as dangerous goods under current GefStoffV legislation or under the criteria of the European Union. Therefore, the preparation of a safety data sheet is not mandatory in this case. The safety data sheet is only provided to complete the information requirements under the statute (EG) Nr. 0907/2006 (REACH) and can be sent upon request. This product is neither dangerous goods under transport legislation nor composed of high-risk liquid substances, complying with household health regulations. Waste generated from the application and end-of-life cycle of the product must comply with the legal disposal standards of the respective national authorities.
https://www.brildor.com/en/printable-textile-vinyl-inkjet-poli-flex-4605-poli-tape14083Printable Textile Vinyl Inkjet - Poli-Flex 4605 by Poli-Tape<p class="enlace"><a id="know-more"></a> </p>
<h2>More information about the Printable Textile Vinyl Inkjet - Poli-Flex 4605 by Poli-Tape</h2>
<p> </p>
<p><strong>INDEX</strong></p>
<p>> <a href="#know-more0">Description</a></p>
<p>> <a href="#know-more2">Things to keep in mind</a></p>
<p>> <a href="#know-more3">Parameters</a></p>
<p>> <a href="#know-more4">ICC Profiles</a></p>
<p>> <a href="#know-more5">Application Instructions</a></p>
<p>> <a href="#know-more6">Wash Resistance</a></p>
<p>> <a href="#know-more7">Cross-Cutting Service</a></p>
<p>> <a href="#know-more8">Weights</a></p>
<p>> <a href="#know-more9">Related Posts</a></p>
<p>> <a href="#know-more10">Technical Data Sheet</a></p>
<p>> <a href="#know-more11">Safety Data Sheet</a></p>
<p> </p>
<p class="enlace"><a id="know-more0"></a> </p>
<p><strong>DESCRIPTION</strong></p>
<p>POLI-FLEX 4605 is a <strong>PU film</strong> (polyurethane) <strong>thermo-adhesive printable</strong> for textile transfer on all types of fabrics, both light and dark, except nylon and water-repellent impregnated fabrics.</p>
<ul>
<li>Printable on the porous side</li>
<li>The <strong>25 metres</strong> roll has a cardboard core or tube of <span class="azul-negrita">Ø7.5 cm</span></li>
<li>The <strong>liner</strong> or <strong>support</strong> is a <strong>self-adhesive polyester film</strong> with a glossy finish of <span class="azul-negrita">175 μ</span></li>
<li>Manufactured in Germany by Poli-Tape</li>
</ul>
<p> </p>
<p class="enlace"><a id="know-more2"></a> </p>
<p><strong>THINGS TO KEEP IN MIND<br></strong></p>
<ul>
<li>To facilitate the placement of the vinyl on the garment, we recommend using the <strong>Poli-Tack 854</strong> carrier, see <strong>Related Products</strong></li>
<li>Not compatible with <strong>Epson EcoTank inkjet printer inks</strong></li>
<li>After printing the vinyl with the ink, it should be left to dry. It can be transferred to the garment when the ink is dry to the touch</li>
<li>The manufacturer recommends conducting prior tests with your <strong>eco-solvent ink</strong> before printing</li>
</ul>
<p> </p>
<p class="enlace"><a id="know-more3"></a> </p>
<p><strong>PARAMETERS<br></strong></p>
<ul>
<li>Temperature: <span class="azul-negrita">160 ºC</span></li>
<li>Pressure: <span class="azul-negrita">2.5</span> - <span class="azul-negrita">3.0 bar</span> [medium pressure]</li>
<li>Time: <span class="azul-negrita">15 seconds</span></li>
<li>Pre-ironing of the garment: <span class="azul-negrita">160 ºC</span>, <span class="azul-negrita">4-5 seconds</span></li>
</ul>
<p> </p>
<p class="enlace"><a id="know-more4"></a> </p>
<p><strong>ICC PROFILES<br></strong></p>
<p><a title="ICC Profiles for detailed vinyl printing settings" href="https://www.brildor.com/media/upload/descargas/Perfil_Color_Vinilo_Imprimible_Poli_Flex_4606.icc" target="_blank" rel="nofollow noopener">ICC Profiles for detailed vinyl printing settings (.icc - 0.58 MB)</a></p>
<p> </p>
<p class="enlace"><a id="know-more5"></a> </p>
<p><strong>APPLICATION INSTRUCTIONS<br></strong></p>
<ul>
<li>Print the design on the porous side in <strong>direct mode</strong></li>
<li>Let the ink dry</li>
<li>When the ink is dry to the touch, cut the vinyl with a plotter</li>
<li>Remove the excess vinyl (weeding process)</li>
<li>Apply the <strong>Poli-Tack 854</strong> carrier with the help of a squeegee</li>
<li>Heat the press to <span class="azul-negrita">160 ºC</span></li>
<li>Place the garment on the press and pre-press for <span class="azul-negrita">4-5 seconds</span> to remove wrinkles and moisture from the fabric</li>
<li>Place the vinyl on the garment</li>
<li>Press with <strong>medium pressure</strong> for <span class="azul-negrita">15 seconds</span></li>
<li>Remove the carrier sheet <strong>hot</strong></li>
<li>If you want a glossy finish, place a piece of laminate over the design and protective paper on top</li>
<li>Press applying the vinyl parameters</li>
<li>Open the press and remove the laminate</li>
</ul>
<p> </p>
<p class="enlace"><a id="know-more6"></a> </p>
<p><strong>WASH RESISTANCE<br></strong></p>
<ul>
<li>Wash resistance: max. <span class="azul-negrita">60 ºC</span></li>
<li>Only colour detergents</li>
<li>Wash the garment inside out</li>
<li>Iron the garment inside out</li>
<li>Suitable for tumble drying</li>
</ul>
<p> </p>
<p class="enlace"><a id="know-more7"></a> </p>
<p><strong>CROSS-CUTTING SERVICE</strong></p>
<p>If the formats we offer do not fully meet your needs, you can request custom cuts.</p>
<p>In the product sheet of the <a title="Cross-Cutting Service" href="https://www.brildor.com/en/cutting-service-for-rolls" target="_blank" rel="noopener">Cross-Cutting Service</a>, we explain more details. It is contracted and paid separately. Service only applicable when purchasing complete rolls of <strong>25 metres</strong>.</p>
<p> </p>
<p class="enlace"><a id="know-more8"></a> </p>
<p><strong>WEIGHTS</strong></p>
<table>
<tbody>
<tr>
<td colspan="3"><strong>SHEETS</strong><span class="azul-negrita"><br></span></td>
</tr>
<tr>
<td>Format</td>
<td style="text-align: center;"><span class="azul-negrita">A4<br></span></td>
<td style="text-align: center;"><span class="azul-negrita">A3<br></span></td>
</tr>
<tr>
<td>Weight (kg)</td>
<td style="text-align: center;"><span class="azul-negrita">0.2<br></span></td>
<td style="text-align: center;"><span class="azul-negrita">0.4<br></span></td>
</tr>
</tbody>
</table>
<table>
<tbody>
<tr>
<td colspan="4"><strong>ROLLS</strong></td>
</tr>
<tr>
<td>Roll (m)</td>
<td style="text-align: center;"><span class="azul-negrita">1</span></td>
<td style="text-align: center;"><span class="azul-negrita">5</span></td>
<td style="text-align: center;"><span class="azul-negrita">25</span></td>
</tr>
<tr>
<td>Weight (kg)</td>
<td style="text-align: center;"><span class="azul-negrita">0.17</span></td>
<td style="text-align: center;"><span class="azul-negrita">0.85</span></td>
<td style="text-align: center;"><span class="azul-negrita">4.25</span></td>
</tr>
</tbody>
</table>
<p> </p>
<p class="enlace"><a id="know-more9"></a> </p>
<p><strong>RELATED POSTS<br></strong></p>
<p><a title="Complete guide on printable textile vinyl" href="https://www.brildor.com/blog/es/guia-completa-sobre-vinilo-textil-imprimible/" target="_blank" rel="nofollow noopener">Complete guide on printable textile vinyl</a></p>
<p><a title="How to use inkjet vinyl on t-shirts" href="https://www.brildor.com/blog/es/como-utilizar-el-vinilo-inkjet-en-camisetas/" target="_blank" rel="nofollow noopener">How to use inkjet vinyl on t-shirts</a></p>
<p> </p>
<p class="enlace"><a id="know-more10"></a> </p>
<p><strong>TECHNICAL DATA SHEET<br></strong></p>
<p><a title="Technical Data Sheet Poli-Flex 4605" href="https://www.brildor.com/media/upload/descargas/Ficha_Tecnica_Vinilo_Textil_Imprimible_Poli_Flex_4605_Poli_Tape_ES.pdf" target="_blank" rel="nofollow noopener">Technical Data Sheet Poli-Flex 4605 (.pdf - 0.06 MB)</a></p>
<p> </p>
<p class="enlace"><a id="know-more11"></a> </p>
<p><strong>SAFETY DATA SHEET<br></strong></p>
<p>Proper handling of this product will not lead to the formation or release of hazardous components. This product is not classified as dangerous goods under current GefStoffV legislation or under the criteria of the European Union. Therefore, the preparation of a safety data sheet is not mandatory in this case. The safety data sheet is only provided to complete the information requirements under the statute (EG) Nr. 0907/2006 (REACH) and can be sent upon request. This product is neither dangerous goods under transport legislation nor composed of high-risk liquid substances, complying with household health regulations. Waste generated from the application and end-of-life cycle of the product must comply with the legal disposal standards of the respective national authorities.</p>https://www.brildor.com/media/catalog/product/v/i/vinilo-textil-imprimible-inkjet-poli-flex-4605.jpg12.79instock012.79000https://www.brildor.com/media/catalog/product/v/i/vinilo-textil-imprimible-inkjet-poli-flex-4605.jpg16163181551909644680/Vinyl/Vinyl/Printable HTV2021-07-24T06:12:16+0000
How to apply Inkjet Printable Textile Vinyl
