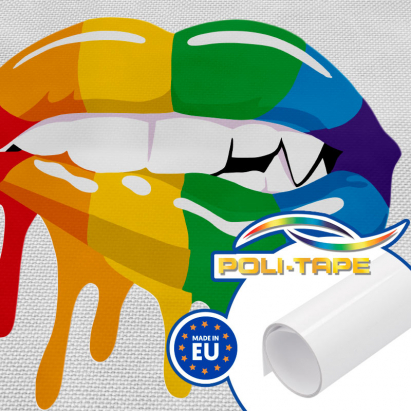

TURBO PRINT 4037 UV is a thermo-adhesive printable PU (polyurethane) film for textile transfer on cotton, polyester, polyester-cotton, polyester-acrylic, and non-waterproof nylon fabrics.
Printable on the matte side
Compatible with all UV printers
The 10-metre roll has a cardboard core of Ø7.5 cm
The raw materials used are eco-friendly, containing no PVC, plasticisers, or heavy metals
Manufactured in Germany by Poli-Tape
THINGS TO KEEP IN MIND
To facilitate the placement of the vinyl on the garment, we recommend using the Poli-Tack 854 or Poli-Tack 870 transfer tape, see Related Products
TECHNICAL DATA
Vinyl
Opaque white polyurethane
Thickness (μ)
100
Adhesive
Co-polyester hotmelt
Support/Liner
Thermo-adhesive PET film
TRANSFER PARAMETERS
COTTON, POLYESTER, POLYESTER-COTTON, AND POLYESTER-ACRYLIC
Proper handling of this product will not lead to the formation or release of hazardous components. This product is not classified as dangerous goods under current GefStoffV legislation or EU criteria. Therefore, the preparation of a safety data sheet is not mandatory. The safety data sheet is only provided to meet the informational requirements under regulation (EC) No. 1907/2006 (REACH) and can be sent upon request. This product is not classified as dangerous goods under transport legislation and does not contain high-risk liquid substances, complying with household health regulations. Waste generated from the application and end-of-life cycle of the product must comply with the legal disposal standards of the respective national authorities.
https://www.brildor.com/en/printable-textile-vinyl-turbo-print-4037-uv-poli-tape49091Printable Textile Vinyl - Turbo Print 4037 UV by Poli-Tape<p class="enlace"><a id="know-more"></a> </p>
<h2>More information about Printable Textile Vinyl - Turbo Print 4037 UV by Poli-Tape</h2>
<p> </p>
<p><strong>INDEX</strong></p>
<p>> <a href="#know-more1">Description</a></p>
<p>> <a href="#know-more2">Things to keep in mind</a></p>
<p>> <a href="#know-more12">Technical data</a></p>
<p>> <a href="#know-more3">Transfer parameters</a></p>
<p>> <a href="#know-more4">ICC profiles</a></p>
<p>> <a href="#know-more5">Application instructions</a></p>
<p>> <a href="#know-more6">Wash resistance</a></p>
<p>> <a href="#know-more8">Weights</a></p>
<p>> <a href="#know-more9">Related posts</a></p>
<p>> <a href="#know-more10">Technical sheet</a></p>
<p>> <a href="#know-more11">Safety data sheet</a></p>
<p> </p>
<p class="enlace"><a id="know-more1"></a> </p>
<p><strong>DESCRIPTION</strong></p>
<p>TURBO PRINT 4037 UV is a <strong>thermo-adhesive printable PU</strong> (polyurethane) film for textile transfer on cotton, polyester, polyester-cotton, polyester-acrylic, and non-waterproof nylon fabrics.</p>
<ul>
<li>Printable on the matte side</li>
<li>Compatible with all UV printers</li>
<li>The <strong>10-metre</strong> roll has a cardboard core of <span class="azul-negrita">Ø7.5 cm</span></li>
<li>The raw materials used are eco-friendly, containing no PVC, plasticisers, or heavy metals</li>
<li>Manufactured in Germany by Poli-Tape</li>
</ul>
<p> </p>
<p class="enlace"><a id="know-more2"></a> </p>
<p><strong>THINGS TO KEEP IN MIND</strong></p>
<ul>
<li>To facilitate the placement of the vinyl on the garment, we recommend using the <strong>Poli-Tack 854</strong> or <strong>Poli-Tack 870</strong> transfer tape, see <strong>Related Products</strong></li>
</ul>
<p> </p>
<p class="enlace"><a id="know-more12"></a> </p>
<p><strong>TECHNICAL DATA</strong></p>
<table>
<tbody>
<tr>
<td><strong>Vinyl<br></strong></td>
<td>Opaque white polyurethane</td>
</tr>
<tr>
<td><strong>Thickness (μ)</strong><strong><br></strong></td>
<td><span class="azul-negrita">100</span></td>
</tr>
<tr>
<td><strong>Adhesive</strong></td>
<td>Co-polyester hotmelt</td>
</tr>
<tr>
<td><strong>Support/Liner</strong></td>
<td>Thermo-adhesive PET film</td>
</tr>
</tbody>
</table>
<p> </p>
<p class="enlace"><a id="know-more3"></a> </p>
<p><strong>TRANSFER PARAMETERS<br></strong></p>
<p><strong>COTTON, POLYESTER, POLYESTER-COTTON, AND POLYESTER-ACRYLIC</strong></p>
<p>Can be applied at different temperatures:</p>
<ul>
<li>Temperature - Time:
<ul>
<li><span class="azul-negrita">130 ºC</span> - <span class="azul-negrita">5 seconds</span></li>
<li><span class="azul-negrita">150 ºC</span> - <span class="azul-negrita">4 seconds</span></li>
<li><span class="azul-negrita">160 ºC</span> - <span class="azul-negrita">3 seconds</span></li>
</ul>
</li>
<li>Pressure: <span class="azul-negrita">2.5</span> - <span class="azul-negrita">3.0 bar</span> [medium pressure]</li>
<li>Pre-pressing the garment: <span class="azul-negrita">4-5 seconds</span></li>
</ul>
<p><strong>NYLON</strong></p>
<ul>
<li>Temperature: <span class="azul-negrita">150 ºC</span></li>
<li>Pressure: <span class="azul-negrita">2.0 bar</span> [low pressure]</li>
<li>Transfer time: <span class="azul-negrita">5 seconds</span></li>
<li>Fixation time: <span class="azul-negrita">10 seconds</span></li>
<li>Pre-pressing the garment: <span class="azul-negrita">150 ºC</span>, <span class="azul-negrita">4-5 seconds</span></li>
</ul>
<p> </p>
<p class="enlace"><a id="know-more4"></a> </p>
<p><strong>ICC PROFILES<br></strong></p>
<p><a title="ICC profiles for detailed vinyl printing settings" href="https://www.poli-tape.de/es/productos/textile-graphics/icc-perfil-textile-graphics" target="_blank" rel="nofollow noopener">ICC profiles for detailed vinyl printing settings</a></p>
<p> </p>
<p class="enlace"><a id="know-more5"></a> </p>
<p><strong>APPLICATION INSTRUCTIONS<br></strong></p>
<p><strong>COTTON, POLYESTER, POLYESTER-COTTON, AND POLYESTER-ACRYLIC</strong></p>
<ul>
<li>Print the design on the matte side in <strong>direct mode</strong></li>
<li>Cut it with a plotter</li>
<li>Remove the excess vinyl (weeding)</li>
<li>Place the garment on the press and pre-press for <span class="azul-negrita">4-5 seconds</span> to remove wrinkles and moisture from the fabric</li>
<li>Place the vinyl on the garment</li>
<li>Press at <span class="azul-negrita">130 ºC</span> (<span class="azul-negrita">5 seconds</span>), <span class="azul-negrita">150 ºC</span> (<span class="azul-negrita">4 seconds</span>), or <span class="azul-negrita">160 ºC</span> (<span class="azul-negrita">3 seconds</span>) with <strong>medium pressure</strong></li>
<li>Remove the liner when <strong>warm</strong></li>
</ul>
<p><strong>NYLON</strong></p>
<ul>
<li>Print the design on the matte side in <strong>direct mode</strong></li>
<li>Cut it with a plotter</li>
<li>Remove the excess vinyl (weeding)</li>
<li>Heat the press to <span class="azul-negrita">150 ºC</span></li>
<li>Place the garment on the press and pre-press for <span class="azul-negrita">5 seconds</span> to remove wrinkles and moisture from the fabric</li>
<li>Place the vinyl on the garment</li>
<li>Press with <strong>low pressure</strong> for <span class="azul-negrita">4-5 seconds</span></li>
<li>Remove the liner when <strong>warm</strong></li>
<li>Cover with protective paper and press at <span class="azul-negrita">150 ºC</span> for <span class="azul-negrita">10 seconds</span> with <strong>low pressure</strong></li>
</ul>
<p> </p>
<p class="enlace"><a id="know-more6"></a> </p>
<p><strong>WASH RESISTANCE<br></strong></p>
<ul>
<li>Wash resistance: max. <span class="azul-negrita">60 ºC</span></li>
<li>Only use colour or mild detergents</li>
<li>Wash the garment inside out</li>
<li>Iron the garment inside out</li>
<li>Suitable for tumble drying (up to <span class="azul-negrita">100 ºC</span>)</li>
</ul>
<p> </p>
<p class="enlace"><a id="know-more8"></a> </p>
<p><strong>WEIGHTS</strong></p>
<table>
<tbody>
<tr>
<td>Roll (m)</td>
<td style="text-align: center; vertical-align: middle;"><span class="azul-negrita">1</span></td>
<td style="text-align: center; vertical-align: middle;"><span class="azul-negrita">10</span></td>
</tr>
<tr>
<td>Weight (kg)</td>
<td style="text-align: center; vertical-align: middle;"><span class="azul-negrita">0.144</span></td>
<td style="text-align: center; vertical-align: middle;"><span class="azul-negrita">1.945</span></td>
</tr>
</tbody>
</table>
<p> </p>
<p class="enlace"><a id="know-more9"></a> </p>
<p><strong>RELATED POSTS<br></strong></p>
<p><a title="Complete guide on printable textile vinyl" href="https://www.brildor.com/blog/es/guia-completa-sobre-vinilo-textil-imprimible/" target="_blank" rel="nofollow noopener">Complete guide on printable textile vinyl</a></p>
<p> </p>
<p class="enlace"><a id="know-more10"></a> </p>
<p><strong>TECHNICAL SHEET<br></strong></p>
<p>We have adapted the formats to our customers' needs, and these may not match those listed in the following safety sheet, prepared by the manufacturer.</p>
<p><a title="Turbo Print 4037 UV Technical Sheet (.pdf - 0.04 MB)" href="https://www.brildor.com/media/upload/descargas/Ficha_Tecnica_Vinilo_Textil_Imprimible_Turbo_Print_4037_UV_Poli_Tape_ES.pdf" target="_blank" rel="nofollow noopener">Turbo Print 4037 UV Technical Sheet (.pdf - 0.04 MB)</a></p>
<p> </p>
<p class="enlace"><a id="know-more11"></a> </p>
<p><strong>SAFETY DATA SHEET<br></strong></p>
<p>Proper handling of this product will not lead to the formation or release of hazardous components. This product is not classified as dangerous goods under current GefStoffV legislation or EU criteria. Therefore, the preparation of a safety data sheet is not mandatory. The safety data sheet is only provided to meet the informational requirements under regulation (EC) No. 1907/2006 (REACH) and can be sent upon request. This product is not classified as dangerous goods under transport legislation and does not contain high-risk liquid substances, complying with household health regulations. Waste generated from the application and end-of-life cycle of the product must comply with the legal disposal standards of the respective national authorities.</p>https://www.brildor.com/media/catalog/product/v/i/vinilo-textil-imprimible-turbo-print-4037-uv.jpg6.95instock06.95000https://www.brildor.com/media/catalog/product/v/i/vinilo-textil-imprimible-turbo-print-4037-uv.jpg49451815544680/Vinyl/Vinyl/Printable HTV2022-12-21T06:56:27+0000
