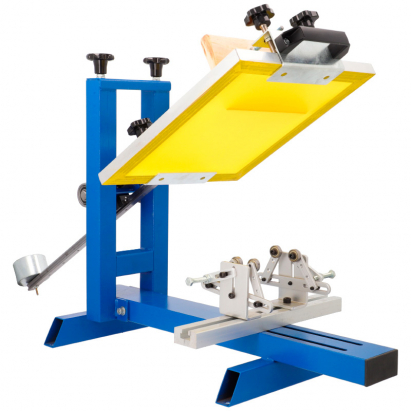

https://www.brildor.com/en/screen-printing-machine-cylindrical-objects27680Screen Printing Machine for Cylindrical Objects<p><a name="know-more"></a></p>
<h2>More information about the screen printing machine for cylindrical objects</h2>
<ul>
<li>The blue metal frame is strong but light and easy to assemble</li>
<li>Adjustable in height in 5 different positions allowing to screen print objects up to <span class="azul-negrita"><span class="azul-negrita">Ø30 </span>cm</span></li>
<li>The base is adjustable in 4 different positions, allowing the structure to move</li>
<li>Adjustable support structure designed to hold objects and rotate them on their axis using the side bearings</li>
<li>V-cut wooden squeegee with a hole in the middle for easy assembly</li>
<li>Aluminium frame covered with a <span class="azul-negrita">120 thread</span> mesh screen</li>
<li>Pressure clamp that holds the frame. With a handle for sliding the frame over the item</li>
<li>Print on it by pulling the handle from the inside out. That way, the squeegee will move up and down the screen to personalise the object</li>
</ul>
<p><strong>THINGS TO KEEP IN MIND</strong></p>
<ul>
<li>Not suitable for objects with a handle, e.g. mugs</li>
</ul>
<p> </p>
<p><strong>WHAT DOES THIS SCREEN PRINTING MACHINE INCLUDE?</strong></p>
<table >
<tbody>
<tr>
<td >1</td>
<td ><span class="azul-negrita">32 x 2,1 x 37,2 cm</span> aluminium frame with a <span class="azul-negrita">120 thread</span> mesh screen</td>
</tr>
<tr>
<td >1</td>
<td ><span class="azul-negrita">80 Shore A</span> squeegee</td>
</tr>
<tr>
<td >1</td>
<td >Tool kit containing Allen keys and 1 wrench</td>
</tr>
</tbody>
</table>
<p> </p>
<p><strong>DIMENSIONS (APPROX.)<br></strong></p>
<table>
<tbody>
<tr>
<td>General</td>
<td class="azul-negrita" style="text-align: left;">35.7 x 49.5 x 85 cm</td>
</tr>
<tr>
<td>Min. height</td>
<td class="azul-negrita" style="text-align: left;">49.5 cm</td>
</tr>
<tr>
<td>Max. height</td>
<td class="azul-negrita" style="text-align: left;">59.5 cm</td>
</tr>
<tr>
<td>Support structure</td>
<td class="azul-negrita" style="text-align: left;">35 x 2.5 x 5 cm</td>
</tr>
<tr>
<td>Screen</td>
<td class="azul-negrita" style="text-align: left;">26 x 31 cm</td>
</tr>
<tr>
<td>Squeegee</td>
<td class="azul-negrita" style="text-align: left;">19 x 13 x 2.3 cm</td>
</tr>
<tr>
<td>Squeegee hardness</td>
<td class="azul-negrita" style="text-align: left;">80 Shore A</td>
</tr>
<tr>
<td>Max. item size</td>
<td class="azul-negrita" style="text-align: left;">35 x <span class="azul-negrita">Ø30 cm</span></td>
</tr>
<tr>
<td>Screen clamp</td>
<td class="azul-negrita" style="text-align: left;">14.5 x 9.6 x 8.7 cm</td>
</tr>
<tr>
<td>Packaging</td>
<td class="azul-negrita" style="text-align: left;">71 x 26 x 41</td>
</tr>
<tr>
<td>Weight</td>
<td class="azul-negrita" style="text-align: left;">11.32 kg</td>
</tr>
</tbody>
</table>
<p><strong> </strong></p>https://www.brildor.com/media/catalog/product/m/a/maquina-serigrafia-objetos-cilindricos.jpg399instock39939900000https://www.brildor.com/media/catalog/product/m/a/maquina-serigrafia-objetos-cilindricos.jpg1677626010440584452144570/Screen Printing/Screen Printing/Machines2021-07-24T05:59:45+0000
