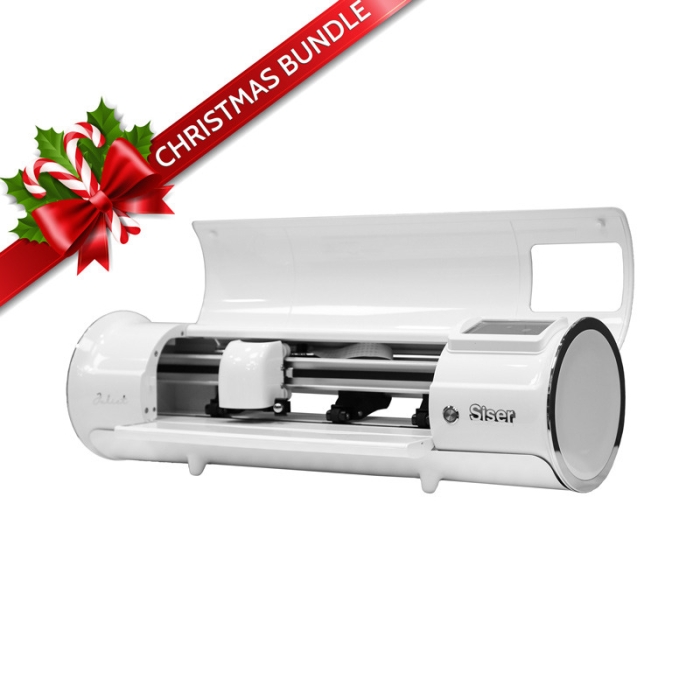

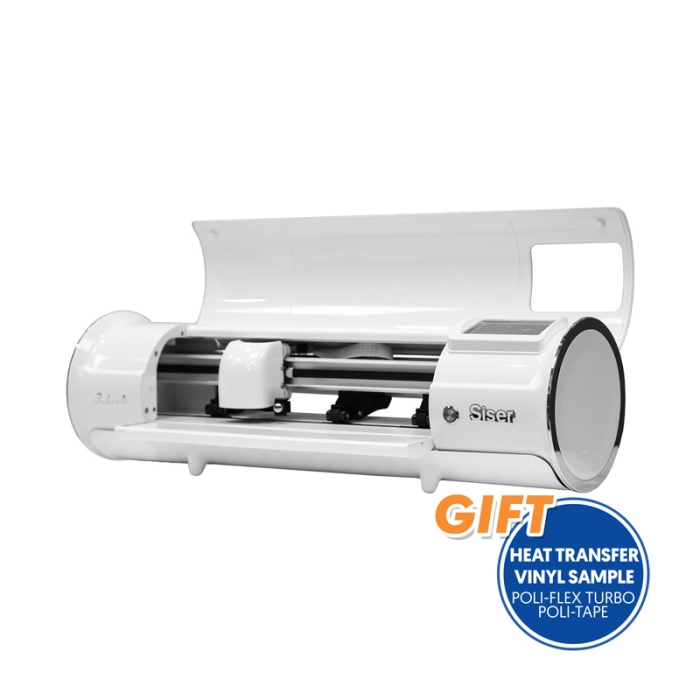

Siser Juliet - Vinyl Cutter
High precision plotter for cutting even the smallest and most complex details.Siser Juliet is perfect for professional projects up to 30 cm wide.
Maximum speed cutting force maximum: 600 mm/s and 800 gf
Cuts up to 5 m in length without the need for a cutting mat
Maximum cutting thickness: 1 mm
Leonardo Design software included
More information
Our availability is not enough?
Let us know how much you need
I WANT MORE
PLOTTER DE CORTE Siser Juliet & Romeo: análisis y pruebas
More information about on Siser Juliet - Vinyl Cutter
INDEX
> Features
> Things to keep in mind
> What is included in the Siser Juliet plotter?
> User manual
> Tech specs - Comparison of the cutting machines siser plotters
FEATURES
Perfect for : all kinds of handicrafts and professional work in multiple formatsWide variety of materials : works with all types of vinyl, cardboard, adhesive paper, felt, eva gum...Modern design : with a robust structure and the appearance of a capsule with a lid. Incorporates LED light in the cover with adjustable intensityMaximum precision : cuts fine details fine cuts with millimetre precision thanks to the integrated recording chamber in the cutter headLarge cutting length : Suitable for cutting materials up to 4.57 m long continuously with cutting blanketTouch control panel : easy to use, complete configuration of the machine without the need for a computer Preset creation : saves presets from the panel control panel to save cutting configurations for future useTest cut function : allows you to get the perfect settings without wasting materialAdjustable pressure rollers : with gripping force to suit the thickness and width of material. Adjustable via rear flangeCutting without blanket : allows materials to be cut without the need for a cutting matLeonardo Design software : multiple features and tools for creating and editing designs. Online library with designs and instructional videosConnectivity : Wi-Fi connection for transferring files from your computer or via the Internet. USB power cordWarranty : 3 years for manufacturing defects
THINGS TO KEEP IN MIND
The warranty does not cover: consumables, moving parts, elements exposed to wear and tear. Nor does it cover breakage resulting from knocks, accidents, misuse or abuse
You can download the software Leonardo Design Studio for free here . Compatible with Windows and MacOS

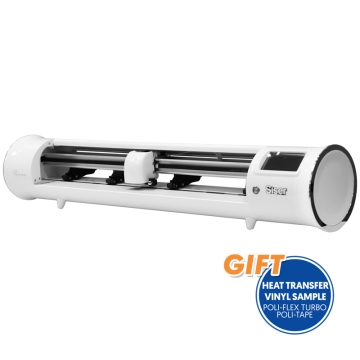

If you want to work with larger formats, the Siser Romeo plotter offers the same performance with a cutting width of 60 cm
WHAT DOES THE SISER JULIET CUTTING PLOTTER INCLUDE?

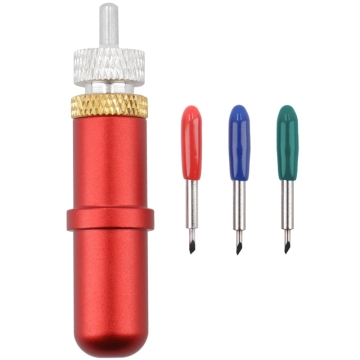

2 45° cemented carbide blades
1 60º cemented carbide blades
1 Blade holder
1 Adapter for markers
1 High-quality cutting mat tack 30.5 x 30.5 cm
1 Blade of protective paper
2 PS sheets film
1 Instruction manual ES-EN-FR
1 Cable USB
1 AC adapter
USER MANUAL
User_Manual_Plotter_Corte_Siser_Juliet (.pdf - 11,2 MB)
Datasheet_Plotter_Cut_Siser_Juliet (.pdf - 0,48 MB)
TECH SPECS - SISER PLOTTER COMPARISON
Model
Juliet
Romeo
Ref. BRILDOR
054126
054127
Motor
Stepper motor
Stepper motor
NO. printheads of cut
1
1
Cutting speed (mm/s)
600
600
Max. movement speed (mm/s)
700
700
Cutting force (gf)
800
800
Maximum cutting thickness (mm)
1
1
Max. cutting width (with cutting mat) (cm)
30.5
30.5
Max. cutting length (with cutting mat) (cm)
60
60
Max. cutting width (without cutting mat) (cm)
32
62.5
Max. cutting length (without cutting mat) (cm)
457
457
Cutting accuracy (mm)
±0.01
±0.01
Repetition accuracy (mm)
0.082
0.082
Noise level (in use) (dB)
≤ 78
≤ 78
Noise level (standby) (dB)
≤ 48
≤ 48
Temperature (ºC)
5 - 35
5 - 35
Voltage (V)
240 240
Power consumption (V)
24
24
Memory Processor (MB)
128
128
Connectivity
USB, Wi-Fi
USB, Wi-Fi
Operating system
Windows 10+, MacOS 12+
Windows 10+, MacOS 12+
File formats
JPG, PNG and SVG
JPG, PNG and SVG
Plotter dimensions (cm)
60.5 x 18.5 x 19
92 x 18 x 20 cm
Net weight (kg)
7
9.5
Packing dimensions (cm)
68 x 18.5 x 27.5 cm
100 x 30.5 x 28.5
Gross weight (kg)
11.8
16.1
More Information
Ref.
951572
https://www.brildor.com/en/siser-juliet-vinyl-cutter
51572
Siser Juliet - Vinyl Cutter
