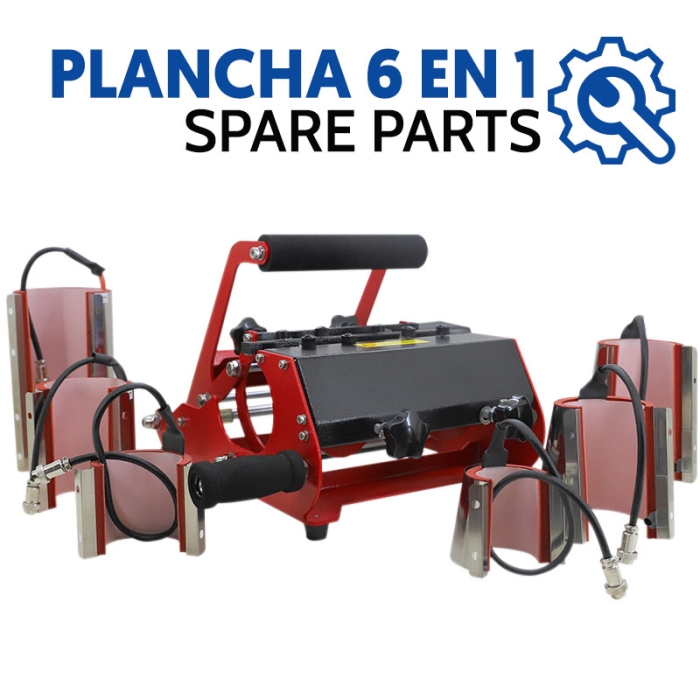

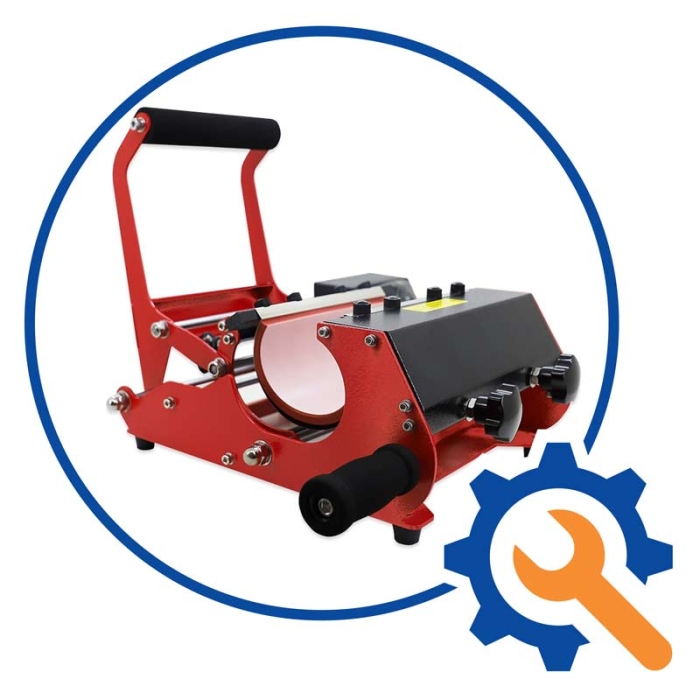

Spare Parts for 6-in-1 Mug Press

Spare parts for the 6-in-1 mug press (Ref. 033942).

More information

Availability:

Shown on each product

Conical resistance 12oz Ref: 032270

Conical Heating Element 12oz for BT-T5.1 and 6 in 1 Mug Press

€59.95 VAT not included / Each Unit

Availability Immediate: 0 units
Expected entries:
24/12/24: 4 units
25/02/25: 5 units

Conical resistance 17oz Ref: 032271

Conical Heating Attachment 17oz for BT-T5.1 and 6-in-1 Mug Press

€64.90 VAT not included / Each Unit

Availability Immediate: 3 units
Expected entries:
24/12/24: 3 units

Cylindrical resistance 6-9oz Ref: 032269

Cylindrical Heating Attachment 6-9oz for BT-T5.1 and 6 in 1 Mug Press

€54.95 VAT not included / Each Unit

Availability Immediate: 54 units
Expected entries:
25/02/25: 8 units

Cylindrical resistance 12-15oz Ref: 039237

Cylindrical Heating Element 12-15oz for 6-in-1 Mug Press

€63.95 VAT not included / Each Unit

Availability Immediate: 17 units

GY-04 Control Board Ref: 029419

GY-04 Control Board for Brildor Heat Presses

€68.95 VAT not included / Each Unit

Availability Immediate: 0 units
Expected entries:
24/12/24: 8 units
25/02/25: 4 units

Limit Switch Ref: 029429

€9.95 VAT not included / Each Unit

Availability Immediate: 0 units
Expected entries:
24/12/24: 10 units

View Price

VAT not included

Skip to the end of the images gallery

Skip to the beginning of the images gallery

More information about the Spare Parts for 6-in-1 Mug Press

INDEX

> Description of the replacements

> Breakdown

> Warranty

DESCRIPTION OF THE REPLACEMENTS

HEAT ELEMENTS

Cylindrical heat elements

Ref.	Shape	Type	A (cm)	B (cm)	Ø max. (cm)	Ø min. (cm)	Weight (g)	Example Ref. of use
032269	Cylindrical	6-9 oz	21.98	13.3	7.5	6.5	350	034188
039237	Cylindrical	12-15 oz	23	22	7	8.5	788

Conical heat element

Ref.	Shape	Type	A (cm)	B (cm)	C (cm)	Ø max. (cm)	Ø min. (cm)	Weight (g)	Example Ref. of use
032270	Conical	12 oz	17	11.7	27	Top: 6 Bottom: 9.5	Top: 5.8 Bottom: 9	456	948564
032271	Conical	17 oz	17.5	16.4	23.5	Top: 6 Bottom: 9	Top: 5.5 Bottom: 8.5	530

Measurements and usage suggestions are indicative. It is recommended to conduct tests.

THINGS TO KEEP IN MIND

The fabric lining of the long cylindrical heat element 12-15 oz (Ref. 039237) may detach or form bubbles in areas not in contact with the object during heat transfer. To avoid this:

Always use it with objects that can contact most of its inner surface. For example: bottles, jugs, vases....

Digital Controller GY-04

Ref. 029419

Programmable digital controller for time and temperature. Time range: 0-999 s. Temperature range: 0-225 ºC / 0-437 ºF.

User manual (.pdf - 164kb).

Limit Switch

Ref. 029429

Limit switch micro.

BREAKDOWN

6-in-1 Mug Press Manual (.pdf - 685kb)

WARRANTY

Replacements: 3 months

Press: 1 year

The period starts from the invoice date.

Additional Information

More Information
Ref.	948915
