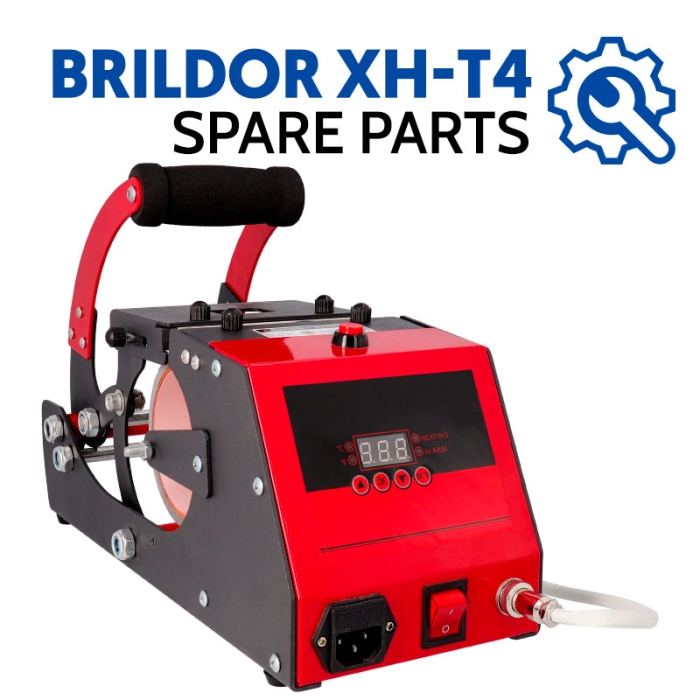

Spare Parts for Brildor XH-T4 4-in-1 Mug Press

Spare parts for the Brildor XH-T4 4-in-1 mug press (Ref. 041294).

More information

Availability:

Shown on each product

Cylindrical resistance 6oz Ref: 049121

6oz Cylindrical Heating Element for XH-T4 Mug Press

€39.90 VAT not included / Each Unit

Availability Immediate: 11 units

Cylindrical resistance 10oz Ref: 049119

10oz Cylindrical Heating Element for XH-T4 Mug Press

€39.90 VAT not included / Each Unit

Availability Immediate: 5 units

Cylindrical resistance 11oz Ref: 049120

Cylindrical Resistance 11oz for XH-T4 Mug Press

€39.90 VAT not included / Each Unit

Availability Immediate: 0 units
Expected entries:
28/11/24: 2 units
22/12/24: 2 units

Conical resistance 12oz Ref: 041303

Conical Resistance 12oz for Brildor XH Mug Press

€45.89 VAT not included / Each Unit

Availability Immediate: 0 units
Expected entries:
28/11/24: 1 units

View Price

VAT not included

Skip to the end of the images gallery

Skip to the beginning of the images gallery

More information about the Spare Parts for Brildor XH-T4 4-in-1 Mug Press

INDEX

> Description of the replacements

> Exploded view

> Warranty

DESCRIPTION OF THE REPLACEMENTS

Heating elements with silicone pad interior to adapt and not damage the material's surface
3rd generation male connectors
These heating elements are only compatible with the Brildor XH-T4 mug press. Installing these elements in other heat presses may cause irreparable damage

Cylindrical heating element

Reference	Shape	Type	A (cm)	B (cm)	Maximum Diameter (cm)	Minimum Diameter (cm)	Weight (g)	Example Ref. of use
049121	Cylindrical	6 oz	18.5	11.6	Ø7.5	Ø6.5	353	924644
049119	Cylindrical	10 oz	20.5	9.5	Ø8	Ø7	303	943649
049120	Cylindrical	11 oz	23	11.5	Ø8.5	Ø7.5	334	919477

Conical heating element

Reference	Shape	Type	A (cm)	B (cm)	C (cm)	Maximum Diameter (cm)	Minimum Diameter (cm)	Weight (g)	Example Ref. of use
041303	Conical	12 oz	17	12	23.5	Top:Ø6 Bottom:Ø9	Top:Ø5.5 Bottom:Ø8	367	928052

Measurements and usage suggestions are indicative. It is recommended to perform tests.

EXPLODED VIEW

4-in-1 Mug Press Manual XH-T4 (.pdf - 0.353 MB)

WARRANTY

Press: 1 year
Heating elements: 3 months

The period starts from the invoice date.

Additional Information

More Information
Ref.	944032
