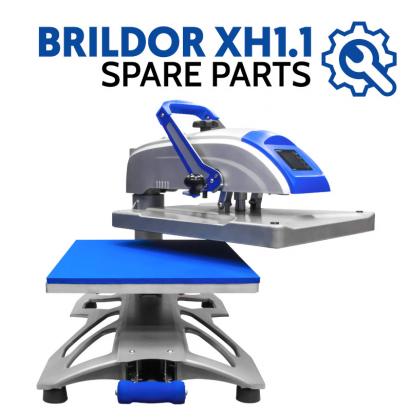

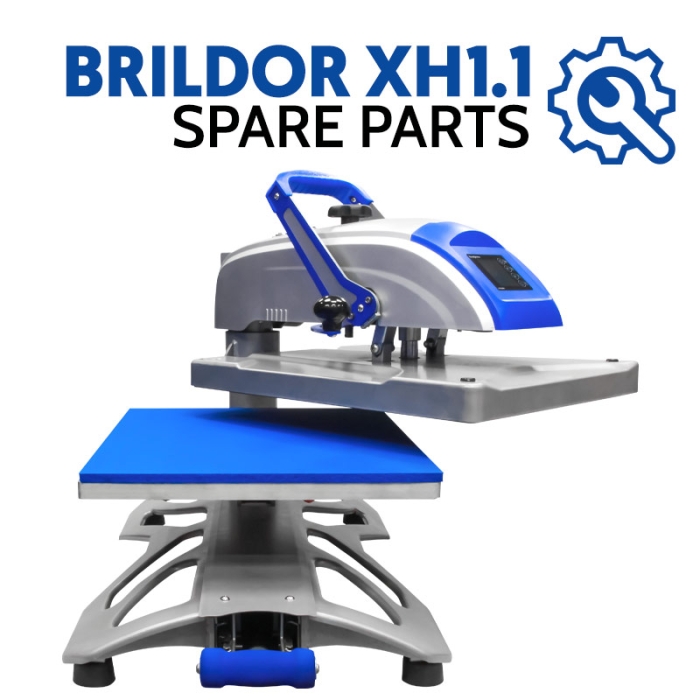

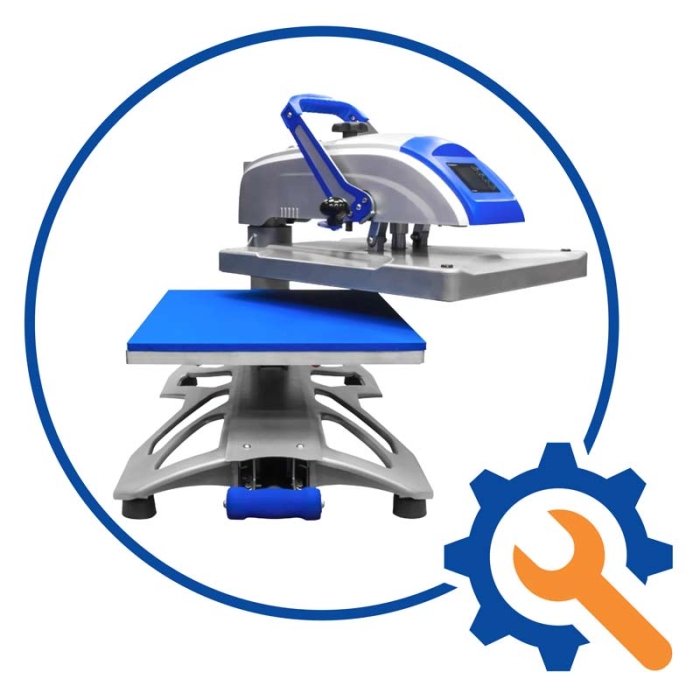

Spare Parts for Brildor XH1.1 Press

Spare parts for the XH1.1 rotating and removable press 40 x 50 cm (Ref. 037677).

More information

Availability:

Shown on each product

Hot Plate 40x50cm Ref: 053534

40x50cm hotplate for Brildor XH-B series irons

€139.00 VAT not included / Each Unit

Availability Immediate: 2 units

Digital controller IT930N Ref: 035528

Digital Controller IT930N for Brildor Presses

€89.95 VAT not included / Each Unit

Availability Immediate: 2 units
Expected entries:
28/11/24: 5 units
25/02/25: 3 units

Pressure mechanism Ref: 038456

€98.84 VAT not included / Each Unit

Availability Immediate: 4 units

Shaft with plate for platter movement Ref: 042642

Shaft with Plate for XH1.1 Press Plate Movement

€28.65 VAT not included / Each Unit

Availability Immediate: 0 units
Expected entries:
28/11/24: 8 units
25/02/25: 5 units

Probe Ref: 034078

Probe for Brildor Press Models XH-A4 and XH-B1.1

€9.90 VAT not included / Each Unit

Availability Immediate: 4 units
Expected entries:
28/11/24: 15 units

View Price

VAT not included

Skip to the end of the images gallery

Skip to the beginning of the images gallery

More information about Spare Parts for Brildor XH1.1 Press

INDEX

> Description of the replacements

> Exploded view

> Warranty

DESCRIPTION OF THE REPLACEMENTS

Plate with resistance 40x50 cm

Ref. 053534

Heat plate with Teflon coating that ensures quick and even heating.

IT930N digital controller

Ref. 035528

Programmable digital controller for time and temperature. Time range: 0-999s. Temperature range: 0-245 ºC / 0-482 ºF.

Pressure mechanism

Ref. 038456

Pressure mechanism with adjustment wheel. Dimensions: 24 x 19.6 x 27 cm

Shaft with plate for plate movement

Ref. 042642

Allows the movement of the heat plate. Spring included. Dimensions: 17 x 17 x 12 cm

Probe

Ref. 034078

Dimensions: 1 m in length.

EXPLODED VIEW

XH1.1 Iron Manual (.pdf - 1.21 MB)

WARRANTY

Replacements: 3 months
Iron: 1 year

The period starts from the invoice date.
