RECOMMENDED INSTRUCTIONS AND PARAMETERS FOR SUBLIMATION PRINTING
Parameters given for guidance only. It is recommended to carry out preliminary tests in order to make the necessary adjustments before starting production.
CUP GRIDDLE
Print on design in mode mirror
Preheat the press to 180 ºC
Place the printed side of the paper around the cup and fix it with heat adhesive tape
Insert the mould from aluminium into the glass
Place the glass in the press for mugs and close it for 120-160 seconds
With the help of a protective glove, remove the beaker as soon as it is sublimated
Carefully remove the glass from the paper
SUBLIMATION OVEN
Print the design in mode mirror
Heat the oven to 180°C
Place the printed part of the paper on the glass and stick it with thermal adhesive tape
Insert the mould from aluminium into the glass
Place the cup inside a bag heat shrink and use the stripping gun to adhere the bag to printed paper of the glass
Place the glass in the oven for 8-10 minutes
With the help of a protective glove, remove the heat shrink mould immediately. It is important to do this while hot. If it is not possible to remove it, reheat it for a few minutes at 200 ºC
Carefully remove the bag and the paper from the glass
https://www.brildor.com/en/sublimatable-thermal-cups-coloured-lids26638Sublimatable Thermal Cups with Coloured Lids<p class="enlace"><a id="saber-mas"></a> </p>
<h2>More information about the Sublimatable Thermal Cups with Coloured Lids</h2>
<p> </p>
<p><strong>INDEX</strong></p>
<p>> <a href="#saber-mas1">Description</a></p>
<p>> <a href="#saber-mas6">Mould</a></p>
<p>> <a href="#saber-mas2">Things to keep in mind</a></p>
<p>> <a href="#saber-mas3">Template</a></p>
<p>> <a href="#saber-mas4">Dimensions</a></p>
<p>> <a href="#saber-mas5">Recommended instructions and parameters for sublimation printing</a></p>
<p> </p>
<p class="enlace"><a id="saber-mas1"></a> </p>

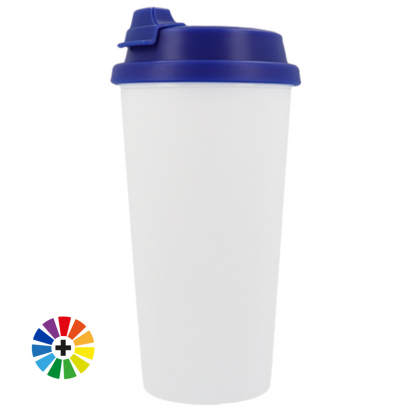

<p><strong>DESCRIPTION</strong></p>
<ul>
<li>Suitable for food consumption. Free of BPA (Bisphenol A)</li>
<li>Double walled to help maintain the liquid temperature for longer</li>
<li>Contain 3 pieces: outer cup, inner cup and lid</li>
<li>Lightweight, durable and reusable</li>
<li>Sublimatable outer cup</li>
<li>Unbreakable plastic inner cup finish gloss white. Not sublimatable</li>
<li>Lid with screw cap available in various colours</li>
<li>Flip-top spout and anti-drip silicone anti-drip ring to secure it to the cup</li>
<li>Can also be customised using other techniques such as <span class="azul-brildor-negrita">DTF</span>, <span class="azul-brildor-negrita">adhesive vinyl</span>, <span class="azul-brildor-negrita"> transfer</span> or <span class="azul-brildor-negrita">screen printing</span></li>
</ul>
<p> </p>
<p class="enlace"><a id="saber-mas6"></a> </p>
<p><strong>MOULD</strong></p>
<ul>
<li>From aluminium colour blue silver. Durable and reusable</li>
<li>Inserted inside the outer cup before personalisation. Fits snugly inside the outer glass</li>
<li>Prevents the outer glass from deforming during the dye sublimation printing on press or baking</li>
</ul>
<p> </p>
<p class="enlace"><a id="saber-mas2"></a> </p>
<p><strong>THINGS TO KEEP IN MIND</strong></p>
<ul>
<li>The item is shipped disassembled</li>
<li>Once the sublimated the outer beaker must be fitted inside the inner beaker to be able to use it properly</li>
<li>Not recommended for use in microwave o dishwasher</li>
</ul>
<p> </p>
<p class="enlace"><a id="saber-mas3"></a> </p>
<p><strong>TEMPLATE</strong></p>
<ul>
<li><a href="https://www.brildor.com/media/upload/descargas/Mascara_vaso_termico_de_plastico.psd" target="_blank" rel="nofollow noopener">Thermal cup template with lid colour (.psd - 1,05 MB</a></li>
</ul>
<p> </p>
<p class="enlace"><a id="saber-mas4"></a> </p>
<p><strong>DIMENSIONS<br></strong></p>
<table>
<tbody>
<tr>
<td> </td>
<td style="text-align: center;"><strong>Cup <br>outside (cm)<br></strong></td>
<td style="text-align: center;">
<p><strong> Beaker <br></strong><strong>inside (cm)</strong></p>
</td>
<td style="text-align: center;"><strong>Lid (cm)<br></strong></td>
<td style="text-align: center;"><strong>Mould (cm)<br></strong></td>
</tr>
<tr>
<td><strong>Height<br></strong></td>
<td class="azul-negrita" style="text-align: center;">16,2</td>
<td class="azul-negrita" style="text-align: center;">16</td>
<td style="text-align: center;"><span class="azul-negrita">4,5</span></td>
<td style="text-align: center;"><span class="azul-negrita">15,9</span></td>
</tr>
<tr>
<td><strong>Upper edge</strong></td>
<td class="azul-negrita" style="text-align: center;">Ø8,5</td>
<td class="azul-negrita" style="text-align: center;">Ø9</td>
<td style="text-align: center;"><span class="azul-negrita">---</span></td>
<td style="text-align: center;"><span class="azul-negrita">Ø8,3</span></td>
</tr>
<tr>
<td><strong>Base</strong></td>
<td class="azul-negrita" style="text-align: center;">Ø6,7</td>
<td class="azul-negrita" style="text-align: center;">Ø5,7</td>
<td style="text-align: center;"><span class="azul-negrita">Ø9,5</span></td>
<td style="text-align: center;"><span class="azul-negrita">Ø6,5</span></td>
</tr>
<tr>
<td><strong>Print area</strong></td>
<td class="azul-negrita" style="text-align: center;">27,5 x 15,5</td>
<td class="azul-negrita" style="text-align: center;">---</td>
<td class="azul-negrita" style="text-align: center;">---</td>
<td class="azul-negrita" style="text-align: center;">---</td>
</tr>
<tr>
<td><strong>Capacity</strong></td>
<td class="azul-negrita" style="text-align: center;">---</td>
<td class="azul-negrita" style="text-align: center;">25 oz ≈ 750 ml</td>
<td class="azul-negrita" style="text-align: center;">---</td>
<td class="azul-negrita" style="text-align: center;">---</td>
</tr>
</tbody>
</table>
<p> </p>
<p class="enlace"><a id="saber-mas5"></a> </p>
<p><strong>RECOMMENDED INSTRUCTIONS AND PARAMETERS FOR SUBLIMATION PRINTING</strong></p>
<p>Parameters given <strong>for guidance</strong> only. It is recommended to carry out preliminary tests in order to make the necessary adjustments before starting production.</p>
<p><strong>CUP GRIDDLE</strong></p>
<ul>
<li>Print on design in <strong>mode</strong> <strong> mirror</strong></li>
<li>Preheat the press to <span class="azul-negrita">180 ºC</span></li>
<li>Place the printed side of the paper around the cup and fix it with heat adhesive tape</li>
<li>Insert the mould from aluminium into the glass</li>
<li>Place the glass in the press for mugs and close it for <span class="azul-negrita">120-160 seconds</span></li>
<li>With the help of a protective glove, remove the beaker as soon as it is sublimated</li>
<li>Carefully remove the glass from the paper</li>
</ul>
<p><strong>SUBLIMATION OVEN</strong></p>
<ul>
<li>Print the design in <strong>mode</strong> <strong> mirror</strong></li>
<li>Heat the oven to <span class="azul-negrita">180°C</span></li>
<li>Place the printed part of the paper on the glass and stick it with thermal adhesive tape</li>
<li>Insert the mould from aluminium into the glass</li>
<li>Place the cup inside a bag heat shrink and use the stripping gun to adhere the bag to printed paper of the glass</li>
<li>Place the glass in the oven for <span class="azul-negrita">8-10 minutes</span></li>
<li>With the help of a protective glove, remove the heat shrink mould immediately. It is important to do this while hot. If it is not possible to remove it, reheat it for a few minutes at <span class="azul-negrita">200 ºC</span></li>
<li>Carefully remove the bag and the paper from the glass</li>
</ul>https://www.brildor.com/media/catalog/product/v/a/vasos-sublimacion-tapa-colores-d1.jpg3.95instock03.95000https://www.brildor.com/media/catalog/product/v/a/vasos-sublimacion-tapa-colores-d1.jpg1978225580271782803344634/Blanks/Blanks/Beer Steins & Tumblers/Blanks/Mother's Day/Blanks/Beer Steins & Tumblers/Tumblers & Cups2021-07-24T06:08:33+0000
