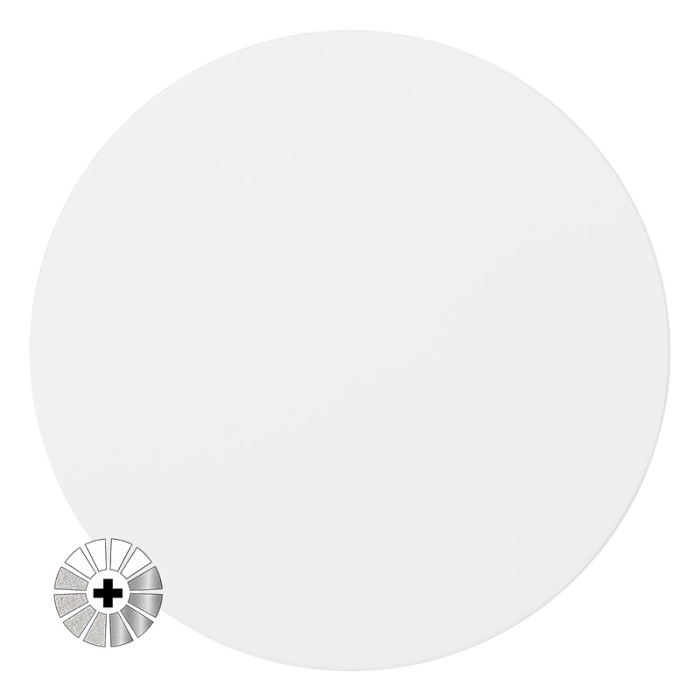

Sublimation Aluminium Inserts - Round
Round, glossy lacquered aluminium inserts that can be customised by sublimation .
Ideal for printing and customising a wide range of products.
Various sizes between Ø16.8 and Ø97 mm
Special attention to the units of sale
More information
Our availability is not enough?
Let us know how much you need
I WANT MORE
More information about the Sublimation Aluminium Inserts - Round
INDEX
> Description
> To be taken into account
> Dimensions
> Recommended instructions and parameters for sublimation printing
DESCRIPTION
Create your own personalised products giving a different touch with these badges. Use them to make key rings, earrings, fridge magnets...
Available in white, silver and gold colours, all with a shiny finish
TO BE TAKEN INTO ACCOUNT
The customisable side has a protective film that needs to be removed before sublimating
To attach these plates you can use double-sided tape, glue or a magnetic backing. Find some options in Related Products
Customisable on one side. Matte silver backing does not sublimate
DIMENSIONS
Ref. Colour Diameter (mm) Thickness (mm)
033608 White
16.8
0.52
038963 White
17.8
0.52
033612 White
22.3
0.53
038964 White
23
0.54
038965 White
23.6
0.53
033607 White
24.1
0.53
038966 White
24.5
0.54
038967 White
25
0.54
038968 White
27.7
0.54
038969 White
29.6
0.53
038970 White
30
0.54
033752 White
31.5
0.44
055494 White
32
0.54
038972 White
33.5
0.52
033616 White
37
0.53
031361 White
39
1
032426 Silver
39 1
032427 Gold
39 1
036320 White
41.6
0.53
033057 White
43
0.53
038976 White
47
0.53
026186 White
50
0.46
038977 White
52.5
0.53
038978 White
54.2
0.53
038979 White
56.7
0.53
035518 White
60 1
053965 White
70 0.5
054685 White
97 0.5
RECOMMENDED INSTRUCTIONS AND PARAMETERS FOR SUBLIMATION PRINTING
Parameters provided as a guideline . It is recommended to carry out preliminary tests in order to make the necessary adjustments before starting production.
Print the design in mirror image
Preheat the press to 200 ºC
Remove the protective film from the printable side of the insert
Place the insert on the press' lower platen with the paper's printed side against it. Fix it with heat-resistant tape
Press for 40 seconds , medium-heavy pressure
Using a protective glove, remove the newly printed insert
Carefully peel off the paper
More Information
Ref.
949624
Surface material
Aluminium
Items
Plates
Marking techniques
Dye sublimation
