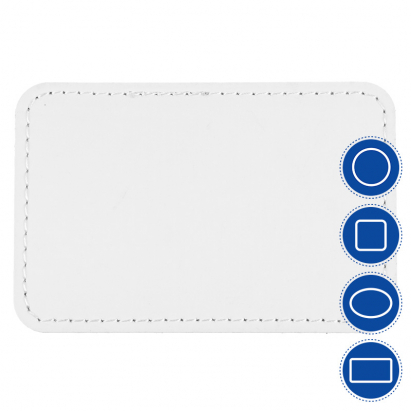

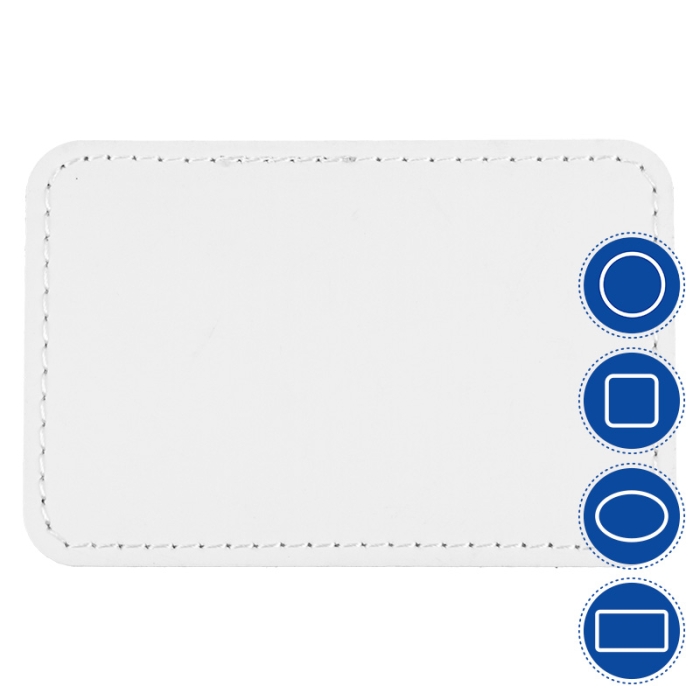

Ideal for personalising garments, bags, capsnotebooks... without the need for sewing.
Suitable for fixing on textile materials as well as on the hard surfaces
Back synthetic leather made of grey suede. Not sublimable
Edges in black colour. The patches rectangular and square have the edges in black. rounded corners
Heat-adhesive film with protective liner. The rough, dull side contains the adhesive material
They can also be customised with other techniques such as laser engraving, transfer, UV direct printing, vinyl, and DTF
THINGS TO KEEP IN MIND
To ensure the durability of the patch, it is recommended to flip the patch over and hand wash it. garment and hand wash it
TIPS AND TRICKS
Attach velcro to the patch and to the item you wish to personalise. This will allow you to easily change the patches patterns, giving the item a unique touch each time
DIMENSIONS
Product reference
051215
051218
051216
051217
Shape
Rectangular
Oval
Square
Round
Patch (cm)
7,6 x 5
7,5 x 5
7,5 x 7,5
Ø7,5
Thickness (mm)
1,5
1,5
1,5
1,5
Print area (cm)
7,6 x 5
7,5 x 5
7,5 x 7,5
Ø7,5
Weight (g)
4
4
6
4
INSTRUCTIONS AND RECOMMENDED SUBLIMATION AND APPLICATION PARAMETERS
Parameters indicated with as a guideline. It is recommended to carry out preliminary tests in order to make the necessary adjustments before starting production.
PATCH SUBLIMATION
Print the design on mode mirror
Preheat the press to 180 °C
Place the printed part of the paper on the patch of leatheretteand fix it with thermal adhesive tape
Close the press with pressure half for 60 seconds
With the help of a protective glove, remove the freshly applied patch. sublimated
Peel off the paper carefully
APPLYING HOTMELT FILM TO THE PATCH
Place the patch on the lower platen of the press with the sublimated side facing down and the rough side of the patch on the sheet side down and the rough side of the back of the patch. It is recommended to place protective paper on the lower platen and on top of the sheet
Iron at 140 ºC for 15 seconds to adhere the adhesive to the patch. sheet to the patch
APPLICATION OF THE CUSTOM PATCH
Preheat the press to 180 °C
Place protective paper on the lower platen
Remove the protective liner from the sheet
Place the product on the lower platen the press and place the patch over it in such a way that the adhesive side is in contact with the patch
Cover with protective paper
Close the press with medium pressure for 35-40 seconds
With the help of a protective glove, remove the product
