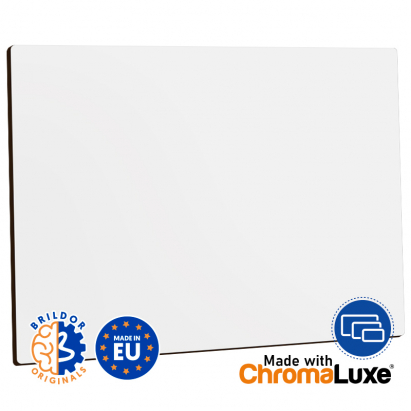

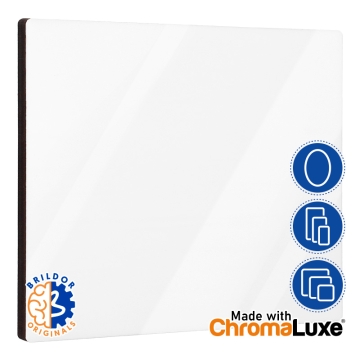

Sublimation MDF3 Basic Photo Panels
Square or rectangular shaped photographic panels, customisable on one side by dye sublimation printing .
Designed to create photo frames. Attach a tabletop stand or a hanger and you're done!
MDF 3 mm wood thick high quality wood
They come in a box that you can reuse to deliver the photopanel already sublimated
Available in different sizes and digital formats
Some formats are sold in packs of 2 units
More information
Our availability is not enough?
Let us know how much you need
I WANT MORE
More information about the Sublimation MDF3 Basic Photo Panels
INDEX
> Description
> Things to keep in mind
> Dimensions: Formats with Box A5
> Dimensions: Formats with Box A4 and A3
> Recommended instructions and parameters for sublimation printing
> Related posts
DESCRIPTION
Rounded edges. Brown back and edges
Sublimatable white surface gloss completely smooth, without irregularities
Can be placed on landscape or portrait orientation
They are presented in an box A5 or A3 board book, depending on the size of the A4 or A3, depending on the size of the panel. You can buy more boxes like these at Related Products (Ref. 943174)
They can also be personalised with other techniques such as screen printing , laser engraving , self-adhesive vinyl , transfer , DTF and UV direct printing
THINGS TO KEEP IN MIND
Brackets and hooks are not included. You can find different options at Related Products
If you opt for the MDF wood table stand as a support, it is recommended to use the 8 cm stand for the panels that you use in horizontal orientation and the 15 cm stand for the vertical ones
The face printable face has a film protective film on the clear plastic that must be removed before sublimating. The film of some photo panels includes an additional layer additional paper to further protect its surface. Easily removable
You will receive the box closed with adhesive tape and a label. Both are removable . They can be easily removed without damaging the box so that you can reuse it
DIMENSIONS: FORMATS WITH A5 BOX
Product reference 050664 050665 050666 050667 050668 050663 050670 050669 050671
Shape Rectangle
Rectangle
Rectangle
Square
Rectangle
Rectangle
Rectangle
Square
Rectangle
Sales unit 2 units
2 units
2 units
2 units
2 units
1 unit
1 unit
unit
1 unit
Print area (cm) 9x12 9x16 10x15 12x12 12x16 13x18 13x23 15x15 15x20
Digital format 4:3 16:9 3:2 1:1 4:3 --- 16:9 1:1 4:3
Thickness (mm) 3 3 3 3 3 3 3 3 3
Box (DIN) A5
A5
A5
A5
A5
A5
A5
A5
A5
Weight (g) 37 50 52 50 67 81 105 78 104
DIMENSIONS: BOXED FORMATS A4 and A3
Art. no. 050672 050673 050675 050674 050676 050677
Shape Rectangle
Rectangle
Rectangle
Rectangle
Rectangle
Rectangle
Sales unit 1 unit
1 unit
1 unit
1 unit
1 unit
1 unit
Print area (cm) 18x24 18x32 20x25 20x30 24x32 30x40
Digital format 4:3 16:9 5:4 3:2 4:3 4:3
Thickness (mm) 3 3 3 3 3 3
Box (DIN) A4
A4
A4
A4
A3
A3
Weight (g) 150 200 173 208 266 416
RECOMMENDED INSTRUCTIONS AND PARAMETERS FOR SUBLIMATION PRINTING
Print on design in mode mirror
Preheat the press to 200 ºC
Remove the protective plastic clear of the printable side from panel
Pre-iron for 5-10 seconds
Place the panel on the press and the printed part of the paper on the white side. Fix it with thermal adhesive tape
Close the press with medium-high pressure for 60 seconds
With the help of a protective glove, remove the panel from the new sublimated
Carefully peel off the paper
Place a weeder or a tabletop stand to use as a picture frame
RELATED POSTS
Ideas for selling in your Mother's Day campaign
