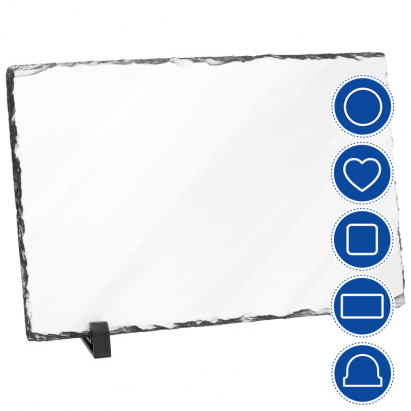

Made of slate rock with a polyester polymer coated side suitable for sublimation
Bevelled edges reveal the irregular cuts in the stone, simulating chisel marks
Shipped wrapped in bubble wrap inside an individual cardboard box
THINGS TO KEEP IN MIND
The slates may have some irregularities due to the material from which they are made
Printable side delimited by an irregular border; in some areas, the lacquer extends beyond this border
Each tabletop stand measures 8.1 x 4.4 x 1.2 cm
DIMENSIONS
Approximate values given as a guide, but may vary slightly due to normal irregularities in the morphology of the material.
Reference no
Shape
Finish
Photo Slates (cm)
Print area (cm)
Weight (kg)
036363
Rectangular
Gloss
10 x 15
13.2 x 8.5
0,266
050497
Rectangular
Matte
10 x 15
13.2 x 8.5
0,266
020030
Rectangular
Gloss
15 x 20
18 x 13
0,541
050593
Rectangular
Matte
15 x 20
18 x 13
0,541
027971
Rectangular
Gloss
20 x 30
28 x 18.5
1,138
050498
Rectangular
Matte
20 x 30
28 x 18.5
1,138
050496
Rectangular
Gloss
15 x 30
28 x 13.5
0,825
035940
Square
Gloss
15 x 15
12.5 x 12.5
0,398
030760
Square
Gloss
20 x 20
18.5 x 18.5
0,749
051488
Square
Matte
20 x 20
18,3 x 18,3
0,734
051489
Square
Gloss
30 x 30
28,5 x 28,5
1,664
051490
Square
Matte
30 x 30
28,5 x 28,5
1,718
033796
Heart
Gloss
15 x 15
13.5 x 13.8
0,433
038063
Heart
Gloss
20 x 20
19 x 18.5
0,797
037966
Bell
Gloss
20 x 20
20 x 19
0,813
051550
Bell
Matte
20 x 20
20 x 19
0,813
050494
Round
Gloss
Ø14
Ø13
0,371
050495
Round
Gloss
Ø30
Ø29
1,829
050493
Oval
Gloss
27 x 36
26 x 35
1,976
Recommended instructions and parameters for sublimation printing
Parameters are given as a guide only. They may vary due to many factors such as the type of sublimation paper, ink or ambient temperature. Therefore, testing is recommended.
HEAT PRESS
Choose your design and print it in mirror image
Preheat the press to 200ºC
To sublimate this product it is recommended to use a Nomex felt pad
Place the Nomex felt pad on the lower platen of the press and cover with protective paper to prevent ink smudging
Place the printed designface up on the Nomex felt pad and the photo slate face down in contact with the printed paper
You can use heat tape to prevent the design from moving. You can also cover it with protective paper
Press at 200ºC for 9 minutes, medium-high pressure
Open the press and remove the printed photo slate using a protective glove
WITH A 3D VACUUM OVEN HEAT PRESS
Print the design in mirror image
Preheat the 3D oven to 200ºC
Place the printed design face down on the white side of the photo slate and fix it with heat-resistant tape
Put the photo slate on the top tray of the oven with the printable side facing upwards
Close the membrane and vacuum, making sure there are no air bubbles left
Bake for 7- 8 minutes
Open the oven and take out the printed slate using a protective glove
