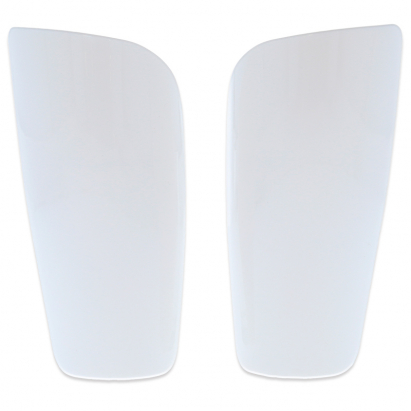

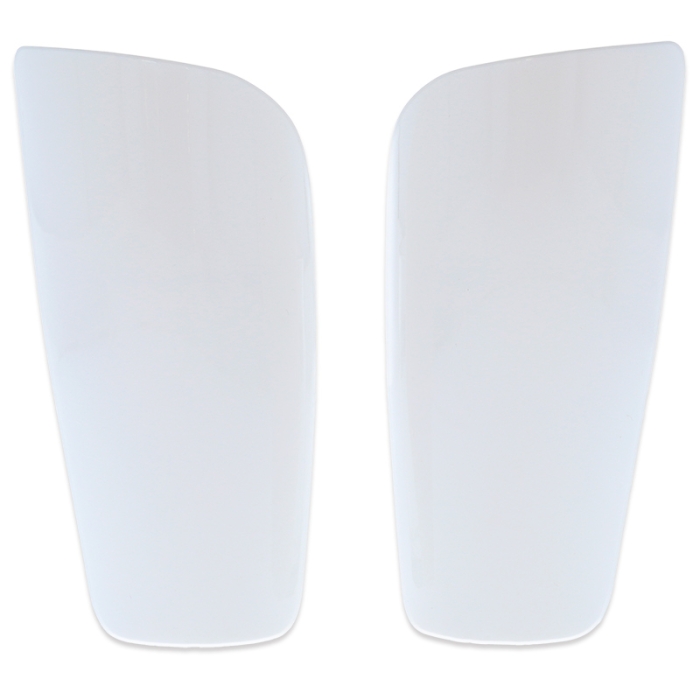

Perfect for any sports you would need to protect your lower legs, such as football, hockey, rollerblading, skateboarding, cycling or combat sports.
Can be personalised on the outside using a shin pad heat press; can also be sublimated using a 3D sublimation vacuum oven and the special shin pad moulds
Different models, all in gloss white: rigid plastic (smooth or honeycomb) and carbon fibre
The carbon fibre shin guards are more resistant and have a higher impact absorption capacity than the plastic ones
Back made of black EVA foam. It makes the shin pads pleasant to wear and reduces shock impacts, providing even better leg protection
THINGS TO KEEP IN MIND
The foam should be glued to the shin pad after sublimation
The size between the models varies slightly due to the shape of the shin guards: the smooth and carbon fiber ones have a straight line side finish, while the honeycomb ones end in a curved shape, slightly more arched
Plain and honeycomb shin guards are made of polybutylene terephthalate (PBT), which is a thermoplastic of the polyester polymer family
PERSONALISATION TEMPLATES
To see the template, open the PDF file using Photoshop. Remember to enable the layers:
Shin pad sleeves with a front opening to insert the shin pad and another one to place the leg in
Made of elastic white polyester fabric. With holes for better breathability
Can be sublimated with an all-over print using a flat heat press
Available for kids and adults
No distinction between left and right, which makes them easier to use
Unit of sale: pair of shin pad sleeves
CARRY BAG (REF. 051430)
Drawstring bag to store a pair of shin pads
Black mesh for breathability and displaying the contents easily
Adjustable drawstring closure
Sold individually
MOULDS (REF. 038765)
They allow you to personalise your shin pads in a 3D sublimation vacuum oven
Specially made to sublimate shin pads for both kids and adults
Coated with an aluminium layer
Highly pressure resistant
Unit of sale: pair of right/left shin pads

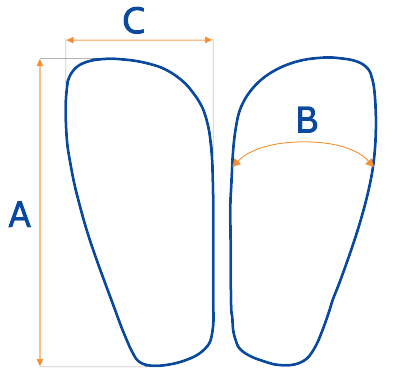

DIMENSIONS
Ref.
Shin pad model
Size
A (cm)
B (cm)
C (cm)
Thickness (cm)
038763
Smooth
Kid
14,6
10,2
8
2
038762
Smooth
Adult
17,1
11,3
8,5
2
039396
Smooth
XXL
18,9
12,3
9
2
040925
Honeycomb
Kid
14,3
9,6
6,9
2
040924
Honeycomb
Adult
16,7
11,1
7,9
2
040926
Honeycomb
XXL
18,7
12,5
8,5
2
053547
Carbon fibre
Kid
16,5
10
8
1,5
053548
Carbon fibre
Adult
18
10,5
8,5
1,5
Ref.
Description
Size
Dimensions(cm)
Print area(cm)
049936
Shin pad sleeves
Kid
11 x 21.8
11 x 21.8
038764
Shin pad sleeves
Adult
11.5 x 23
11.5 x 23
051430
Carry bag
All
12 x 24
----
038765
Moulds
All
12 x 19 x 4.8
----
RECOMMENDED INSTRUCTIONS AND PARAMETERS FOR SUBLIMATING THE SHIN PADS
WITH SHIN PAD HEAT PRESS
Print the design in mirror image using the template, and cut out the edges with a cutter or scissors
Preheat the press to 180°C
Place the paper's printed side against the shin pad and fix it with heat-resistant tape to prevent it from moving
Place protective paper on the lower platen of the press and then the shin pad
Press for 170-190 seconds (S/M sizes) or 180-205 seconds (XXL size), medium-heavy pressure
Using a protective glove, remove the newly printed shin pad
Repeat the process with the other shin pad
Carefully peel off the paper
WITH MOULDS AND A 3D VACUUM OVEN
Preheat the 3D vacuum press with the moulds inside to 200ºC and create a vacuum for 10 minutes
Print the design in mirror image and trim it around the image
Place the paper's printed side against each shin pad and fix it with heat-resistant tape
Once it is preheated, set it to 200ºC for 7-8 minutes
Using protective gloves, place the shin pads on each mould and create a vacuum
Remove any wrinkles that may have formed To do so, press with your fingers from the inside out until the wrinkles have completely disappeared
Close the oven and bake
After baking, open the oven and remove the membrane
Before taking them out from the oven and the moulds, press on the shin pads for 30 seconds to make sure they do not lose their shape
Take the shin pads out of the oven, holding them at the ends to prevent deformation
When they start to cool, remove the paper from the shin pads
Once completely cool, place the self-adhesive foam on each shin pad. Simply peel off the protecting paper from the adhesive and fix it on the back of the shin pad. Press on it for a few minutes until it has fully adhered
The shin pads are now ready to use
RECOMMENDED INSTRUCTIONS AND PARAMETERS FOR SUBLIMATING THE SHIN PAD SLEEVE
Print the design in mirror image
Preheat the press to 180-200ºC
Place the sleeve on the lower platen of the press and the paper's printed side against it. Fix the paper with heat-resistant tape
Press for 40-45 seconds, medium pressure
Using a protective glove, remove the newly printed shin pad sleeve
https://www.brildor.com/en/sublimation-shin-pads-and-accessories26145Sublimation Shin Pads & Accessories<p class="enlace"><a id="know-more"></a> </p>
<h2>More information about thee sublimation shin pads and their accessories</h2>
<p> </p>
<p><strong>INDEX</strong></p>
<p>> <a href="#know-more1">Description</a></p>
<p>> <a href="#know-more8">Things to keep in mind</a></p>
<p>> <a href="#know-more2">Personalisation templates</a></p>
<p>> <a href="#know-more3">Shin pad sleeve</a></p>
<p>> <a href="#know-more9">Carry bag</a></p>
<p>> <a href="#know-more4">Moulds</a></p>
<p>> <a href="#know-more5">Dimensions (approx.)</a></p>
<p>> <a href="#know-more6">Recommended instructions and parameters for sublimating the shin pads</a></p>
<p>> <a href="#know-more7">Recommended instructions and parameters for sublimating the shin pad sleeve</a></p>
<p> </p>
<p class="enlace"><a id="know-more1"></a> </p>
<p><strong>DESCRIPTION</strong></p>
<ul>
<li>Perfect for any sports you would need to protect your lower legs, such as football, hockey, rollerblading, skateboarding, cycling or combat sports.</li>
<li>Can be personalised on the outside using a <strong>shin pad heat press</strong>; can also be sublimated using a <strong>3D sublimation vacuum oven</strong> and the special shin pad <strong>moulds</strong></li>
<li>Different models, all in gloss white: rigid plastic (smooth or honeycomb) and carbon fibre</li>
<li>The carbon fibre shin guards are more resistant and have a higher impact absorption capacity than the plastic ones</li>
<li>Back made of black EVA foam. It makes the shin pads pleasant to wear and reduces shock impacts, providing even better leg protection</li>
</ul>
<p> </p>
<p class="enlace"><a id="know-more8"></a> </p>
<p><strong>THINGS TO KEEP IN MIND</strong></p>
<ul>
<li>The foam should be glued to the shin pad after sublimation</li>
<li>The size between the models varies slightly due to the shape of the shin guards: the smooth and carbon fiber ones have a straight line side finish, while the honeycomb ones end in a curved shape, slightly more arched</li>
<li>Plain and honeycomb shin guards are made of polybutylene terephthalate (PBT), which is a thermoplastic of the polyester polymer family</li>
</ul>
<p> </p>
<p class="enlace"><a id="know-more2"></a> </p>
<p><strong>PERSONALISATION TEMPLATES</strong></p>
<p>To see the template, open the PDF file using Photoshop. Remember to enable the layers:</p>
<ul>
<li><a href="https://tinyurl.com/22qt6yfy" target="_blank" rel="noopener">All shin guards in all sizes (.pdf - 2,34 MB)</a></li>
</ul>
<p> </p>
<p class="enlace"><a id="know-more3"></a> </p>
<p><strong>SHIN PAD SLEEVES (Ref. 044936)<br></strong></p>
<ul>
<li>Shin pad sleeves with a front opening to insert the shin pad and another one to place the leg in</li>
<li>Made of elastic white polyester fabric. With holes for better breathability</li>
<li>Can be sublimated with an all-over print using a flat heat press</li>
<li>Available for kids and adults</li>
<li>No distinction between left and right, which makes them easier to use</li>
<li>Unit of sale: pair of shin pad sleeves</li>
</ul>
<p> </p>
<p class="enlace"><a id="know-more9"></a> </p>
<p><strong>CARRY BAG (REF. 051430)<br></strong></p>
<ul>
<li>Drawstring bag to store a pair of shin pads</li>
<li>Black mesh for breathability and displaying the contents easily</li>
<li>Adjustable drawstring closure</li>
<li>Sold individually</li>
</ul>
<p> </p>
<p class="enlace"><a id="know-more4"></a> </p>
<p><strong>MOULDS (REF. 038765)<br></strong></p>
<ul>
<li>They allow you to personalise your shin pads in a 3D sublimation vacuum oven</li>
<li>Specially made to sublimate shin pads for both kids and adults</li>
<li>Coated with an aluminium layer</li>
<li>Highly pressure resistant</li>
<li>Unit of sale: pair of right/left shin pads</li>
</ul>
<p> </p>
<p class="enlace"><a id="know-more5"></a> </p>
<p><strong>DIMENSIONS <br></strong></p>
<table>
<tbody>
<tr>
<td style="text-align: center;" colspan="7">
<p><strong><img src="{{media url="wysiwyg/Personalizables/Espinilleras-2_1.png"}}" alt="Shin Pads dimensions" width="299" height="298"><br></strong></p>
</td>
</tr>
<tr>
<td style="text-align: center;"><strong>Ref.</strong></td>
<td style="text-align: center;"><strong>Shin pad<br>model<br></strong></td>
<td style="text-align: center;"><strong>Size<br></strong></td>
<td style="text-align: center;"><strong>A </strong><br><strong>(cm)</strong></td>
<td style="text-align: center;"><strong>B</strong><br><strong>(cm)</strong></td>
<td style="text-align: center;">
<p><strong>C</strong><br><strong>(cm)</strong></p>
</td>
<td style="text-align: center;">
<p><strong>Thickness</strong><br><strong>(cm)</strong></p>
</td>
</tr>
<tr>
<td style="text-align: center;"><strong>038763</strong></td>
<td style="text-align: center;">Smooth <strong><br></strong></td>
<td style="text-align: center;">Kid</td>
<td style="text-align: center;"><span class="azul-negrita">14,6</span></td>
<td style="text-align: center;"><span class="azul-negrita">10,2</span></td>
<td style="text-align: center;"><span class="azul-negrita">8</span></td>
<td style="text-align: center;"><span class="azul-negrita">2</span></td>
</tr>
<tr>
<td style="text-align: center;"><strong>038762</strong></td>
<td style="text-align: center;">Smooth</td>
<td style="text-align: center;">Adult</td>
<td style="text-align: center;"><span class="azul-negrita">17,1</span></td>
<td style="text-align: center;"><span class="azul-negrita">11,3</span></td>
<td style="text-align: center;"><span class="azul-negrita">8,5</span></td>
<td style="text-align: center;"><span class="azul-negrita">2</span></td>
</tr>
<tr>
<td style="text-align: center;"><strong>039396</strong></td>
<td style="text-align: center;">Smooth</td>
<td style="text-align: center;">XXL</td>
<td style="text-align: center;"><span class="azul-negrita">18,9</span></td>
<td style="text-align: center;"><span class="azul-negrita">12,3</span></td>
<td style="text-align: center;"><span class="azul-negrita">9</span></td>
<td style="text-align: center;"><span class="azul-negrita">2</span></td>
</tr>
<tr>
<td style="text-align: center;"><strong>040925</strong></td>
<td style="text-align: center;">Honeycomb</td>
<td style="text-align: center;">Kid</td>
<td style="text-align: center;"><span class="azul-negrita">14,3</span></td>
<td style="text-align: center;"><span class="azul-negrita">9,6</span></td>
<td style="text-align: center;"><span class="azul-negrita">6,9</span></td>
<td style="text-align: center;"><span class="azul-negrita">2</span></td>
</tr>
<tr>
<td style="text-align: center;"><strong>040924</strong></td>
<td style="text-align: center;">Honeycomb</td>
<td style="text-align: center;">Adult</td>
<td style="text-align: center;"><span class="azul-negrita">16,7</span></td>
<td style="text-align: center;"><span class="azul-negrita">11,1</span></td>
<td style="text-align: center;"><span class="azul-negrita">7,9</span></td>
<td style="text-align: center;"><span class="azul-negrita">2</span></td>
</tr>
<tr>
<td style="text-align: center;"><strong>040926</strong></td>
<td style="text-align: center;">Honeycomb</td>
<td style="text-align: center;">XXL</td>
<td style="text-align: center;"><span class="azul-negrita">18,7</span></td>
<td style="text-align: center;"><span class="azul-negrita">12,5</span></td>
<td style="text-align: center;"><span class="azul-negrita">8,5</span></td>
<td style="text-align: center;"><span class="azul-negrita">2</span></td>
</tr>
<tr>
<td style="text-align: center;"><strong>053547</strong></td>
<td style="text-align: center;">Carbon fibre</td>
<td style="text-align: center;">Kid</td>
<td style="text-align: center;"><span class="azul-negrita"><strong>16,5</strong></span></td>
<td style="text-align: center;"><span class="azul-negrita"><strong>10</strong></span></td>
<td style="text-align: center;"><span class="azul-negrita"><strong>8</strong></span></td>
<td style="text-align: center;"><span class="azul-negrita"><strong>1,5</strong></span></td>
</tr>
<tr>
<td style="text-align: center;"><strong>053548</strong></td>
<td style="text-align: center;">Carbon fibre</td>
<td style="text-align: center;">Adult</td>
<td style="text-align: center;"><span class="azul-negrita"><strong>18</strong></span></td>
<td style="text-align: center;"><span class="azul-negrita"><strong>10,5</strong></span></td>
<td style="text-align: center;"><span class="azul-negrita"><strong>8,5</strong></span></td>
<td style="text-align: center;"><span class="azul-negrita"><strong>1,5</strong></span></td>
</tr>
</tbody>
</table>
<p> </p>
<table>
<tbody>
<tr>
<td style="text-align: center;"><strong>Ref.</strong></td>
<td style="text-align: center;"><strong> Description</strong></td>
<td style="text-align: center;"><strong>Size</strong></td>
<td style="text-align: center;"><strong>Dimensions</strong> <strong>(cm)</strong></td>
<td style="text-align: center;"><strong>Print area</strong> <strong>(cm)</strong></td>
</tr>
<tr>
<td style="text-align: center;"><strong>049936</strong></td>
<td style="text-align: center;">Shin pad sleeves</td>
<td style="text-align: center;">Kid</td>
<td style="text-align: center;"><span class="azul-negrita">11 x 21.8</span></td>
<td style="text-align: center;"><span class="azul-negrita">11 x 21.8</span></td>
</tr>
<tr>
<td style="text-align: center;"><strong>038764</strong></td>
<td style="text-align: center;">Shin pad sleeves</td>
<td style="text-align: center;">Adult</td>
<td style="text-align: center;"><span class="azul-negrita">11.5 x 23</span></td>
<td style="text-align: center;"><span class="azul-negrita">11.5 x 23</span></td>
</tr>
<tr>
<td style="text-align: center;"><strong>051430<br></strong></td>
<td style="text-align: center;">Carry bag</td>
<td style="text-align: center;">All</td>
<td style="text-align: center;"><span class="azul-negrita"> 12 x 24<br></span></td>
<td style="text-align: center;">----</td>
</tr>
<tr>
<td style="text-align: center;"><strong>038765</strong></td>
<td style="text-align: center;">Moulds</td>
<td style="text-align: center;">All</td>
<td style="text-align: center;"><span class="azul-negrita">12 x 19 x 4.8</span></td>
<td style="text-align: center;">----</td>
</tr>
</tbody>
</table>
<p> </p>
<p class="enlace"><a id="know-more6"></a> </p>

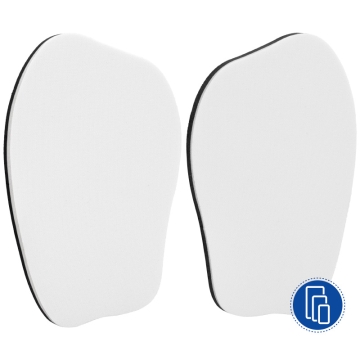

<p><strong>RECOMMENDED INSTRUCTIONS AND PARAMETERS FOR SUBLIMATING THE SHIN PADS</strong></p>

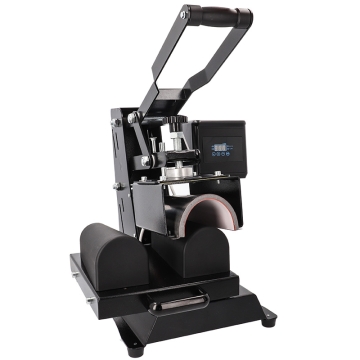

<p><strong>WITH SHIN PAD HEAT PRESS</strong></p>
<ul>
<li>Print the design in <strong>mirror image</strong> using the template, and cut out the edges with a cutter or scissors</li>
<li>Preheat the press to <span class="azul-negrita">180°C</span></li>
<li>Place the paper's printed side against the shin pad and fix it with heat-resistant tape to prevent it from moving</li>
<li>Place protective paper on the lower platen of the press and then the shin pad</li>
<li>Press for <span class="azul-negrita">170-190 seconds</span> (S/M sizes) or <span class="azul-negrita">180-205 seconds</span> (XXL size), <strong>medium-heavy pressure</strong><span class="azul-negrita"><br></span></li>
<li>Using a protective glove, remove the newly printed shin pad</li>
<li>Repeat the process with the other shin pad</li>
<li>Carefully peel off the paper</li>
</ul>

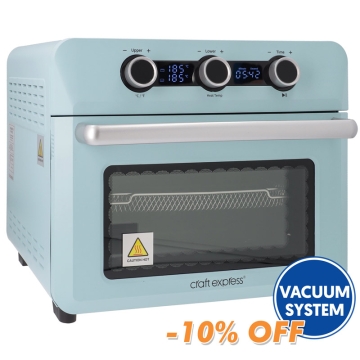

<p><strong>WITH MOULDS AND A 3D VACUUM OVEN <br></strong></p>
<ul>
<li>Preheat the 3D vacuum press with the moulds inside to <span class="azul-negrita">200ºC </span>and <strong>create a vacuum </strong>for <span class="azul-negrita">10 minutes</span> </li>
<li>Print the design in <strong>mirror image</strong> and trim it around the image</li>
<li>Place the paper's printed side against each shin pad and fix it with heat-resistant tape</li>
<li>Once it is preheated, set it to <span class="azul-negrita">200ºC </span>for <span class="azul-negrita">7-8 minutes</span></li>
<li>Using protective gloves, place the shin pads on each mould and <strong>create a vacuum</strong></li>
<li>Remove any wrinkles that may have formed To do so, press with your fingers from the inside out until the wrinkles have completely disappeared</li>
<li>Close the oven and bake</li>
<li>After baking, open the oven and remove the membrane</li>
<li>Before taking them out from the oven and the moulds, press on the shin pads for <span class="azul-negrita">30 seconds</span> to make sure they do not lose their shape</li>
<li>Take the shin pads out of the oven, holding them at the ends to prevent deformation</li>
<li>When they start to cool, remove the paper from the shin pads</li>
<li>Once completely cool, place the self-adhesive foam on each shin pad. Simply peel off the protecting paper from the adhesive and fix it on the back of the shin pad. Press on it for a few minutes until it has fully adhered</li>
<li>The shin pads are now ready to use</li>
</ul>
<p> </p>
<p class="enlace"><a id="know-more7"></a> </p>
<p><strong>RECOMMENDED INSTRUCTIONS AND PARAMETERS FOR SUBLIMATING THE SHIN PAD SLEEVE</strong></p>
<ul>
<li>Print the design in <strong>mirror image</strong></li>
<li>Preheat the press to <span class="azul-negrita">180-200ºC</span></li>
<li>Place the sleeve on the lower platen of the press and the paper's printed side against it. Fix the paper with heat-resistant tape</li>
<li>Press for <span class="azul-negrita">40-45 seconds</span>, <strong>medium pressure</strong></li>
<li>Using a <strong>protective glove</strong>, remove the newly printed shin pad sleeve</li>
<li>Carefully peel off the paper</li>
</ul>
<p> </p>https://www.brildor.com/media/catalog/product/e/s/espinilleras-deportivas-para-sublimacion-y-sus-accesorios.jpg1.29instock01.29000https://www.brildor.com/media/catalog/product/e/s/espinilleras-deportivas-para-sublimacion-y-sus-accesorios.jpg23713241232592850326510395119053171/Blanks/Blanks/Sports/Blanks/Father's Day/ World Cup 2022/Blanks/Father's Day/Sports/Productos destacados EN/Productos destacados/Productos destacados FR2021-07-24T06:08:00+0000
