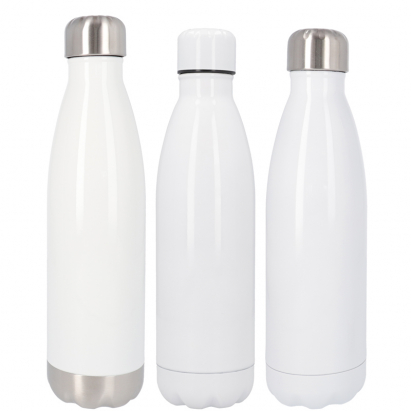

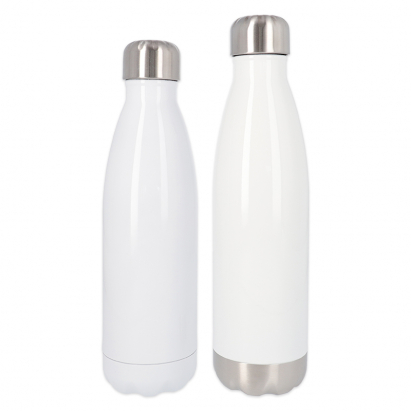

Double-walled vacuum system to improve thermal insulation
Reusable insulated bottle. It is the perfect alternative to plastic containers
Dishwasher safe
White coating with gloss finish
High-quality stainless steel, type 301 on the outside and type 201 on the inside
Anti-drip screw cap with a rubber seal that makes the bottle leak-proof. Made of 304 stainless steel with BPA-Free plastic inside
They are presented in a white box, except Ref. 054066, which is presented in a brown box
THINGS TO KEEP IN MIND
If you are using a heater larger than 10/11oz, we recommend wrapping the thermos in silicone foil to increase its diameter and make it fit snugly. In addition, the use of the foil allows for a better temperature distribution
or with a sublimation oven using the Ref. 034180 clamp, silicone sheets or heat shrink bags
Due to the irregular shape of the bottle, printing it entirely can be challenging. To make it easier, it is recommended to only sublimate the cylindrical body
DIMENSIONS
Reference no.
054066
037028
040559
Capacity (oz ≈ ml)
17 ≈ 500
17≈ 500
17≈ 500
Cap colour
White
Silver
Silver
Base colour
White
White
Silver
Bottle (cm)
Ø6,7 x 26
Ø6,7 x 26
Ø6,7 x 27
Cap (cm)
Ø4 x 5
Ø4 x 5
Ø4 x 5
Opening (cm)
Ø3 x 2
Ø3 x 2
Ø3,4 x 2
Print area (cm)
22,5 x 11
22,5 x 11
22,5 x 12
Box (cm)
7,5 x 26,4 x 7,5
7,5 x 27,5 x 7,5
7,5 x 28,5 x 7,5
RECOMMENDED INSTRUCTIONS AND PARAMETERS FOR SUBLIMATION PRINTING
Parameters provided as a guideline. It is recommended to carry out preliminary tests in order to make the necessary adjustments before starting production.
WITH A MUG HEAT PRESS
Print the design in mirror image
Preheat the press to 200°C
Remove the cap from the bottle
Place the bottle in the press with the paper's printed side against it. Fix with heat-resistant tape
Press for 35 seconds, medium pressure.
Take out the thermos flask with the help of a protective glove
Carefully peel off the paper
WITH A SUBLIMATION OVEN
Print the design in mirror image
Preheat the oven to 180-200ºC
Remove the cap from the bottle
Hold the paper's printed side against the bottle and fix it using heat-resistant tape
Place and adjust the wrap around it, or insert the thermos into a heat shrink bag and shrink with a heat gun. You can also use a silicone sheet
Sublimate in the oven for 6-7 minutes
Using a protective glove, remove the wrap, the silicone sheet, or the bag, depending on the accessory you used
https://www.brildor.com/en/sublimation-water-bottle-insulated-stainless-steel-white27659Sublimation Stainless Steel Water Bottles<p class="enlace"><a id="know-more"></a> </p>
<h2>More information about the Sublimation Stainless Steel Water Bottles</h2>
<p> </p>
<p><strong>INDEX</strong></p>
<p>> <a href="#know-more1">Description</a></p>
<p>> <a href="#know-more2">Things to keep in mind</a></p>
<p>> <a href="#know-more3">Dimensions</a></p>
<p>> <a href="#know-more4">Recommended instructions and parameters for sublimation printing</a></p>
<p> </p>
<p class="enlace"><a id="know-more1"></a> </p>
<p><strong>DESCRIPTION</strong></p>
<ul>
<li>Double-walled vacuum system to improve thermal insulation</li>
<li>Reusable insulated bottle. It is the perfect alternative to plastic containers</li>
<li>Dishwasher safe</li>
<li>White coating with gloss finish</li>
<li>High-quality stainless steel, type 301 on the outside and type 201 on the inside</li>
<li>Anti-drip screw cap with a rubber seal that makes the bottle leak-proof. Made of 304 stainless steel with BPA-Free plastic inside</li>
<li>They are presented in a white box, except Ref. 054066, which is presented in a brown box</li>
</ul>
<p> </p>
<p class="enlace"><a id="know-more2"></a> </p>
<p><strong>THINGS TO KEEP IN MIND</strong></p>
<ul>
<li>If you are using a heater larger than <span class="azul-negrita">10/11oz</span>, we recommend wrapping the thermos in silicone foil to increase its diameter and make it fit snugly. In addition, the use of the foil allows for a better temperature distribution</li>
<li>or with a sublimation oven using the Ref. 034180 clamp, silicone sheets or heat shrink bags</li>
<li>Due to the irregular shape of the bottle, printing it entirely can be challenging. To make it easier, it is recommended to only sublimate the cylindrical body</li>
</ul>
<p> </p>
<p class="enlace"><a id="know-more3"></a> </p>
<p><strong>DIMENSIONS<br></strong></p>
<table>
<tbody>
<tr>
<td><strong>Reference no.</strong></td>
<td style="text-align: center;"><strong>054066<br></strong></td>
<td style="text-align: center;"><strong>037028</strong></td>
<td style="text-align: center;"><strong>040559</strong></td>
</tr>
<tr>
<td><strong>Capacity (oz ≈ ml)<br></strong></td>
<td style="text-align: center;"><span class="azul-negrita">17 ≈ 500 </span></td>
<td style="text-align: center;"><span class="azul-negrita">17</span> <span class="azul-negrita"><span class="azul-negrita">≈</span> 500 <br></span></td>
<td style="text-align: center;"><span class="azul-negrita">17</span> <span class="azul-negrita">≈ 500 </span></td>
</tr>
<tr>
<td><strong>Cap colour<br></strong></td>
<td style="text-align: center;">White</td>
<td style="text-align: center;">Silver</td>
<td style="text-align: center;">Silver</td>
</tr>
<tr>
<td><strong>Base colour<br></strong></td>
<td style="text-align: center;">White</td>
<td style="text-align: center;">White</td>
<td style="text-align: center;">Silver</td>
</tr>
<tr>
<td><strong>Bottle (cm)</strong></td>
<td style="text-align: center;"><span class="azul-negrita">Ø6,7 x 26</span></td>
<td style="text-align: center;"><span class="azul-negrita">Ø6,7 x 26</span></td>
<td style="text-align: center;"><span class="azul-negrita">Ø6,7 x 27</span></td>
</tr>
<tr>
<td><strong>Cap (cm)<br></strong></td>
<td style="text-align: center;"><span class="azul-negrita">Ø4 x 5</span></td>
<td style="text-align: center;"><span class="azul-negrita">Ø4 x 5</span></td>
<td style="text-align: center;"><span class="azul-negrita">Ø4 x 5</span></td>
</tr>
<tr>
<td><strong>Opening (cm)<br></strong></td>
<td style="text-align: center;"><span class="azul-negrita">Ø3 x 2</span></td>
<td style="text-align: center;"><span class="azul-negrita">Ø3 x 2</span></td>
<td style="text-align: center;"><span class="azul-negrita">Ø3,4 x 2</span></td>
</tr>
<tr>
<td><strong><strong>Print area (cm)</strong></strong></td>
<td style="text-align: center;"><span class="azul-negrita">22,5 x 11</span></td>
<td style="text-align: center;"><span class="azul-negrita">22,5 x 11</span></td>
<td style="text-align: center;"><span class="azul-negrita">22,5 x 12</span></td>
</tr>
<tr>
<td><strong>Box (cm)<br></strong></td>
<td style="text-align: center;"><span class="azul-negrita">7,5 x 26,4 x 7,5</span></td>
<td style="text-align: center;"><span class="azul-negrita">7,5 x 27,5 x 7,5</span></td>
<td style="text-align: center;"><span class="azul-negrita">7,5 x 28,5 x 7,5</span></td>
</tr>
</tbody>
</table>
<p> </p>
<p class="enlace"><a id="know-more4"></a> </p>
<p><strong>RECOMMENDED INSTRUCTIONS AND PARAMETERS FOR SUBLIMATION PRINTING</strong></p>
<p>Parameters provided as a <strong>guideline</strong>. It is recommended to carry out preliminary tests in order to make the necessary adjustments before starting production.</p>
<p><strong>WITH A MUG HEAT PRESS</strong></p>
<ul>
<li>Print the design in <strong>mirror image</strong></li>
<li>Preheat the press to <span class="azul-negrita">200°C</span></li>
<li>Remove the cap from the bottle</li>
<li>Place the bottle in the press with the paper's printed side against it. Fix with heat-resistant tape</li>
<li>Press for <span class="azul-negrita">35 seconds</span>, <strong>medium</strong> pressure.</li>
<li>Take out the thermos flask with the help of a protective glove</li>
<li>Carefully peel off the paper</li>
</ul>
<p><strong>WITH A SUBLIMATION OVEN<br></strong></p>
<ul>
<li>Print the design in <strong>mirror image</strong></li>
<li>Preheat the oven to <span class="azul-negrita">180-200ºC</span></li>
<li>Remove the cap from the bottle</li>
<li>Hold the paper's printed side against the bottle and fix it using heat-resistant tape</li>
<li>Place and adjust the wrap around it, or insert the thermos into a heat shrink bag and shrink with a heat gun. You can also use a silicone sheet</li>
<li>Sublimate in the oven for<span class="azul-negrita"> 6-7 minutes</span></li>
<li>Using a protective glove, remove the wrap, the silicone sheet, or the bag, depending on the accessory you used</li>
<li>Carefully remove the paper from the water bottle</li>
</ul>
