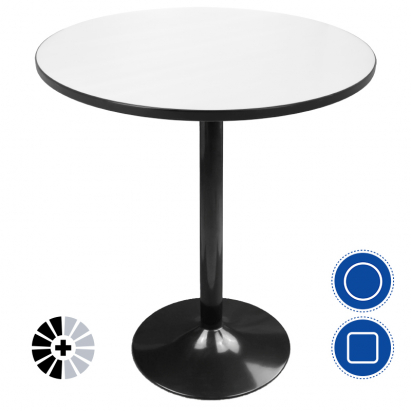

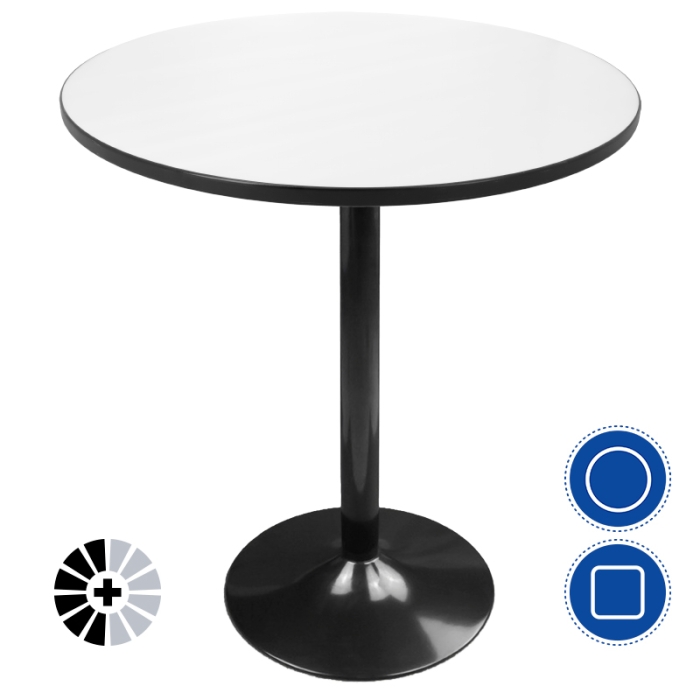

Tables with Sublimables Boards
Customisable MDF wooden table tops by dye sublimation printing and aluminium feet. To create tables of different shapes and heights.
More information
Our availability is not enough?
Let us know how much you need
I WANT MORE
More information about Tables with Sublimables Boards
INDEX
> Description
> Tips and tricks
> Things to keep in mind
> Dimensions
> Recommended instructions and parameters for sublimation printing
DESCRIPTION
Well edged boards with 2 cm thickness
White sublimatable side with glossy finish. Black edges
Aluminium feet of different heights for table tops, black or chrome-plated
TIPS AND TRICKS
Customise tables for bars, pubs or restaurants with your logo, different themes or board games
Create low tables for lounge or children's tables personalised with photos, names or cartoons
THINGS TO KEEP IN MIND
The sublimatable side of the table tops has a plastic film to protect it. It must be removed before sublimating
The feet have 4 holes in the top base to assemble the table top with screws
DIMENSIONS
Boards
Reference
Shape
Dimensions (cm)
Area printable (cm)
Thickness (cm)
Weight
(kg)
Templates
035438
Square
65 x 65
60 x 60
2
5,42
60x60cm (.eps - 5,30 MB)
60x60cm (.jpg - 1,50 MB)
035439
Square
75 x 75
70 x 70
2
6,15
75x75cm (.eps - 5,30 MB) 75x75cm (.jpg - 1,81 MB)
035441
Round
Ø65
Ø60
2
5,84
Ø60cm (.eps - 5,30 MB) Ø 60cm (.jpg - 2,26 MB)
035440
Round
Ø75
Ø70
2
6,74
Ø 75cm (.eps - 5,30 MB) Ø 75cm (.jpg - 2,74 MB)
Feet
Reference
Colour
Height (cm)
Base (cm)
Tube (cm)
Weight (g)
051296
Chrome
73
Ø45
Ø6
9
051298
Black
73
Ø45
Ø6
9
051297
Chrome
110
Ø45
Ø6
13
051299
Black
110
Ø45
Ø6
13
RECOMMENDED INSTRUCTIONS AND PARAMETERS FOR SUBLIMATION PRINTING
Parameters indicated as for guidance only . It is recommended to carry out preliminary tests in order to make the necessary adjustments before starting production.
Print the design in mode mirror
Preheat the press to 200 ºC
Place the board on the base of the plate and the printed part of the paper on the board
Cover with protective paper
Close the press at medium-high pressure for 70-80 seconds
With the help of a protective glove, remove the freshly printed board
Carefully remove the paper
