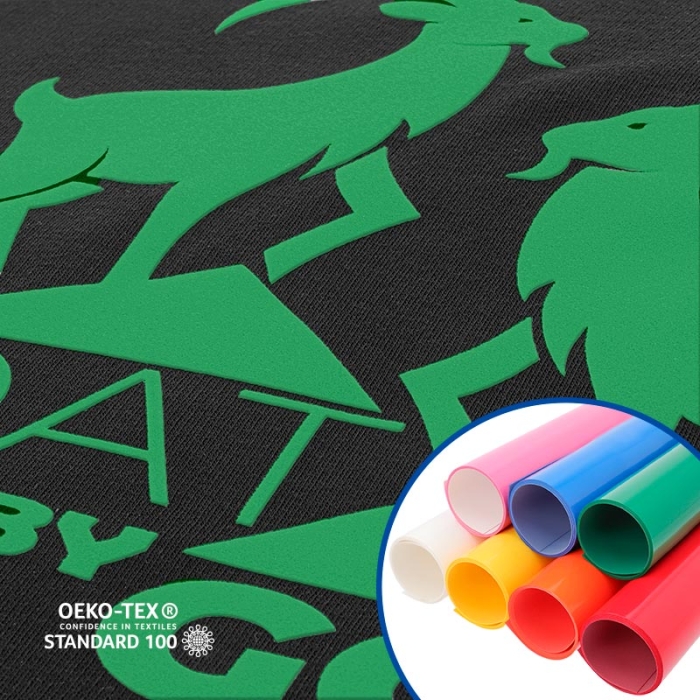

TUBITHERM is a viscose-rayon film for textile transfer.
The liner is a self-adhesivePET (polyester) film that acts as a carrier sheet
The 10-metre rolls have a Ø7.5 cm cardboard core
The raw materials are ecologically inert, do not contain PVC, plasticizers or heavy metals and are certified in accordance with Oeko-Tex Standard 100 Class I
When used under normal conditions, this product does not generate or release any dangerous substances or hazardous chemicals. This is a non-hazardous product in accordance with the current GefStoffV and EU criteria. Therefore it is not necessary to prepare a Material Safety Data Sheet for this product. The Safety Data Sheet serves only to comply with the regulation to supply information in accordance with REACH Regulation (EC) No. 1907/2006 and is available on request. This is not a hazardous product with regards to transportation legislation; neither does it contain substances that are hazardous to water within the meaning of the federal water act. After use, dispose of the waste product in accordance with the local/national authorities.
https://www.brildor.com/en/tubitherm-flock-heat-transfer-vinyl-poli-tape20045Flock Heat Transfer Vinyl - Tubitherm from Poli-Tape<p class="enlace"><a id="know-more"></a> </p>
<h2 class="enlace">More information about the Flock Heat Transfer Vinyl - Tubitherm from Poli-Tape</h2>
<p> </p>
<p><strong>INDEX</strong></p>
<p>> <a href="#know-more1">Description</a></p>
<p>> <a href="#know-more11">Colour reference list</a></p>
<p>> <a href="#know-more0"><span style="font-weight: 400;">Technical characteristics</span></a></p>
<p>> <a href="#know-more2">Transfer parameters</a></p>
<p>> <a href="#know-more3">Application instructions</a></p>
<p>> <a href="#know-more4">Wash resistance</a></p>
<p>> <a href="#know-more6">Weight</a></p>
<p>> <a href="#know-more8">Colour card</a></p>
<p>> <a href="#know-more9">Data sheet</a></p>
<p>> <a href="#know-more10">Safety data sheet</a></p>
<p> </p>
<p class="enlace"><a id="know-more1"></a> </p>
<p><strong>DESCRIPTION</strong></p>
<p>TUBITHERM is a <strong>viscose-rayon film</strong> for textile transfer.</p>
<ul>
<li>The <strong>liner</strong> is a <strong>self-adhesive</strong> <strong>PET (polyester) film</strong> that acts as a carrier sheet</li>
<li>The <strong>10-metre</strong> rolls have a <span class="azul-negrita">Ø7.5 cm</span> cardboard core</li>
<li>The raw materials are ecologically inert, do not contain PVC, plasticizers or heavy metals and are certified in accordance with <strong>Oeko-Tex Standard 100 Class I</strong></li>
<li>Made in Germany by Poli-Tape</li>
</ul>
<p> </p>
<p class="enlace"><a id="know-more11"></a> </p>
<p><strong>COLOUR REFERENCE LIST<br></strong></p>
<p>Find Pantone, HEX, RGB, CMYK and RAL equivalents:</p>
<p><a title="Colour reference list for Tubitherm" href="https://www.brildor.com/media/upload/descargas/POLI_TAPE_Colour_Codes_POLI-FLEX_TUBITHERM_FLOCK.pdf" target="_blank" rel="nofollow noopener">Colour reference list for Tubitherm (pdf - 0.51 MB)</a></p>
<p> </p>
<p class="enlace"><a id="know-more0"></a> </p>
<p><strong>TECHNICAL CHARACTERISTICS</strong></p>
<table>
<tbody>
<tr>
<td><strong>Vinyl</strong></td>
<td>Viscose-rayon</td>
</tr>
<tr>
<td><strong>Thickness (µ)</strong></td>
<td>500</td>
</tr>
<tr>
<td><strong>Support or liner</strong></td>
<td>PET film</td>
</tr>
<tr>
<td><strong>Includes transporter</strong></td>
<td>Yes</td>
</tr>
<tr>
<td><strong>Fabrics</strong></td>
<td>Cotton, cotton-polyester and polyester-acrylic blends</td>
</tr>
<tr>
<td><strong>Cutting blade for vinyl cutter</strong></td>
<td>60º</td>
</tr>
<tr>
<td><strong>Laser cutting</strong></td>
<td>Yes</td>
</tr>
<tr>
<td><strong>Discard</strong></td>
<td>Hot/Tibium</td>
</tr>
</tbody>
</table>
<p> </p>
<p class="enlace"><a id="know-more2"></a> </p>
<p><strong>TRANSFER PARAMETERS<br></strong></p>
<ul>
<li>Knife blade: <span class="azul-negrita">60º</span></li>
<li>Temperature: <span class="azul-negrita">160ºC</span></li>
<li>Time: <span class="azul-negrita">15 seconds</span></li>
<li>Pressure: <span class="azul-negrita">2.0 bar</span> [medium pressure]</li>
</ul>
<p> </p>
<p class="enlace"><a id="know-more3"></a> </p>
<p><strong>APPLICATION INSTRUCTIONS<br></strong></p>
<ul>
<li>Cut your design in <strong>mirror image</strong> with a cutter plotter</li>
<li>Weed out your excess vinyl</li>
<li>Preheat the press to <span class="azul-negrita">160ºC</span></li>
<li>Place the garment on the press and pre-press for <span class="azul-negrita">4-5 seconds</span> to remove wrinkles and moisture from the fabric</li>
<li>Position the vinyl over the garment and cover with protective paper</li>
<li>Press for <span class="azul-negrita">15 seconds</span>, medium pressure</li>
<li><strong>Warm peel</strong> the liner</li>
</ul>
<p> </p>
<p class="enlace"><a id="know-more4"></a> </p>
<p><strong>WASH RESISTANCE<br></strong></p>
<ul>
<li>Washing resistance: <span class="azul-negrita">60 ºC</span> max</li>
<li>Wash inside out<span class="azul-negrita"><br></span></li>
<li>Suitable for tumble drying and dry cleaning</li>
</ul>
<p> </p>
<p class="enlace"><a id="know-more6"></a> </p>
<p><strong>WEIGHTS</strong></p>
<table>
<tbody>
<tr>
<td style="text-align: left;">Roll</td>
<td style="text-align: center;"><span class="azul-negrita">25 x 1</span></td>
<td style="text-align: center;"><span class="azul-negrita">50 x 1</span></td>
<td style="text-align: center;"><span class="azul-negrita">50 x 10</span></td>
</tr>
<tr>
<td style="text-align: left;">Weight (kg)</td>
<td style="text-align: center;"><span class="azul-negrita">0.106</span></td>
<td style="text-align: center;"><span class="azul-negrita">0.22</span></td>
<td style="text-align: center;"><span class="azul-negrita">2.5</span></td>
</tr>
</tbody>
</table>
<p> </p>
<p class="enlace"><a id="know-more8"></a> </p>
<p><strong>COLOUR CARD<br></strong></p>
<p><a title="Colour card for Tubitherm" href="https://www.brildor.com/media/upload/descargas/Carta_de_colores_vinilo_Tubitherm.pdf" target="_blank" rel="nofollow noopener">Colour card for Tubitherm HTV (.pdf - 857 kB)</a></p>
<p> </p>
<p class="enlace"><a id="know-more9"></a> </p>
<p><strong>DATA SHEET</strong></p>
<p><a title="Data sheet for Tubitherm HTV" href="https://www.brildor.com/media/upload/downloads/Data_sheet_Tubitherm.pdf" target="_blank" rel="nofollow noopener">Data sheet for Tubitherm HTV (.pdf - 636 kB)</a></p>
<p> </p>
<p class="enlace"><a id="know-more10"></a> </p>
<p><strong>SAFETY DATA SHEET</strong></p>
<p>When used under normal conditions, this product does not generate or release any dangerous substances or hazardous chemicals. This is a non-hazardous product in accordance with the current GefStoffV and EU criteria. Therefore it is not necessary to prepare a Material Safety Data Sheet for this product. The Safety Data Sheet serves only to comply with the regulation to supply information in accordance with REACH Regulation (EC) No. 1907/2006 and is available on request. This is not a hazardous product with regards to transportation legislation; neither does it contain substances that are hazardous to water within the meaning of the federal water act. After use, dispose of the waste product in accordance with the local/national authorities.</p>https://www.brildor.com/media/catalog/product/v/i/vinilo-textil-flock-poli-tape-tubitherm-d1.jpg5.99instock05.99000https://www.brildor.com/media/catalog/product/v/i/vinilo-textil-flock-poli-tape-tubitherm-d1.jpg18155198992784828042/Vinyl/Vinyl/Cutting Heat Transfer Vinyl/Blanks/Blanks/Materials for Laser/Blanks/Materials for Laser/Vinyl2021-07-24T06:04:14+0000
